Outline
| NMB Parts No. | DDA-2115DD |
|---|---|
| Metric or Inch | Metric |
| ISO/JIS | - |
| Material of Rings | Stainless Steel |
| Ring Type | [Radial] Standard |

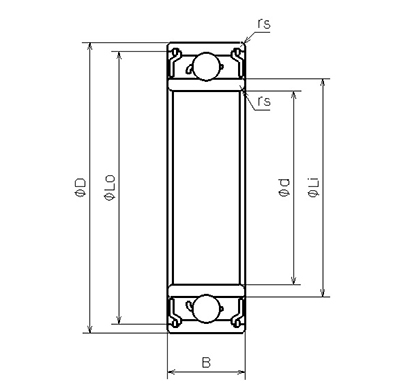

| Inner Diameter(d) [mm] |
15.000 |
| Outer Diameter(D) [mm] |
21.000 |
| Width(B) [mm] |
4.000 |
| Chamfer(rs min) [mm] |
0.150 |
| Reference Diameter Outer(Lo) [mm] |
19.720 |
| Reference Diameter Inner(Li) [mm] |
16.800 |
| Ball Size(DW) [mm] |
1.5875 |
| Ball Complement(Z) | 14 |
| Dynamic Load Rating(Cr) [N] |
938 |
| Static Load Rating(Cor) [N] |
581 |
| Inner Diameter(d) [in] |
0.5906 |
| Outer Diameter(D) [in] |
0.7874 |
