Features
■Various coil sizes
■Multi-frequency technology
■Tracking technology
■Automatic learn function
■Registers up to 200 products
■Protection class IP65(Option：IP69k)
Specification
| Specification name | Specification contents |
|---|---|
| Coil Size(W) | 225㎜~800㎜ |
| Coil Size(H) | 90㎜~400㎜ |
| Belt width | 100㎜~750㎜ |
| Product height | 50㎜~360㎜ |
| Belt speed | 0.11m/s～1.92m/2 |
| Reject method | Conveyor stop, discharge equipment (Option) |
| Transport amount | 25kg～50kg |
| Number of items in memory | 50 (Option up to 200) |
| Display method | 5.7inch color touch screen |
| Power supply | Search coil: :AC85～264V(±10%/-15%);47～63Hz (Single-phase) Belt conveyor::1)230/400V(+10%/-15%);50/60Hz (Three-phase) 2)AC230V(+10%/-15%);50/60Hz (Single-Phase) |
| Power consumption | 500W |
| Operating environment | -10℃～+45℃ |
| Product temperature | -20℃～+45℃ |
| Protection class | IP65(Option:IP69k) |
| Data interface | TCP-IP, RS232, RS422, CAN bus, フィールドバス, Profibus |
| Options | USBプリント, 信号灯, ブザー等 |
Table of P/N
| Parts No. | Catalog data |
|---|---|
| Vistus-C | Vistus-C_en.pdf |
Features
■Multi-frequency
technologyDetection sensitivity increases according to the search coil frequency, along with product effect. Vistus series realizes high sensitivity for any product, through automatic configuration of the optimal frequency for the product within a wide frequency range.
■Automatic learn function
The 5.7” color touch panel makes operation simple, enabling optimal setting to be made automatically just by running the product through a few times in accordance with the screen instruction.
■Day-to-day management
Sensitivity testing can be performed as needed, when switching between products, by inspection quality, or at fixed intervals. Test results and setting change logs are saved for confirmation at any time.
■Cleanliness
Stainless steel specifications conform to IP65 as standard. IP69k conforming products are also available as an option, following high-temperature/high-pressure water washing.

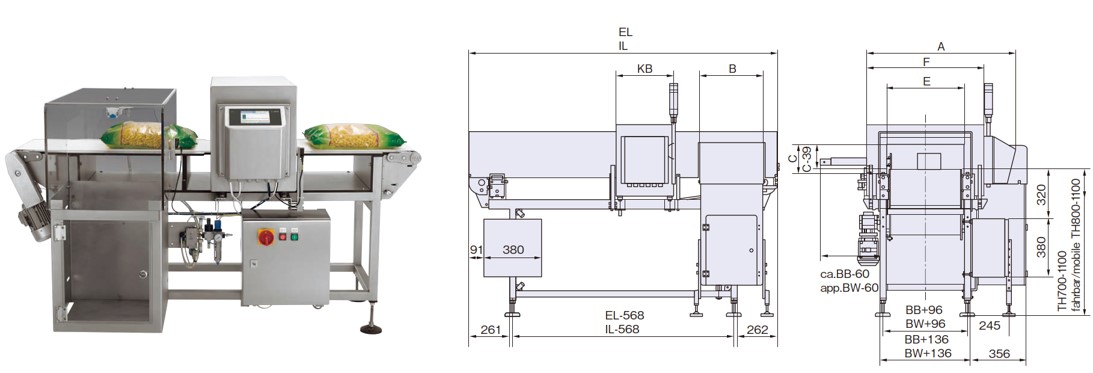

External view
