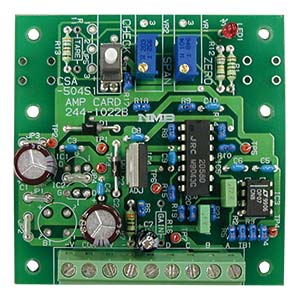

PCB type Transmitter CSA-504S-1B

Discontinued Products

The transmitter is an amplifier that amplifies the signal from the strain gage applied transducers (load cell, pressure sensor, torque transducer, and diplacement sensor, etc.), and outputs the current or the voltage in the analogue. These transmittor excels in the response, and shape and the function are different according to the usage.

Features

・Printed circuit board type
1CH (CSA-504S-1B)
4CH (CSA-504SB)

Alternative

PCB type Transmitter CSA-521

scroll

Specification name	Specification contents
Bridge power supply	10VDC±0.1 VDC
Sensitivity	10 V output at theinput of 1 mV/V
Sensitivity adjustable range	1 000 times Adjustable from 1/1 times to 0.9 times
Input range	0.3 mV/V to 3 mV/V
Output	±10 V Load resistance2 k-ohm or more
Zero adjustment range	Tare compensation Adjustable by internal fixed resistance Zero adjustment Adjustable ±0.1 mV/V by trimmer
Non-linearity (Display and voltage output)	0.05%F.S.
Temperature efficient	Zero point within ±2 uV/℃ (Input conversion), Sensitivity within ±0.05 %F.S./℃
Frequency response range	10 Hz (±3 dB)
Operating temp. / humidity range	Temperature 0 ℃ to 50 ℃, Humidity 85%RH or less (Non condensing)
Power supply	±DC15V±0.75 V 150 mA (When summing four transducers in all channels.)
Outline dimensions (WxHxD)	70 mm x 70mm x 20 mm (Excludes protruding parts.)
Weight	Approx. 0.2 kg
