Miniature & small ball bearings Deep groove ball bearings with locating snap ring
RNR-2210X9KKSD21
Outline
| NMB Parts No. | RNR-2210X9KKSD21 |
|---|---|
| Metric or Inch | Metric |
| ISO/JIS | 6900ZZNR |
| Material of Rings | Chromium Steel |
| Ring Type | [Radial] Stop ring |

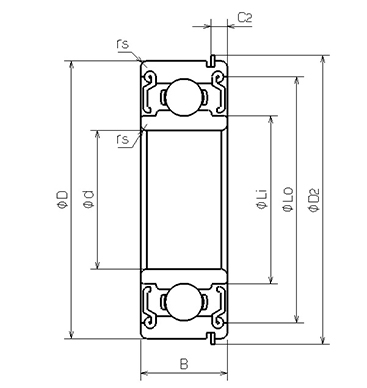

| Inner Diameter (d) [mm] |
10.000 |
| Outer Diameter (D) [mm] |
22.000 |
| Width (B) [mm] |
6.000 |
| Chamfer (rs min) [mm] |
0.300 |
| Stop Ring Diameter (D2) [mm] |
24.700 |
| Stop Ring Location (C2) [mm] |
1.620 |
| Reference Diameter Outer (Lo) [mm] |
19.400 |
| Reference Diameter Inner (Li) [mm] |
13.400 |
| Ball Size (DW) [mm] |
3.1750 |
| Ball Complement (Z) |
9 |
| Dynamic Load Rating (Cr) [N] |
2697 |
| Static Load Rating (Cor) [N] |
1273 |
| Inner Diameter (d) [in] |
0.3937 |
| Outer Diameter (D) [in] |
0.8661 |
| Stop Ring Diameter (D2) [in] |
0.972 |
| Stop Ring Location (C2) [in] |
0.064 |
Download
CAD Data
Our CAD data is downloadable through the "PARTcommunity" service provided by CADENAS WEB2CAD Inc.. In order to use this service, registration to "PARTcommunity" is required, but is Available free of charge. Please click "CAD data [PARTcommunity]" to download 2D/ 3D CAD data for our products.
