FSA series

Custom

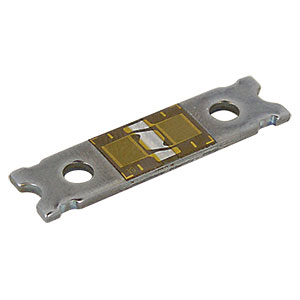

Used in bath scales, various other types of scales, game consoles, home appliances, load sensors, etc., these sensors are sensors for mass production that use strain gages.
Use of High quality Strain Gages Made In-House.

Features

Stainless steel. 2 type of half bridge type and full bridge type.
Rated capacity : 22.24 N{5 lb} ～ 177.9 N {40 lb}

scroll

Specification name	Specification contents
Rated capacity	22.24 N {5 lb}～177.9 N{40 lb}
Safe overload	150 %R.C.
Ultimate overload	250 %R.C.
Rated output	0.9 mV/V±0.135 mV/V~2 mV/V±0.3 mV/V (See below table)
Non-linearity	0.15 %R.O.
Hysteresis	0.15 %R.O.
Repeatability	0.05 %R.O.
Creep	0.1 %R.O./20 min
Creep recovery	0.1 %R.O./20 min
Excitation, recommended	10 Vor less
Excitation, maximum	12 V
Insulation resistance	5,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated	－10 ℃～50 ℃
Temp. range, safe	－40 ℃～65℃
Temp. effect on zero	0.108 %R.O./10 ℃
Temp. effect on output	0.36 %LOAD/10 ℃
Class of protection	IP00 or equivalent
Material of element	Stainless steel
Durability	1,000,000 times with rated load applied.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [N]	Rated capacity [lb]	Weight(Approx. ) [g]	3D CAD files [STEP]	CAD files[DXF]
FSA-5L	22.24	5	0.6	FSA-5L.STEP
FSA-10L	44.48	10	1.3	FSA-10L.STEP	fsi10k.dxf
FSA-20L	88.96	20	2.1	FSA-20L.STEP	fsa20l.dxf
FSA-40L	177.9	40	2.6	FSA-40L.STEP	fsa40l.dxf
FSA-5L-F	22.24	5	0.6	FSA-5L-F.STEP
FSA-10L-F	44.48	10	1.3	FSA-10L-F.STEP
FSA-20L-F	88.96	20	2.1	FSA-20L-F.STEP
FSA-40L-F	177.9	40	2.6	FSA-40L-F.STEP
