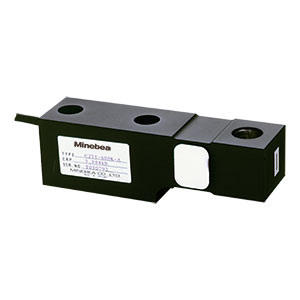

Middle capacity scale for commercial scale

Load cells to be applied to a electrical commercail scale.

Features

・Applied for multi-point method platform scale
・High-accuracy Load Cell

scroll

Specification name	Specification contents
Rated capacity	2.942 kN{300 kgf}～68.65 kN{7 tf}
Safe overload	150 %R.C.
Ultimate overload	200 %R.C.
Rated output	2 mV/V±0.002 mV/V
Non-linearity	0.025 %R.O.
Hysteresis	0.025 %R.O.
Repeatability	0.025 %R.O.
Creep	0.03 %R.O./20 min
Creep recovery	0.03 %R.O./20 min
Excitation, recommended	12 V or less
Excitation, maximum	16 V
Zero balance	±0.02 mV/V
Input resistance	420 Ω (＋30 Ω、－20 Ω)
Output resistance	350 Ω±5 Ω
Insulation resistance	2,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated	－10 ℃～50 ℃
Temp. range, safe	－20 ℃～70 ℃
Temp. effect on zero	0.05 %R.O./10 ℃
Temp. effect on output	0.002 %LOAD/10 ℃
Class of protection	IP64 or equivalent
Material of element	Alluminium alloy (C2T1-7T : Alloy steel)
Material of element2	Alloy steel
Durability	1,000,000 times with rated load applied.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [kN]	Rated capacity [kgf]	Rated capacity [tf]	Weight(Approx. ) [kg]	Natural frequency [Hz]	Rated displacement [mm]	Class of protection	3D CAD files [STEP]	CAD files[DXF]
C2T1-300K-A	2.942	300		1.1	3700	0.25	IP64 or equivalent	C2T1-300K-A.STEP	c2t1_300ka.dxf
C2T1-600K-A	5.884	600		1.1	5000	0.25	IP64 or equivalent	C2T1-600K-A.STEP	c2t1_600ka.dxf
C2T1-1T-A	9.807		1	1.3	5500	0.28	IP64 or equivalent	C2T1-1T-A.STEP	c2t1_1ta.dxf
C2T1-2T-A	19.61		2	1.3	6800	0.32	IP64 or equivalent	C2T1-2T-A.STEP	c2t1_2ta.dxf
C2T1-3T-A	29.42		3	2.4	5500	0.40	IP64 or equivalent	C2T1-3T-A.STEP	c2t1_3ta.dxf
C2T1-4T-A	39.23		4	2.4	6700	0.40	IP64 or equivalent	C2T1-4T-A.STEP	c2t1_4ta.dxf
C2T1-7T	68.65		7	8.4	3500	0.60	IP64 or equivalent		c2t1_7t.dxf
