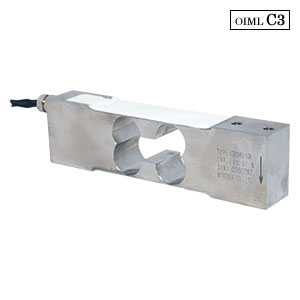

For commercial scale CB004S-＊-C3 OIML standard

Load cells to be applied to a electrical commercail scale.

Features

・Mid. capacity.
・OIML R60 C3 certified.
・All stainless steel structure.

scroll

Specification name	Specification contents
Accuracy class	OIML R60 C3
Maximum scale interval	3,000
Ultimate overload	10kg～100kg
Rated capacity	1g～10g
Minimum detected scale (Vmin)	150 %R.C.
Safe overload	200 %R.C.
Ultimate overload	2 mV/V±0.2 mV/V
Rated output	0.023 %R.O.
Non-linearity	0.023 %R.O.
Hysteresis	0.010 %R.O.
Repeatability	0.016 %R.O./30 min
Creep	0.016 %R.O./30 min
Creep recovery	12 V or less
Excitation, recommended	20 V
Excitation, maximum	±0.1 mV/V
Zero balance	400 Ω ~ 450 Ω
Input resistance	345 Ω ~ 350 Ω
Insulation resistance	2 000 MΩ or more (DC50 V)(between bridge and main body)
Temp. range, compensated	－10 ℃～40 ℃
Temp. range, safe	－10 ℃～40 ℃
Temp. effect on zero	0.014 %R.O./10 ℃
Temp. effect on output	0.012 %LOAD/10 ℃
Class of protection	IP67 or equivalent
Material of element	Stainless steel
Durability	1,000,000 times with rated load applied.
Effect of eccentric load	・Size of loading plate is 400 mm x 400 mm at maximum. ・The center of loading plate and the center of load cell should be the same position ・Error is within 0.01 %R.O. applied with 1/2 of rated capacity at the position of 100 mm of eccentricity.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [kg]	Weight(Approx. ) [kg]	Natural frequency [Hz]	Rated displacement [mm]	Class of protection	3D CAD files [STEP]	CAD files[DXF]
CB004S-10K-C3	10	0.8	115	0.5	IP67 or equivalent	CB004S-10K-C3.STEP	cb004s.dxf
CB004S-15K-C3	15	0.8	140	0.5	IP67 or equivalent	CB004S-15K-C3.STEP	cb004s.dxf
CB004S-20K-C3	20	0.8	160	0.5	IP67 or equivalent	CB004S-20K-C3.STEP	cb004s.dxf
CB004S-25K-C3	25	0.8	190	0.5	IP67 or equivalent	CB004S-25K-C3.STEP	cb004s.dxf
CB004S-30K-C3	30	0.8	215	0.5	IP67 or equivalent	CB004S-30K-C3.STEP	cb004s.dxf
CB004S-35K-C3	35	0.8	230	0.5	IP67 or equivalent	CB004S-35K-C3.STEP	cb004s.dxf
CB004S-45K-C3	45	0.8	265	0.5	IP67 or equivalent	CB004S-45K-C3.STEP	cb004s.dxf
CB004S-60K-C3	60	0.8	300	0.5	IP67 or equivalent	CB004S-60K-C3.STEP	cb004s.dxf
CB004S-100K-C3	100	0.8	380	0.5	IP67 or equivalent	CB004S-100K-C3.STEP	cb004s.dxf
