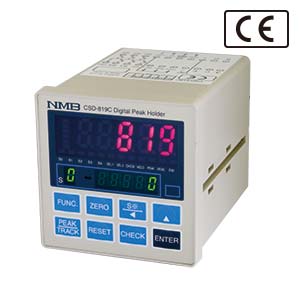

Digital Peak Holder CSD-819C

Discontinued Products

These devices, connected to various sensors and transducers, display measured values digitally and output signals, used for control and monitoring of measuring systems.Minebea Intec devices are weighing module that achieves 10000e Class Ⅲ level accuracy.High speed conversion enables response times from 10 ms.As well,a 10/100 Mbits/s LAN adapter is build in.

Features

・High speed sampling at 2 000 times/s with the small unit.
・Various peak mode setting.
・CE Mark Mark applied.
・Protection grade : IP65
・Suitable for the press fit measuring

Alternative

Digital Peak Holder CSD-819D

scroll

Specification name	Specification contents
Bridge power supply	10 VDC±0.5VDC within 60 mA (Changeable to 5 VDC or 2.5 VDC）
Input range	F.S. setting is availableat the input range from ±0.4 mV/V to ±3.1 mV/V （When bridge power supply is 10 VDC or 5 VDC） F.S. setting is available at the input range from ±0.8 mV/V to ±3.1 mV/V （When bridge power supply is 2.5 VDC）
Output range	DC±10 V Load resistance5 kΩor more (F.S. setting is available in the function.)
Output times	100 times/s, 500 times/s,1 000 times/s, 2 000 times/s (Synchronous with A/Dsampling rate.)
Output resolution	Same as the displayresolution.
Zero adjustment range	±2.0 mV/V
Non-linearity	Display 0.025 %F.S., Output 0.025 %F.S.
Temperature coefficient	Zero point ±0.5 μV/℃(Input conversion, in F.S. setting at the input of ±0.5 mV/V ~ 3.1 mV/V) Sensitivity ±0.01 %F.S./℃ (Input conversion, F.S.setting at the input of ±0.5 mV/V ~ 3.1 mV/V)
Input filter	10 Hz, 100 Hz, 1 kHz
A/D sampling speed	2 000 times/s (Changeable to 100 times/s, 500times/s, 1 000 times/s)
Load display
Display range	-11 000 ~ 11 000
Comparator Display	'Display range ：-99 999 ~ 99 999 Nos. of display ： 1 point (Selectablefrom S0, S1, S2, S3 or S4) Display times ：20 times/s (Changeable to 4 times/s, 50 times/s or 100times/s)
External control function	ZERO, PEAK/TRACK, HOLD, RESET, SEL.1, SEL.2
Comparator function	'Display range ：-99 999 ~ 99 999 Nos. of display ：1 point (Selectable from S0, S1, S2, S3 or S4) Display times ：20 times/s (Changeable to 4 times/s, 50 times/s and 100 times/s) Open collector output function　：'S1, S2, S3, S4 On when reached under/over the conparator set value. S0 On with each condition of the function setting.
Operating temp. /humidity range	Temperature -10 ℃~ 50 ℃, Humidity 85 %RH or less (Non condensing)
Power supply voltage	100 VAC ~ 240 VAC 50/60 Hz (Permissible variable range 85 VAC ~ 264 VAC)
Power consumption	Approx.15 VA (withoutoptions, at AC100 V) Approx.18 VA at maximum(with options, at AC100 V ~ 240 V)
Outline dimensions (WxHxD)	96 mm x 96 mm x 129.5mm (excludes protruding parts)
Weight	Approx. 500 g (without options)
Protection code	IP65 or equivalent (Only for the fron panel when the attached panel mounting gascket is installed.

Instruction Manual
- No.EN294-1240
Specification
- No.EN382819C
CAD
- csd819C.dxf
- Current output
- BCD output
- RS-232C interface
- RS-422/485 interface
- Voltage power supply
