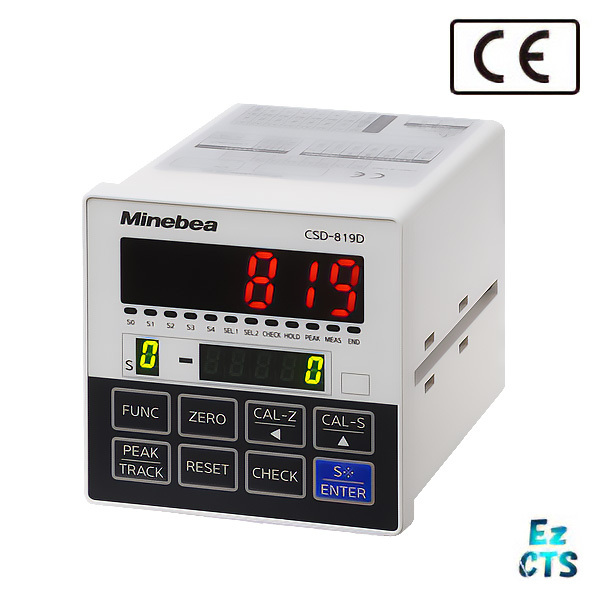

Digital Peak Holder CSD-819D

These devices, connected to various sensors and transducers, display measured values digitally and output signals, used for control and monitoring of measuring systems.Minebea Intec devices are weighing module that achieves 10000e Class Ⅲ level accuracy.High speed conversion enables response times from 10 ms.As well,a 10/100 Mbits/s LAN adapter is build in.

Features

・High speed sampling at 2 000 times/s
・Various peak mode setting.
・Suitable for the press fit measuring
・Equipped with 4-point calibration data・ comparator brand switching function

scroll

Specification name	Specification contents
Bridge power supply	10 VDC±0.5VDC within 60 mA (Changeable to 5 VDC or 2.5 VDC)
Input range	±3.1 mV/V
Input sensitivity	0.4 μV/digit (at 10 VDC bridge power supply) 0.2 μV/digit (at bridge power supply of 5 VDC and 2.5 VDC)
Monitor output	Sensor input per 1 mV/V 2 V ±0.1 V ( bridge power supply at 10 VDC), load resistance 2 kΩ min.
Output range	DC±10 V Load resistance5 kΩor more (F.S. setting is available in the function.)
Output times	100 times/s, 500 times/s,1 000 times/s, 2 000 times/s (Synchronous with A/Dsampling rate.)
Output resolution	Same as the displayresolution.
Zero adjustment range	±2.0 mV/V
Non-linearity	Display 0.025 %F.S., Output 0.025 %F.S.
Temperature coefficient	Zero point ±0.5 μV/℃(when calibrated with input sensitivity or higher, or within ±1.0 mV/V of zero for a gauge voltage of 10 VDC) Sensitivity ±0.01 %F.S./℃(when calibrated at or above the input sensitivity)
Input filter	10 Hz, 100 Hz, 1 kHz
A/D sampling speed	2 000 times/s (Changeable to 100 times/s, 500times/s, 1 000 times/s)
Display range	-11 000 ~ 11 000
Comparator Display	Display range ：-99 999 ~ 99 999 Nos. of display ： 1 point (Selectablefrom S0, S1, S2, S3 or S4) Display times ：20 times/s (Changeable to 4 times/s, 50 times/s or 100times/s)
Comparator function	Display range ：-99 999 ~ 99 999 Nos. of display ：1 point (Selectable from S0, S1, S2, S3 or S4) Display times ：20 times/s (Changeable to 4 times/s, 50 times/s and 100 times/s) Open collector output function　：'S1, S2, S3, S4 On when reached under/over the conparator set value. S0 On with each condition of the function setting.
Operating temp./humidity range	Temperature -10 ℃~ 50 ℃, Humidity 85 %RH or less (Non condensing)
Power supply voltage	100 VAC ~ 240 VAC 50/60 Hz (Permissible variable range 85 VAC ~ 264 VAC)
Power consumption	Approx.16 VA at maximum (with options, at 230 VAC) Approx.14 VA at maximum (with options, at 100 VA)
Outline dimensions(WxHxD)	96 mm x 96 mm x 129.5mm (excludes protruding parts)
Weight	Approx. 500 g (without options)
Protection code	IP65 or equivalent (Only for the fron panel when the attached panel mounting gascket is installed.

Start guide

No.EN294-2038A

Instruction Manual
- No.EN294-2037
Specification
- No.EN382819D
CAD
- csd-819D.DXF
- Current output
- Voltage input
- External control (voltage input type)
- BCD output
- RS-232C interface
- RS-422/485 interface
