60DCF-485
Standard Specifications
Operating Temp. : 0deg.C - +50deg.C (no condensation)
Storage Temp. : -20deg.C - +65deg.C
Insulation Class : Class B
Insulation Resistance : 10 M Ohm min. at 500 VDC
Dielectric Strength
: Blower : 1500 VAC for 1 min.
: Driver : 1500 VAC for 1 min.
Operation Guarantee
: Overcurrent protection
: Locked rotor protection
: Abnormal temperature rise protection
Safety Standard：
Blower : IEC/EN/UL62368-1, UL507, CSA-C22.2 No. 113-18
Driver : IEC/EN/UL62368-1, UL61800-5-1, CSA-C22.2 No. 274-17
※For TUV certification, please check the TÜV Rheinland certificate database or contact us.
Performances
| Set model | 60DCF-485 |
|---|---|
| Blower model | 122-60-731 |
| Driver model | MDS-01AL001-04, MDS-01AL001-05 (No rotation pulse output) |
| Input [W] |
1200 |
| Rated voltage [AC V] |
200 |
| Voltage range lower limit [AC V] |
180 |
| Voltage range upper limit [AC V] |
264 |
| Current(Reference values) [AC A] |
6 |
| Rotation speed(Reference values) [min-1] |
18500 |
| Maximum airflow [m3/min] |
4.0 |
| Maximum static pressure [kPa] |
19.0 |
| Maximum weight(Blower) [kg] |
3.0 |
| Maximum weight(Driver) [kg] |
3.5 |
*Blower & Driver : Only set-sales
*Prohibition of fully-closed use.

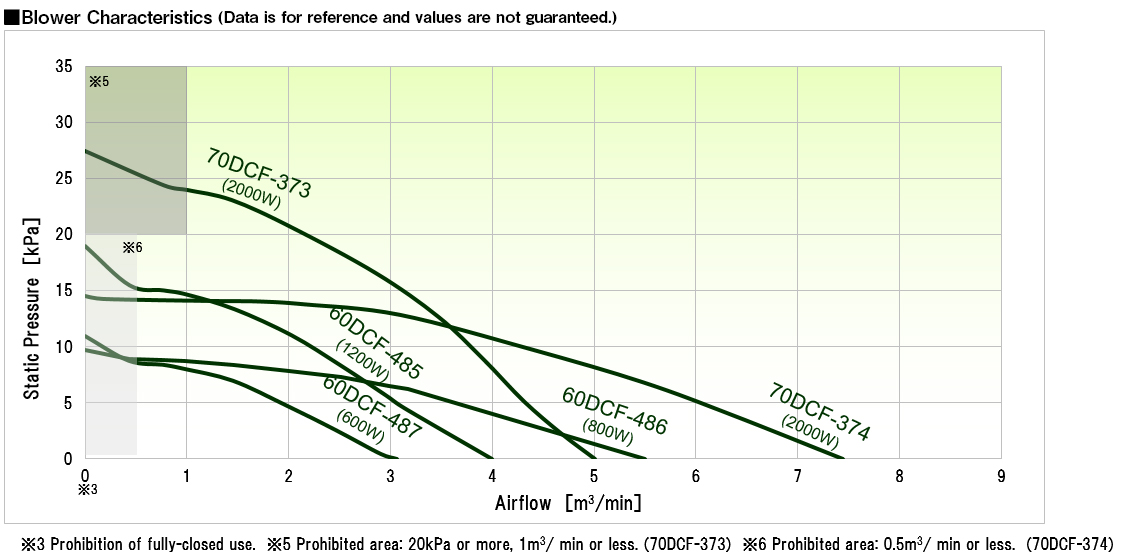

Blower Characteristic
*Data is for reference and values are not guaranteed.
Features
This model was developed to meet the requirements of many of our customers.
It is a compact DC brushless blower that maintains highly efficient airflow static pressure characteristics.
We have developed a compact, high-power (high-rotation speed), high-efficiency model which can not be realized by AC blowers (see technical information for details).
The special driver includes features to reduce high-harmonic current that meets IEC61000_3_2 specifications.
It also complies with RoHS directives for environmental consideration.
Driver also has an error output only model (MDS-01AL001-05) without rotation pulse output.
Applications
Collation Machine、Printing Machine、Conveyer / Packaging Machine、Suction Machine、Dust Catcher、Semiconductor Equipment、Plant Air、Food Packing Machine
