PR6207 Series

Minebea Intec

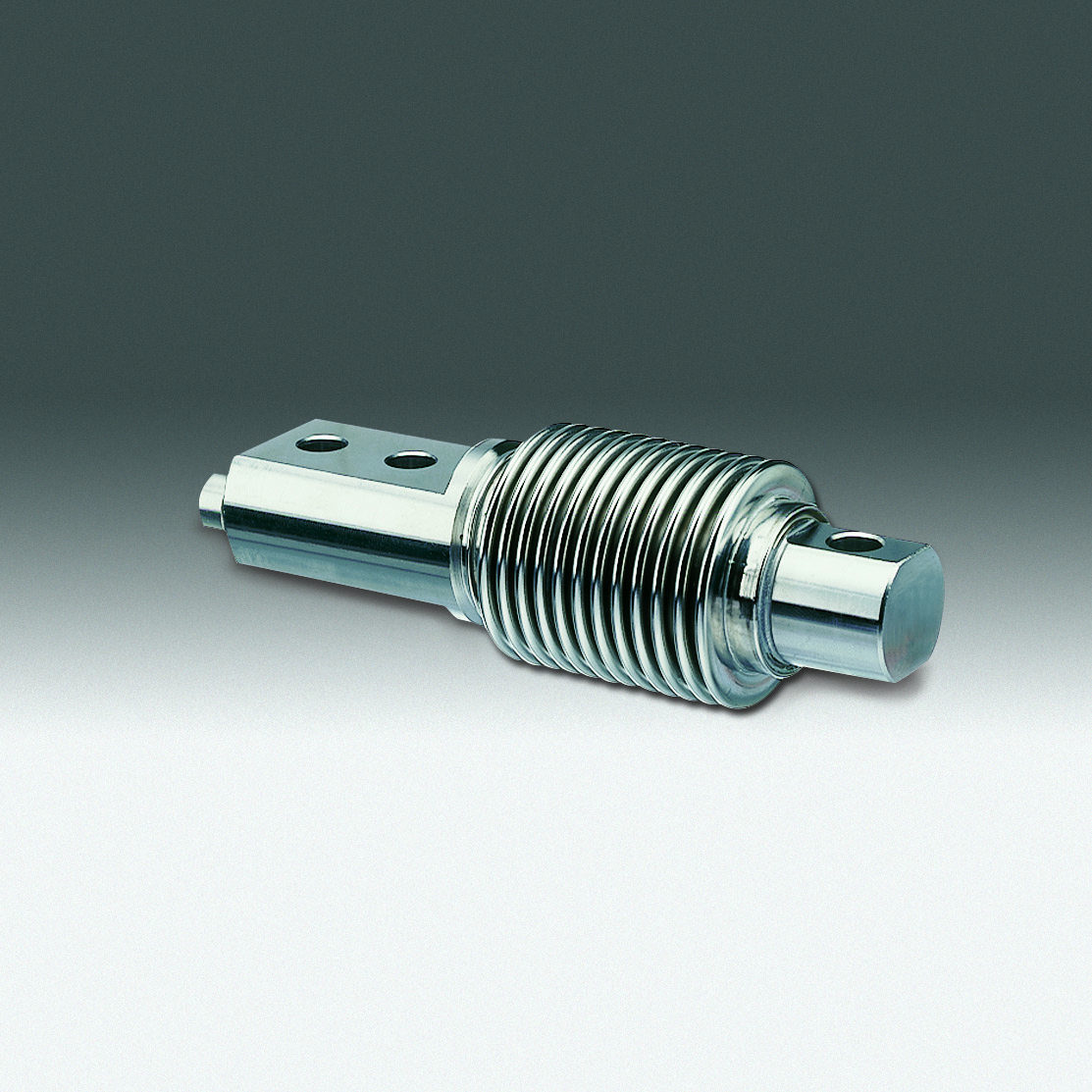

The beam type load cell developed for low load is a highly reliable and long-lasting load cell with high lateral load resistance and stable performance, which is suspended and free from inconvenient bending moment.

Features

・Stainless steel housing:1.4122　
・Completely waterpriif IP67　

scroll

Specification name	Specification contents
OIML Accuracy class	C3
Accuracy class	0.017%Emax
Safe load limit	150%Emax
Destructive load	>300%Emax
Rated output	2.0mV/V
Rated output tolerance	<0.1%Cn
Zero balance	<1.0%Cn
Reproducibility	<0.01%Cn
Creep	<0.017%Cn
Non-linearity	<0.017%Cn
Hysteresis	<0.018%Cn
Temperature effect on Zero	<0.013%Cn/10K
Temperature effect on Span	<0.008%Cn/10K
Input resistance	350Ω～480Ω
Rated output	355.88Ω～356.12Ω
Insulation resistance	>5000×10⁶Ω
Nominal supply voltage	4～24V
Maximum supply voltage	18
Nominal ambient temperature range	-10℃～+70℃
Usable ambient temperature range	-40℃～+70℃
Storage ambient temperature range	-50℃～+85℃
Class of protection	IP68 / IEC 529 (completely waterproof · water depth 1.5m 10000h)
Material of element	Housing:EN 1.4122(DIN 17440)SUS
Cable specification	Polyethylene, 6 core shielded cable / length 3m / diameter 5.4mm / cable 6 x 0.35mm2
Wiring specification	Applied voltage +red/-blue Output signal +white/-red Sensing+green/-gray Shield yellow
Accessories	Earth wire 1pc / instruction manual 1pc

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated Capacity [kgf]	Weight [kg]	Gross Weight [kg]	Packaged Size(W) [cm]	Packaged Size(L) [cm]	Packaged Size(H) [cm]	PDF data (outline drawing)	Specification sheet	Instruction Manual
PR6207/11 C3	10	0.5	1.0	25	16	10	KT60859-1.pdf	213PR6207-C3.pdf	KT60860-1.pdf
PR6207/21 C3	20	0.5	1.0	25	16	10	KT60859-1.pdf	213PR6207-C3.pdf	KT60860-1.pdf
PR6207/51 C3	50	0.5	1.0	25	16	10	KT60859-1.pdf	213PR6207-C3.pdf	KT60860-1.pdf
PR6207/12 C3	100	0.5	1.0	25	16	10	KT60859-1.pdf	213PR6207-C3.pdf	KT60860-1.pdf
PR6207/22 C3	200	0.5	1.0	25	16	10	KT60859-1.pdf	213PR6207-C3.pdf	KT60860-1.pdf
