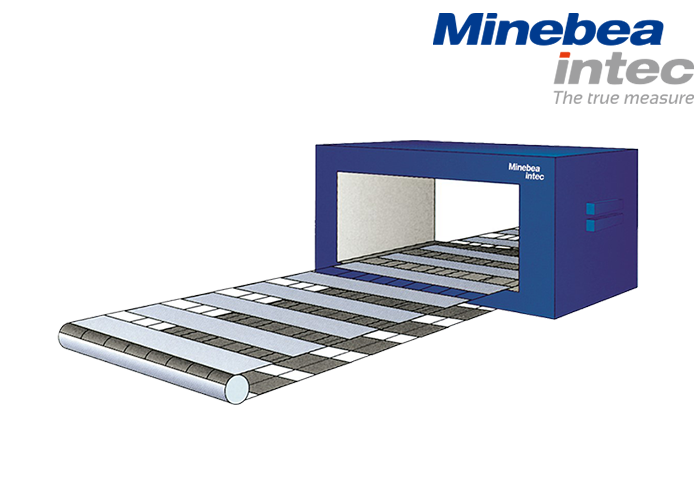

Secus-C

Minebea Intec

For Inspection of Rubber, Wood, Coal, Recycled Materials, and Industrial Products

In addition to our standard coil (Secus-C), we offer specialized solutions to fit your existing infrastructure:

・Secus-D (Split-type Coil): Designed for easy retrofitting, this divisible coil can be installed on or removed from existing conveyors without the need to cut the belt.

・Secus-U (Under-belt Coil): A space-saving solution designed to be installed directly beneath your existing conveyor belt.

Features

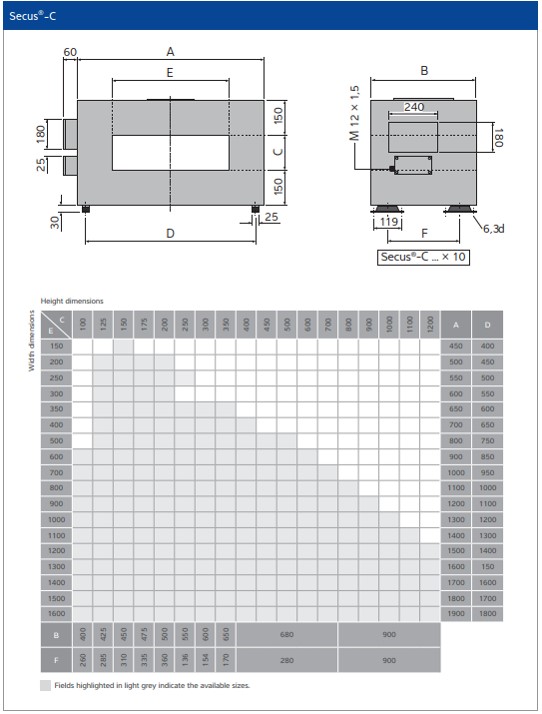

・Various coil sizes
・Tracking technology
・5.7” color touch screen display
・Robust design
・Memory for 200 types of products
・Protection class IP55, IP66 optional

scroll

Specification name	Specification contents
Power supply	90V～260V
Frequency	47Hz～63Hz
Outputs	3 freely programmable error outputs, 1 fixed output
Operating environment Operating range	-10℃～+55℃
Product temperature	-30℃～+55℃, up to +150℃ if equipped with air cooling
Protection class	IP55 (standard), IP66 (option)
Housing	AISI 304 (1.3305) Steel (painted)
Data　interface	TCP-IP, RS232, RS422, CAN bus, Fieldbus, Profibus
Options	Log-in by means of fingerprint sensor、Remote control、End position monitoring、Rejection monitoring、USB print, etc.

scroll

Parts No.

Weight(depending on design)lower limit
[kg]

Weight(depending on design)upper limit
[kg]

Catalog data

Secus-C 5 500 DS_Secus_en.pdf
