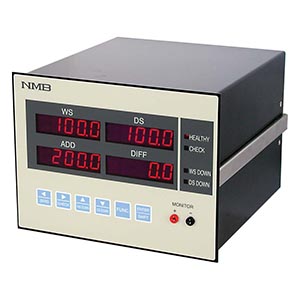

Digital indicator model TMD-100 for tension meter system

Discontinued Products

These devices, connected to various sensors and transducers, display measured values digitally and output signals, used for control and monitoring of measuring systems.Minebea Intec devices are weighing module that achieves 10000e Class Ⅲ level accuracy.High speed conversion enables response times from 10 ms.As well,a 10/100 Mbits/s LAN adapter is build in.

Features

・Tension meter
・Space-saving and miniaturized design.
・Normally equipped with the input, add/sub function two load cell.
・Four systems in one can be displayed.
・Equipped with four channels analog output as a standard.
(It is possible to increase it as an option.)
・Use as a tension meters, steel line, paper, and films.

scroll

Specification name	Specification contents
Bridge power supply	10 VDC±0.3 VDC within 30 mA (Changeable to 2.5 VDC) with remote sensing function
Input range	F.S. setting is availableat the input range from -0.2 mV/V to 3.1 mV/V (When bridge power supply is DC5 V)
Zero adjustment range	-1.9 mV/V to 1.9 mV/V
Non-linearity	0.01 %F.S.
Temperature coefficient	Zero point ±0.2 μV/℃, Sensitivity ±0.001 5 %F.S./℃ (input conversion, F.S. setting at the input from 0.3 mV/V to 3.1 mV/V)
A/D sampling	100 times/s (Changeable to 4 times/s or 20 times/s)
Load display	four systems of WS, DS, ADD and DIFF
Display range	-19 999 to 99 999
Condition display	HEALTHY, CHECK, DS DOWN, WS DOWN
Decimal point display	Changeable to No display, 10¹, 10², 10³ or 10⁴
External control function	ZERO, LOCK, DS DOWN, WS DOWN, DS & WS DOWN
Analog output(4ch)	0 VDC to 10 VDC, 0 VDC to 5 VDC, 0 VDC to 1 VDC, ±10 VDC, ±5 VDC, ±1 VDC load resistance 5 kΩor more, or 4 mADC to 20 mADC load resistane 510 Ωor less (changeable by the DIPswitch)
Operating temp./humidity range	Temperature -10 ℃ to 50 ℃, Humidity 85 %RH or less (Non condensing)
Power supply	100 VAC to 240 VAC (85 VAC to 264 VAC) 50/60 Hz
Power consumption	Approx. 25 VA
Dimension (W x H x D)	200 mm x 150 mm x 200 mm (excludes protruding parts)
Weight	Approx. 4.4 kg (without options)
