Used in bath scales, various other types of scales, game consoles, home appliances, load sensors, etc., these sensors are sensors for mass production that use strain gages.
Use of High quality Strain Gages Made In-House.
Features

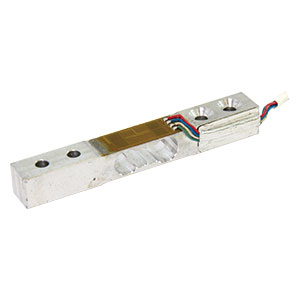

Aluminum element, Roverval method sensor, full bridge type
Rated capacity : 0.981 N{100 gf} ～ 2.942 N {300 gf}
-
-
scroll
Specification name
Specification contents
Rated capacity 0.981 N{100 gf}～2.942 N {300 gf} Safe overload 200 %R.C. Ultimate overload 300 %R.C. Rated output FSV-100G : 0.31 mV/V ~ 0.39 mV/V FSV-300G : 0.4 mV/V±0.06 mV/V Non-linearity 0.05 %R.O. Hysteresis 0.05 %R.O. Creep FSV-100G : 0.08 %R.O./3 min, FSV-300G : 0.06 %R.O./3 min Creep recovery FSV-100G : 0.08 %R.O./3 min, FSV-300G : 0.06 %R.O./3 min Excitation, recommended 4 V or less Excitation, maximum 12 V Zero balance ±0.8 mV/V Input resistance 1,000 Ω±100 Ω Output resistance 1,000 Ω±100 Ω Insulation resistance 1,000 MΩ or more (DC50 V) Temp. range, compensated -10 ℃～50 ℃ Temp. range, safe -10 ℃～50 ℃ Temp. effect on zero ±2 %R.O./10 ℃ Temp. effect on output ±0.7 %LOAD/10 ℃ Lead wire AWG30, 60 mm directly attached, cable end is separated Class of protection IP00 or equivalent Material of element Alluminium alloy Durability 1,000,000 times with rated load applied. -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Rated capacity
[N]Rated capacity
[gf]3D CAD files [STEP]
FSV-100G 0.981 100 FSV-100G.STEP FSV-300G 2.942 300 FSV-300G.STEP -
Specification
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
