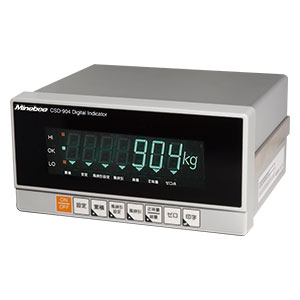

Digital indicator CSD-904-EX

These devices, connected to various sensors and transducers, display measured values digitally and output signals, used for control and monitoring of measuring systems.Minebea Intec devices are weighing module that achieves 10000e Class Ⅲ level accuracy.High speed conversion enables response times from 10 ms.As well,a 10/100 Mbits/s LAN adapter is build in.

Features

・Best for scales, to 6000 div. (at the input of 0.2 micro-V/d or more.)
・Measurement value display with large-scale fluorescent display 22mm character height.
・Full six digit (999 999) can be displayed.
・Unit (t, kg, g, lb) displayed.
・Built-in linear riser (three points or less)
・Weigh-in/Weigh-out mode
・Multiple I/O functions Serial interface, BCD, RS-232C, RS-422/485, 0 to 10 V, 4 to 20 mA
・Protection grade : IP65

scroll

Specification name	Specification contents
Bridge power supply	5 VDC±0.25VDC 120 mA with sensing function
Input sensitivity	0.2 μV/dor more (d= minimum scale)
Input range	-3.1 mV/V ~ 3.1 mV/V
Zero adjustment range	-2.5 mV/V ~ 2.5 mV/V
Non-linearity	0.01 %F.S.
Temperature effect	Zero point ±0.2 μV/℃, Sensitivity ±0.0015 %F.S./℃ (during a calibration at the input sensitivity 0.2micro-V/d or more)
Load display	Display gross weightor Net weight
A/D sampling speed	15 times/s
Display range	-999 999 ~ 999 999
Condition display	ACCUM, MD, PT, TARE, GROSS, NET, ZERO
Judgement display	HI, OK, LO (OK : Green fluorescent display tube, HI/LO : Orangefluorescent display tube)
Display times	5 times/s (Changeable to 15 times/s)
Decimal point display	Changeable to No display, 10¹, 10² or 10³
Unit display	Changeable to g, kg, t or lb (Green fluorescent display tube)
Operating temp. /humidity range	Temperature -10 ℃ ~ 40 ℃, Humidity 85 %RH or less (Non condensing)
Power supply voltage	100 VAC (85 VAC ~ 110 VAC) 50/60 Hz
Power consumption	Approx. 4 VA
Outline dimensions (WxHxD)	192 mm x 96 mm x 165 mm (excludes protruding parts)
Weight	Approx. 1.6 kg (without options)
Protection code	IP65 or equivalent (Only for the fron panel when the attached panel mounting gascket is installed.

Instruction Manual
- No.EN294-1165
Specification
- No.EN382904
CAD
- csd904.dxf
- Current output
- Voltage output
- BCD output
- RS-232C
- RS-422/485 interface
- Contact output
- Power supply
