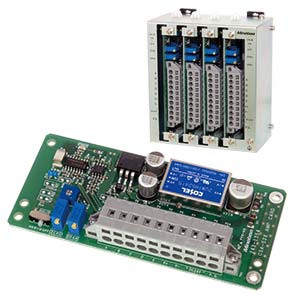

Transmitter CSA-528

The transmitter is an amplifier that amplifies the signal from the strain gage applied transducers (load cell, pressure sensor, torque transducer, and diplacement sensor, etc.), and outputs the current or the voltage in the analogue. These transmittor excels in the response, and shape and the function are different according to the usage.

Features

・Space saving when a multi channel is applied is achieved.
・Available to mount the CSA-528 with a special case as an option.
・The exchange work of CSA-528 for maintenance is easy by using an optional case.
・CSA-528 is driven in the power supply of DC24 V, and easy to store in the cotrol board.

scroll

Specification name	Specification contents
Bridge power supply	DC10 V±0.3V (+0.9 V, -0.2 V) within 120 mA
Input range	0.5 mV/V ~ 1.5 mV/V
Sensitivity	Output of 10 V at the input of 0.5 mV/V
Sensitivity adjustable range	2 000 times adjustable for 1/1 to 1/4
Output	±10 V
Output Load Resistance	2 k-ohm or more
Zero adjustment range	±0.25 mV/V (Tare compensation is adjusted by mounting the resistance.)
Non-linearity (Display and voltage output)	0.02 %F.S.
Temperature efficient	Zero balance ±0.1 μV/℃ (Inputconversion) Sensitivity ±0.01 %F.S./℃
CALIB	0.5 mV/V±0.001 mV/V
Frequency response range	1 kHz (-3dB±1 dB)
Operating temp. / humidity range	Temperature -10 ℃~ 50 ℃ Humidity 85 %RHor less(Non condensing)
Power supply	24 VDC 100 mA
Outline dimensions (WxHxD)	110 mm x 50 mm x 20 mm (Excludes protruding parts) (with mounting case No. CSA-528-80-2) 72 mm x 135 mm x ×70 mm (with mounting case No. CSA-528-80-4） 112 mm x 135 mm x 70 mm
Weight	Approx. 50 g (with mounting case No. CSA-528-80-2) Approx.500 g (with mounting case No. CSA-528-80-4） Approx.800 g
