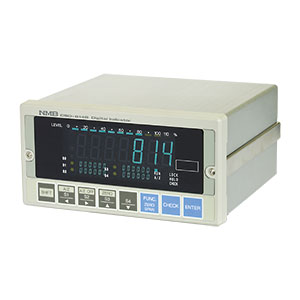

Digital indicator CSD-814B

These devices, connected to various sensors and transducers, display measured values digitally and output signals, used for control and monitoring of measuring systems.Minebea Intec devices are weighing module that achieves 10000e Class Ⅲ level accuracy.High speed conversion enables response times from 10 ms.As well,a 10/100 Mbits/s LAN adapter is build in.

Features

・Fluorescent character display 22 mm height.
・Bar meter of 11 dots, the percentage of present gross weight compared to the maximum display value can be displayed at 10 % intervals.
・Equiped with built-in four steps comparator, available optional upto eight step comparator.
・Resetting modification function value does not interrupt comparison set value.
・Broard range of available option groups.

scroll

Specification name	Specification contents
Bridge power supply	DC10 V±0.3V within 120 mA (Changeable to DC2.5 V or 5 V) with remote sensing.
Input range	F.S. setting can bemade with the input range from 0.3 mV/V to 3 mV/V. (At the time of bridge power supply is DC10 V.) ±F.S. setting can be available with the input rangefrom ±0.6 mV/V to ±3 mV/V. (At the time of selection of of +/- display modeat the function setting) (At the time of bridge Power Supply is DC10 V)
Zero adjustment range	±2.4 mV/V
Non-linearity	0.01 %F.S.
Temperature effect	Zero point ±0.2 μV/℃ (Inputconversion) Sensitivity ±0.001 5 %F.S./℃
A/D sampling speed	100 times/s
Input filter	4 Hz
Display range	-1 000 ~ 11 000 (Changeable to x2, x 5 or x 10) -11 000 ~ 11 000 (Changeable to x 2, x 5 or x 10, When +/- display mode is set with Function setting.)
Condition display	RUN, A/Z, LOCK, HOLD, CHECK
Display of setting	7segment fluorescencedisplay tube and each 7 digits of S1, S2, S3 andS4 with 4.5 mm character height.
Bar meter display	Displays the percentageof present load compared to the rated capacity (100 %) by11 dots bar meter display.
Display times	4 times/s (20 times/s can be available depending on the setting.)
External control function	ZERO, A/Z, A/Z OFF, HOLD, LOCK, A-SEL
Comparator function	'Set value ：－999 999～999 999 -999 999 ~ 999 999 Set quantity ：4 points of S1, S2, S3 and S4 Conversion times ofcomparator ：30 times/s Contact output function ：4 points of S1, S2, S3 and S4
Operating temp. /humidity range	Temperature -10 ℃~ 50 ℃, Humidity 85 %RHo r less (Non condensing)
Power supply voltage	100 VAC (85 VAC ~132 VAC) 50/60 Hz
Power consumption	Approx.22 VA （withoutoptions, at 100 VAC) Approx.30 VA at maximum (with options.)
Outline dimensions (WxHxD)	192 mm x 96 mm x 175mm (excludes protruding parts)
Weight	Approx. 1.9 kg (without options)
