Bearings
Miniature & small ball bearings
Deep groove ball bearings (basic type)
スクロールできます
NMB Parts No. | ISO/JIS | Inner Diameter(d) [mm] |
Outer Diameter(D) [mm] |
Width(B) [mm] |
Dynamic Load Rating(Cr) [N] |
Static Load Rating(Cor) [N] |
Inner Diameter(d) [in] |
Outer Diameter(D) [in] |
CAD Data |
---|---|---|---|---|---|---|---|---|---|
DDRI-1634ZZ | - | 19.050 | 25.400 | 3.967 | 1203 | 894 | 0.7500 | 1.0000 | DDRI-1634ZZ |
DDRI-1634 | - | 19.050 | 25.400 | 3.967 | 1203 | 894 | 0.7500 | 1.0000 | DDRI-1634 |
DDRI-1458ZZ | - | 15.875 | 22.225 | 3.967 | 1093 | 742 | 0.6250 | 0.8750 | DDRI-1458ZZ |
RI-1812KK | - | 12.700 | 28.575 | 7.938 | 5113 | 2387 | 0.5000 | 1.1250 | RI-1812KK |
DDRI-1812ZZ | - | 12.700 | 28.575 | 7.938 | 4033 | 2003 | 0.5000 | 1.1250 | DDRI-1812ZZ |
DDRI-1812 | - | 12.700 | 28.575 | 6.350 | 4033 | 2003 | 0.5000 | 1.1250 | DDRI-1812 |
DDRI-1212ZZ | - | 12.700 | 19.050 | 3.967 | 1051 | 662 | 0.5000 | 0.7500 | DDRI-1212ZZ |
RI-1438SS | - | 9.525 | 22.225 | 7.142 | 3297 | 1368 | 0.3750 | 0.8750 | RI-1438SS |
RI-1438DD | - | 9.525 | 22.225 | 7.142 | 3297 | 1368 | 0.3750 | 0.8750 | RI-1438DD |
RI-1438KK | - | 9.525 | 22.225 | 7.142 | 3297 | 1368 | 0.3750 | 0.8750 | RI-1438KK |
RI-1438 | - | 9.525 | 22.225 | 5.558 | 3297 | 1368 | 0.3750 | 0.8750 | RI-1438 |
DDRI-1438ZZ | - | 9.525 | 22.225 | 7.142 | 3334 | 1413 | 0.3750 | 0.8750 | DDRI-1438ZZ |
DDRI-1438 | - | 9.525 | 22.225 | 5.558 | 3334 | 1413 | 0.3750 | 0.8750 | DDRI-1438 |
DDRI-1038ZZ | - | 9.525 | 15.875 | 3.967 | 906 | 477 | 0.3750 | 0.6250 | DDRI-1038ZZ |
DDRI-1038 | - | 9.525 | 15.875 | 3.967 | 906 | 477 | 0.3750 | 0.6250 | DDRI-1038 |
DDRI-8516ZZ | - | 7.938 | 12.700 | 3.967 | 878 | 419 | 0.3125 | 0.5000 | DDRI-8516ZZ |
DDRI-8516 | - | 7.938 | 12.700 | 3.967 | 878 | 419 | 0.3125 | 0.5000 | DDRI-8516 |
RI-1214ZZ | - | 6.350 | 19.050 | 7.142 | 2411 | 912 | 0.2500 | 0.7500 | RI-1214ZZ |
DDRI-1214ZZ | - | 6.350 | 19.050 | 7.142 | 2411 | 912 | 0.2500 | 0.7500 | DDRI-1214ZZ |
DDRI-1214 | - | 6.350 | 19.050 | 5.558 | 2411 | 912 | 0.2500 | 0.7500 | DDRI-1214 |
R-4SS | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | R-4SS |
R-4DD | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | R-4DD |
R-4KK | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | R-4KK |
DDR-4SS | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | DDR-4SS |
DDR-4HH | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | DDR-4HH |
DDR-4 | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | DDR-4 |
RI-814ZZ | - | 6.350 | 12.700 | 4.762 | 828 | 374 | 0.2500 | 0.5000 | RI-814ZZ |
DDRI-814ZZ | - | 6.350 | 12.700 | 4.762 | 828 | 374 | 0.2500 | 0.5000 | DDRI-814ZZ |
DDRI-814 | - | 6.350 | 12.700 | 3.175 | 828 | 374 | 0.2500 | 0.5000 | DDRI-814 |
DDRI-614ZZ | - | 6.350 | 9.525 | 3.175 | 417 | 205 | 0.2500 | 0.3750 | DDRI-614ZZ |
DDRI-614 | - | 6.350 | 9.525 | 3.175 | 417 | 205 | 0.2500 | 0.3750 | DDRI-614 |
R-3DD | - | 4.762 | 12.700 | 4.978 | 1306 | 487 | 0.1875 | 0.5000 | R-3DD |
R-3HH | - | 4.762 | 12.700 | 4.978 | 1306 | 487 | 0.1875 | 0.5000 | R-3HH |
DDR-3ZZ | - | 4.762 | 12.700 | 4.978 | 1306 | 487 | 0.1875 | 0.5000 | DDR-3ZZ |
DDR-3 | - | 4.762 | 12.700 | 3.967 | 1306 | 487 | 0.1875 | 0.5000 | DDR-3 |
RI-6632ZZ | - | 4.762 | 9.525 | 3.175 | 712 | 271 | 0.1875 | 0.3750 | RI-6632ZZ |
DDRI-6632ZZ | - | 4.762 | 9.525 | 3.175 | 712 | 271 | 0.1875 | 0.3750 | DDRI-6632ZZ |
DDRI-6632 | - | 4.762 | 9.525 | 3.175 | 712 | 271 | 0.1875 | 0.3750 | DDRI-6632 |
DDRI-5632ZZ | - | 4.762 | 7.938 | 3.175 | 391 | 142 | 0.1875 | 0.3125 | DDRI-5632ZZ |
DDRI-5632 | - | 4.762 | 7.938 | 2.779 | 391 | 142 | 0.1875 | 0.3125 | DDRI-5632 |
DDRI-5532ZZ | - | 3.967 | 7.938 | 3.175 | 391 | 142 | 0.1562 | 0.3125 | DDRI-5532ZZ |
DDRI-5532 | - | 3.967 | 7.938 | 2.779 | 391 | 142 | 0.1562 | 0.3125 | DDRI-5532 |
DDRI-618ZZ | - | 3.175 | 9.525 | 3.571 | 563 | 183 | 0.1250 | 0.3750 | DDRI-618ZZ |
DDRI-618 | - | 3.175 | 9.525 | 2.779 | 563 | 183 | 0.1250 | 0.3750 | DDRI-618 |
R-2DD | - | 3.175 | 9.525 | 3.967 | 641 | 226 | 0.1250 | 0.3750 | R-2DD |
R-2KK1 | - | 3.175 | 9.525 | 3.967 | 641 | 226 | 0.1250 | 0.3750 | R-2KK1 |
DDR-2ZZ | - | 3.175 | 9.525 | 3.967 | 641 | 226 | 0.1250 | 0.3750 | DDR-2ZZ |
DDR-2 | - | 3.175 | 9.525 | 3.967 | 641 | 226 | 0.1250 | 0.3750 | DDR-2 |
DDRI-518ZZ | - | 3.175 | 7.938 | 3.571 | 563 | 183 | 0.1250 | 0.3125 | DDRI-518ZZ |
DDRI-518 | - | 3.175 | 7.938 | 2.779 | 563 | 183 | 0.1250 | 0.3125 | DDRI-518 |
DDRI-418ZZ | - | 3.175 | 6.350 | 2.779 | 285 | 97 | 0.1250 | 0.2500 | DDRI-418ZZ |
DDRI-418 | - | 3.175 | 6.350 | 2.380 | 285 | 97 | 0.1250 | 0.2500 | DDRI-418 |
DDRI-5ZZ | - | 2.380 | 7.938 | 3.571 | 563 | 183 | 0.0937 | 0.3125 | DDRI-5ZZ |
DDRI-5 | - | 2.380 | 7.938 | 2.779 | 563 | 183 | 0.0937 | 0.3125 | DDRI-5 |
DDRI-3332ZZ | - | 2.380 | 4.762 | 2.380 | 187 | 59 | 0.0937 | 0.1875 | DDRI-3332ZZ |
DDRI-3332 | - | 2.380 | 4.762 | 1.588 | 187 | 59 | 0.0937 | 0.1875 | DDRI-3332 |
DDRI-4ZZ | - | 1.984 | 6.350 | 3.571 | 330 | 99 | 0.0781 | 0.2500 | DDRI-4ZZ |
DDRI-4 | - | 1.984 | 6.350 | 2.380 | 330 | 99 | 0.0781 | 0.2500 | DDRI-4 |
DDRI-3ZZ | - | 1.397 | 4.762 | 2.779 | 264 | 71 | 0.0550 | 0.1875 | DDRI-3ZZ |
DDRI-3 | - | 1.397 | 4.762 | 1.984 | 264 | 71 | 0.0550 | 0.1875 | DDRI-3 |
DDRI-2X2 | - | 1.016 | 3.175 | 1.191 | 106 | 28 | 0.0400 | 0.1250 | DDRI-2X2 |
DDA-2520ZZ | - | 20.000 | 25.000 | 4.000 | 1012 | 691 | 0.7874 | 0.9843 | DDA-2520ZZ |
DDA-2520 | - | 20.000 | 25.000 | 4.000 | 1012 | 691 | 0.7874 | 0.9843 | DDA-2520 |
DDA-2418 | - | 18.000 | 24.000 | 4.000 | 988 | 654 | 0.7087 | 0.9449 | DDA-2418 |
DDA-2216SS | - | 16.000 | 22.000 | 4.000 | 969 | 619 | 0.6299 | 0.8661 | DDA-2216SS |
DDA-2216ZZ | - | 16.000 | 22.000 | 4.000 | 969 | 619 | 0.6299 | 0.8661 | DDA-2216ZZ |
DDA-2216 | - | 16.000 | 22.000 | 4.000 | 969 | 619 | 0.6299 | 0.8661 | DDA-2216 |
DDA-2115DD | - | 15.000 | 21.000 | 4.000 | 938 | 581 | 0.5906 | 0.7874 | DDA-2115DD |
DDA-2115 | - | 15.000 | 21.000 | 3.500 | 938 | 581 | 0.5906 | 0.7874 | DDA-2115 |
DDA-2015ZZ | - | 15.000 | 20.000 | 4.500 | 944 | 582 | 0.5906 | 0.7874 | DDA-2015ZZ |
DDA-2015 | - | 15.000 | 20.000 | 3.500 | 944 | 582 | 0.5906 | 0.7874 | DDA-2015 |
DDR-2412X3DD | 6901DD | 12.000 | 24.000 | 6.000 | 3082 | 1433 | 0.4724 | 0.9449 | DDR-2412X3DD |
DDR-2412X3ZZ | 6901ZZ | 12.000 | 24.000 | 6.000 | 3082 | 1433 | 0.4724 | 0.9449 | DDR-2412X3ZZ |
DDL-2112SS | 6801SS | 12.000 | 21.000 | 5.000 | 1917 | 1042 | 0.4724 | 0.8268 | DDL-2112SS |
DDL-2112DD | 6801DD | 12.000 | 21.000 | 5.000 | 1917 | 1042 | 0.4724 | 0.8268 | DDL-2112DD |
DDL-2112 | 6801 | 12.000 | 21.000 | 5.000 | 1917 | 1042 | 0.4724 | 0.8268 | DDL-2112 |
DDR-2210X2HH | 6900ZZ | 10.000 | 22.000 | 6.000 | 2697 | 1273 | 0.3937 | 0.8661 | DDR-2210X2HH |
DDR-2210X2 | 6900 | 10.000 | 22.000 | 6.000 | 2697 | 1273 | 0.3937 | 0.8661 | DDR-2210X2 |
DDL-1910DD | - | 10.000 | 19.000 | 7.000 | 2123 | 985 | 0.3937 | 0.7480 | DDL-1910DD |
DDL-1910DDY05 | 6800DD | 10.000 | 19.000 | 5.000 | 2123 | 985 | 0.3937 | 0.7480 | DDL-1910DDY05 |
DDL-1910ZZY05 | 6800ZZ | 10.000 | 19.000 | 5.000 | 2123 | 985 | 0.3937 | 0.7480 | DDL-1910ZZY05 |
DDL-1910ZZ | - | 10.000 | 19.000 | 7.000 | 2123 | 985 | 0.3937 | 0.7480 | DDL-1910ZZ |
DDL-1910 | 6800 | 10.000 | 19.000 | 5.000 | 2123 | 985 | 0.3937 | 0.7480 | DDL-1910 |
DDA-1510ZZ | - | 10.000 | 15.000 | 4.000 | 857 | 435 | 0.3937 | 0.5906 | DDA-1510ZZ |
DDA-1510 | 6700 | 10.000 | 15.000 | 3.000 | 857 | 435 | 0.3937 | 0.5906 | DDA-1510 |
DDL-2090ZZ | 699ZZ | 9.000 | 20.000 | 6.000 | 2123 | 985 | 0.3543 | 0.7874 | DDL-2090ZZ |
DDL-2090 | 699 | 9.000 | 20.000 | 6.000 | 2123 | 985 | 0.3543 | 0.7874 | DDL-2090 |
DDL-1790DD | - | 9.000 | 17.000 | 5.000 | 1724 | 813 | 0.3543 | 0.6693 | DDL-1790DD |
DDL-1790ZZ | - | 9.000 | 17.000 | 5.000 | 1724 | 813 | 0.3543 | 0.6693 | DDL-1790ZZ |
DDL-1790 | 689 | 9.000 | 17.000 | 4.000 | 1724 | 813 | 0.3543 | 0.6693 | DDL-1790 |
DDR-2280DD | 608DD | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | DDR-2280DD |
DDR-2280HH | 608ZZ | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | DDR-2280HH |
DDR-2280 | 608 | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | DDR-2280 |
DDR-1980DD | 698DD | 8.000 | 19.000 | 6.000 | 2463 | 1059 | 0.3150 | 0.7480 | DDR-1980DD |
DDR-1980ZZ | 698ZZ | 8.000 | 19.000 | 6.000 | 2240 | 912 | 0.3150 | 0.7480 | DDR-1980ZZ |
DDR-1980 | 698 | 8.000 | 19.000 | 6.000 | 2240 | 912 | 0.3150 | 0.7480 | DDR-1980 |
DDL-1680DD | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | DDL-1680DD |
DDL-1680HH | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | DDL-1680HH |
DDL-1680 | 688 | 8.000 | 16.000 | 4.000 | 1606 | 712 | 0.3150 | 0.6299 | DDL-1680 |
DDL-1480ZZ | - | 8.000 | 14.000 | 4.000 | 819 | 386 | 0.3150 | 0.5512 | DDL-1480ZZ |
DDL-1480 | - | 8.000 | 14.000 | 3.500 | 819 | 386 | 0.3150 | 0.5512 | DDL-1480 |
DDL-1280ZZ | - | 8.000 | 12.000 | 3.500 | 506 | 249 | 0.3150 | 0.4724 | DDL-1280ZZ |
DDL-1280 | 678 | 8.000 | 12.000 | 2.500 | 506 | 249 | 0.3150 | 0.4724 | DDL-1280 |
DDR-2270HH | 627ZZ | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | DDR-2270HH |
DDR-2270 | 627 | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | DDR-2270 |
DDR-1970ZZ | 607ZZ | 7.000 | 19.000 | 6.000 | 2240 | 912 | 0.2756 | 0.7480 | DDR-1970ZZ |
DDR-1970 | 607 | 7.000 | 19.000 | 6.000 | 2240 | 912 | 0.2756 | 0.7480 | DDR-1970 |
DDL-1470ZZ | - | 7.000 | 14.000 | 5.000 | 1175 | 511 | 0.2756 | 0.5512 | DDL-1470ZZ |
DDL-1470 | 687 | 7.000 | 14.000 | 3.500 | 1175 | 511 | 0.2756 | 0.5512 | DDL-1470 |
DDL-1370ZZ | - | 7.000 | 13.000 | 4.000 | 880 | 414 | 0.2756 | 0.5118 | DDL-1370ZZ |
DDL-1370 | - | 7.000 | 13.000 | 3.000 | 880 | 414 | 0.2756 | 0.5118 | DDL-1370 |
DDL-1170DD | - | 7.000 | 11.000 | 3.000 | 449 | 199 | 0.2756 | 0.4331 | DDL-1170DD |
DDL-1170ZZ | - | 7.000 | 11.000 | 3.000 | 449 | 199 | 0.2756 | 0.4331 | DDL-1170ZZ |
DDL-1170 | 677 | 7.000 | 11.000 | 2.500 | 449 | 199 | 0.2756 | 0.4331 | DDL-1170 |
DDR-1960DD | 626DD | 6.000 | 19.000 | 6.000 | 2805 | 1060 | 0.2362 | 0.7480 | DDR-1960DD |
DDR-1960ZZ | 626ZZ | 6.000 | 19.000 | 6.000 | 2805 | 1060 | 0.2362 | 0.7480 | DDR-1960ZZ |
DDR-1960 | 626 | 6.000 | 19.000 | 6.000 | 2805 | 1060 | 0.2362 | 0.7480 | DDR-1960 |
DDR-1760X2DD | 606DD | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | DDR-1760X2DD |
DDR-1760X2ZZ | 606ZZ | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | DDR-1760X2ZZ |
DDR-1760X2 | 606 | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | DDR-1760X2 |
DDR-1660HH | - | 6.000 | 16.000 | 5.000 | 1735 | 671 | 0.2362 | 0.6299 | DDR-1660HH |
DDR-1560DD | 696DD | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | DDR-1560DD |
DDR-1560ZZ | 696ZZ | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | DDR-1560ZZ |
DDR-1560 | 696 | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | DDR-1560 |
DDL-1360DD | - | 6.000 | 13.000 | 5.000 | 1083 | 438 | 0.2362 | 0.5118 | DDL-1360DD |
DDL-1360ZZ | - | 6.000 | 13.000 | 5.000 | 1083 | 438 | 0.2362 | 0.5118 | DDL-1360ZZ |
DDL-1360 | 686 | 6.000 | 13.000 | 3.500 | 1083 | 438 | 0.2362 | 0.5118 | DDL-1360 |
DDL-1260X2DD | - | 6.000 | 12.000 | 4.000 | 831 | 363 | 0.2362 | 0.4724 | DDL-1260X2DD |
DDL-1260ZZ | - | 6.000 | 12.000 | 4.000 | 831 | 363 | 0.2362 | 0.4724 | DDL-1260ZZ |
DDL-1260 | - | 6.000 | 12.000 | 3.000 | 831 | 363 | 0.2362 | 0.4724 | DDL-1260 |
DDL-1060DD | - | 6.000 | 10.000 | 3.000 | 457 | 194 | 0.2362 | 0.3937 | DDL-1060DD |
DDL-1060ZZ | - | 6.000 | 10.000 | 3.000 | 457 | 194 | 0.2362 | 0.3937 | DDL-1060ZZ |
DDL-1060 | 676 | 6.000 | 10.000 | 2.500 | 457 | 194 | 0.2362 | 0.3937 | DDL-1060 |
DDR-1950ZZ | 635ZZ | 5.000 | 19.000 | 6.000 | 2805 | 1060 | 0.1969 | 0.7480 | DDR-1950ZZ |
DDR-1950 | 635 | 5.000 | 19.000 | 6.000 | 2805 | 1060 | 0.1969 | 0.7480 | DDR-1950 |
DDR-1650DD | 625DD | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | DDR-1650DD |
DDR-1650HH | 625ZZ | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | DDR-1650HH |
DDR-1650 | 625 | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | DDR-1650 |
DDR-1450ZZ | 605ZZ | 5.000 | 14.000 | 5.000 | 1329 | 508 | 0.1969 | 0.5512 | DDR-1450ZZ |
DDR-1450 | 605 | 5.000 | 14.000 | 5.000 | 1329 | 508 | 0.1969 | 0.5512 | DDR-1450 |
DDR-1350ZZ | 695ZZ | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | DDR-1350ZZ |
DDR-1350 | 695 | 5.000 | 13.000 | 4.000 | 1306 | 487 | 0.1969 | 0.5118 | DDR-1350 |
DDL-1150ZZY04 | - | 5.000 | 11.000 | 4.000 | 714 | 276 | 0.1969 | 0.4331 | DDL-1150ZZY04 |
DDL-1150W04 | - | 5.000 | 11.000 | 4.000 | 714 | 276 | 0.1969 | 0.4331 | DDL-1150W04 |
DDL-1150ZZ | - | 5.000 | 11.000 | 5.000 | 714 | 276 | 0.1969 | 0.4331 | DDL-1150ZZ |
DDL-1150 | 685 | 5.000 | 11.000 | 3.000 | 714 | 276 | 0.1969 | 0.4331 | DDL-1150 |
DDL-1050SS | - | 5.000 | 10.000 | 4.000 | 714 | 276 | 0.1969 | 0.3937 | DDL-1050SS |
DDL-1050ZZ | - | 5.000 | 10.000 | 4.000 | 714 | 276 | 0.1969 | 0.3937 | DDL-1050ZZ |
DDL-1050 | - | 5.000 | 10.000 | 3.000 | 714 | 276 | 0.1969 | 0.3937 | DDL-1050 |
DDL-950ZZ | - | 5.000 | 9.000 | 3.000 | 495 | 207 | 0.1969 | 0.3543 | DDL-950ZZ |
DDL-950 | - | 5.000 | 9.000 | 2.500 | 495 | 207 | 0.1969 | 0.3543 | DDL-950 |
DDL-850ZZ | - | 5.000 | 8.000 | 2.500 | 274 | 130 | 0.1969 | 0.3150 | DDL-850ZZ |
DDL-850 | 675 | 5.000 | 8.000 | 2.000 | 274 | 130 | 0.1969 | 0.3150 | DDL-850 |
DDR-1340DD | 624DD | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | DDR-1340DD |
DDR-1340ZZ | 624ZZ | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | DDR-1340ZZ |
DDR-1340 | 624 | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | DDR-1340 |
DDR-1240ZZ | 604ZZ | 4.000 | 12.000 | 4.000 | 959 | 347 | 0.1575 | 0.4724 | DDR-1240ZZ |
DDR-1240 | 604 | 4.000 | 12.000 | 4.000 | 959 | 347 | 0.1575 | 0.4724 | DDR-1240 |
DDR-1140ZZ | 694ZZ | 4.000 | 11.000 | 4.000 | 714 | 276 | 0.1575 | 0.4331 | DDR-1140ZZ |
DDR-1140 | 694 | 4.000 | 11.000 | 4.000 | 714 | 276 | 0.1575 | 0.4331 | DDR-1140 |
DDL-1040ZZ | - | 4.000 | 10.000 | 4.000 | 708 | 266 | 0.1575 | 0.3937 | DDL-1040ZZ |
DDL-1040 | - | 4.000 | 10.000 | 3.000 | 708 | 266 | 0.1575 | 0.3937 | DDL-1040 |
DDL-940ZZ | - | 4.000 | 9.000 | 4.000 | 641 | 226 | 0.1575 | 0.3543 | DDL-940ZZ |
DDL-940 | 684 | 4.000 | 9.000 | 2.500 | 641 | 226 | 0.1575 | 0.3543 | DDL-940 |
DDL-840ZZ | - | 4.000 | 8.000 | 3.000 | 391 | 140 | 0.1575 | 0.3150 | DDL-840ZZ |
DDL-840 | - | 4.000 | 8.000 | 2.000 | 391 | 140 | 0.1575 | 0.3150 | DDL-840 |
DDL-740ZZ | - | 4.000 | 7.000 | 2.500 | 252 | 106 | 0.1575 | 0.2756 | DDL-740ZZ |
DDL-740 | 674 | 4.000 | 7.000 | 2.000 | 252 | 106 | 0.1575 | 0.2756 | DDL-740 |
DDR-1030ZZ | 623ZZ | 3.000 | 10.000 | 4.000 | 641 | 226 | 0.1181 | 0.3937 | DDR-1030ZZ |
DDR-1030 | 623 | 3.000 | 10.000 | 4.000 | 641 | 226 | 0.1181 | 0.3937 | DDR-1030 |
DDR-930ZZY04 | - | 3.000 | 9.000 | 4.000 | 634 | 219 | 0.1181 | 0.3543 | DDR-930ZZY04 |
DDR-930ZZ | - | 3.000 | 9.000 | 5.000 | 634 | 219 | 0.1181 | 0.3543 | DDR-930ZZ |
DDR-930 | 603 | 3.000 | 9.000 | 3.000 | 634 | 219 | 0.1181 | 0.3543 | DDR-930 |
DDR-830ZZ | - | 3.000 | 8.000 | 4.000 | 553 | 176 | 0.1181 | 0.3150 | DDR-830ZZ |
DDR-830 | 693 | 3.000 | 8.000 | 3.000 | 553 | 176 | 0.1181 | 0.3150 | DDR-830 |
DDL-730ZZ | - | 3.000 | 7.000 | 3.000 | 384 | 129 | 0.1181 | 0.2756 | DDL-730ZZ |
DDL-730 | 683 | 3.000 | 7.000 | 2.000 | 384 | 129 | 0.1181 | 0.2756 | DDL-730 |
DDL-630ZZ | - | 3.000 | 6.000 | 2.500 | 206 | 73 | 0.1181 | 0.2362 | DDL-630ZZ |
DDL-630 | 673 | 3.000 | 6.000 | 2.000 | 206 | 73 | 0.1181 | 0.2362 | DDL-630 |
DDR-825ZZ | - | 2.500 | 8.000 | 4.000 | 553 | 176 | 0.0984 | 0.3150 | DDR-825ZZ |
DDR-825 | 60/2.5 | 2.500 | 8.000 | 2.800 | 553 | 176 | 0.0984 | 0.3150 | DDR-825 |
DDR-725ZZ | - | 2.500 | 7.000 | 3.500 | 380 | 126 | 0.0984 | 0.2756 | DDR-725ZZ |
DDR-725 | 69/2.5 | 2.500 | 7.000 | 2.500 | 380 | 126 | 0.0984 | 0.2756 | DDR-725 |
DDL-625ZZ | - | 2.500 | 6.000 | 2.600 | 206 | 73 | 0.0984 | 0.2362 | DDL-625ZZ |
DDL-625 | 68/2.5 | 2.500 | 6.000 | 1.800 | 206 | 73 | 0.0984 | 0.2362 | DDL-625 |
DDR-720ZZY03 | - | 2.000 | 7.000 | 3.000 | 380 | 126 | 0.0787 | 0.2756 | DDR-720ZZY03 |
DDR-720ZZ | - | 2.000 | 7.000 | 3.500 | 380 | 126 | 0.0787 | 0.2756 | DDR-720ZZ |
DDR-720 | 602 | 2.000 | 7.000 | 2.800 | 380 | 126 | 0.0787 | 0.2756 | DDR-720 |
DDR-620ZZ | - | 2.000 | 6.000 | 3.000 | 330 | 99 | 0.0787 | 0.2362 | DDR-620ZZ |
DDR-620ZZY52 | - | 2.000 | 6.000 | 2.500 | 330 | 99 | 0.0787 | 0.2362 | DDR-620ZZY52 |
DDR-620W52 | - | 2.000 | 6.000 | 2.500 | 330 | 99 | 0.0787 | 0.2362 | DDR-620W52 |
DDR-620ZZY32 | 692ZZ | 2.000 | 6.000 | 2.300 | 279 | 89 | 0.0787 | 0.2362 | DDR-620ZZY32 |
DDR-620 | 692 | 2.000 | 6.000 | 2.300 | 279 | 89 | 0.0787 | 0.2362 | DDR-620 |
DDL-520ZZW52 | - | 2.000 | 5.000 | 2.500 | 187 | 59 | 0.0787 | 0.1969 | DDL-520ZZW52 |
DDL-520W52 | - | 2.000 | 5.000 | 2.500 | 187 | 59 | 0.0787 | 0.1969 | DDL-520W52 |
DDL-520ZZ | - | 2.000 | 5.000 | 2.300 | 187 | 59 | 0.0787 | 0.1969 | DDL-520ZZ |
DDL-520 | 682 | 2.000 | 5.000 | 1.500 | 187 | 59 | 0.0787 | 0.1969 | DDL-520 |
DDL-420 | 672 | 2.000 | 4.000 | 1.200 | 125 | 41 | 0.0787 | 0.1575 | DDL-420 |
DDR-615ZZ | - | 1.500 | 6.000 | 3.000 | 324 | 97 | 0.0591 | 0.2362 | DDR-615ZZ |
DDR-615 | 60/1.5 | 1.500 | 6.000 | 2.500 | 324 | 97 | 0.0591 | 0.2362 | DDR-615 |
DDR-515ZZ | - | 1.500 | 5.000 | 2.600 | 184 | 57 | 0.0591 | 0.1969 | DDR-515ZZ |
DDR-515 | 69/1.5 | 1.500 | 5.000 | 2.000 | 184 | 57 | 0.0591 | 0.1969 | DDR-515 |
DDL-415ZZ | - | 1.500 | 4.000 | 2.000 | 125 | 38 | 0.0591 | 0.1575 | DDL-415ZZ |
DDL-415 | 68/1.5 | 1.500 | 4.000 | 1.200 | 125 | 38 | 0.0591 | 0.1575 | DDL-415 |
DDR-412 | - | 1.200 | 4.000 | 1.800 | 158 | 44 | 0.0472 | 0.1575 | DDR-412 |
DDR-410XZZ | - | 1.000 | 4.000 | 2.000 | 125 | 38 | 0.0394 | 0.1575 | DDR-410XZZ |
DDR-410 | 691 | 1.000 | 4.000 | 1.600 | 158 | 44 | 0.0394 | 0.1575 | DDR-410 |
DDL-310 | 681 | 1.000 | 3.000 | 1.000 | 80 | 23 | 0.0394 | 0.1181 | DDL-310 |
R-2412X3DD | 6901DD | 12.000 | 24.000 | 6.000 | 3082 | 1433 | 0.4724 | 0.9449 | R-2412X3DD |
R-2412X3KK | 6901ZZ | 12.000 | 24.000 | 6.000 | 3082 | 1433 | 0.4724 | 0.9449 | R-2412X3KK |
R-2412X3 | 6901 | 12.000 | 24.000 | 6.000 | 3082 | 1433 | 0.4724 | 0.9449 | R-2412X3 |
L-2112SS | 6801SS | 12.000 | 21.000 | 5.000 | 1917 | 1042 | 0.4724 | 0.8268 | L-2112SS |
L-2112DD | 6801DD | 12.000 | 21.000 | 5.000 | 1917 | 1042 | 0.4724 | 0.8268 | L-2112DD |
L-2112KK | 6801ZZ | 12.000 | 21.000 | 5.000 | 1917 | 1042 | 0.4724 | 0.8268 | L-2112KK |
L-2112 | 6801 | 12.000 | 21.000 | 5.000 | 1917 | 1042 | 0.4724 | 0.8268 | L-2112 |
6000SS | 6000SS | 10.000 | 26.000 | 8.000 | 4578 | 1970 | 0.3937 | 1.0236 | 6000SS |
6000DD | 6000DD | 10.000 | 26.000 | 8.000 | 4578 | 1970 | 0.3937 | 1.0236 | 6000DD |
6000ZZ | 6000ZZ | 10.000 | 26.000 | 8.000 | 4578 | 1970 | 0.3937 | 1.0236 | 6000ZZ |
6000 | 6000 | 10.000 | 26.000 | 8.000 | 4578 | 1970 | 0.3937 | 1.0236 | 6000 |
R-2210X3SS | 6900SS | 10.000 | 22.000 | 6.000 | 2697 | 1273 | 0.3937 | 0.8661 | R-2210X3SS |
R-2210X3DD | 6900DD | 10.000 | 22.000 | 6.000 | 2697 | 1273 | 0.3937 | 0.8661 | R-2210X3DD |
R-2210X3KK | 6900ZZ | 10.000 | 22.000 | 6.000 | 2697 | 1273 | 0.3937 | 0.8661 | R-2210X3KK |
L-1910DDY05 | 6800DD | 10.000 | 19.000 | 5.000 | 2123 | 985 | 0.3937 | 0.7480 | L-1910DDY05 |
L-1910KKY05 | 6800ZZ | 10.000 | 19.000 | 5.000 | 2123 | 985 | 0.3937 | 0.7480 | L-1910KKY05 |
L-1910DD | - | 10.000 | 19.000 | 7.000 | 2123 | 985 | 0.3937 | 0.7480 | L-1910DD |
L-1910 | 6800 | 10.000 | 19.000 | 5.000 | 2123 | 985 | 0.3937 | 0.7480 | L-1910 |
629SSSD61 | 629SS | 9.000 | 26.000 | 8.000 | 4578 | 1970 | 0.3543 | 1.0236 | 629SSSD61 |
629DDSD61 | 629DD | 9.000 | 26.000 | 8.000 | 4578 | 1970 | 0.3543 | 1.0236 | 629DDSD61 |
629ZZSD61 | 629ZZ | 9.000 | 26.000 | 8.000 | 4578 | 1970 | 0.3543 | 1.0236 | 629ZZSD61 |
609SS | 609SS | 9.000 | 24.000 | 7.000 | 3297 | 1368 | 0.3543 | 0.9449 | 609SS |
609DD | 609DD | 9.000 | 24.000 | 7.000 | 3297 | 1368 | 0.3543 | 0.9449 | 609DD |
609ZZ | 609ZZ | 9.000 | 24.000 | 7.000 | 3297 | 1368 | 0.3543 | 0.9449 | 609ZZ |
609 | 609 | 9.000 | 24.000 | 7.000 | 3297 | 1368 | 0.3543 | 0.9449 | 609 |
L-2090KK | 699ZZ | 9.000 | 20.000 | 6.000 | 2123 | 985 | 0.3543 | 0.7874 | L-2090KK |
L-2090 | 699 | 9.000 | 20.000 | 6.000 | 2123 | 985 | 0.3543 | 0.7874 | L-2090 |
L-1790DD | - | 9.000 | 17.000 | 5.000 | 1724 | 813 | 0.3543 | 0.6693 | L-1790DD |
L-1790ZZ | - | 9.000 | 17.000 | 5.000 | 1724 | 813 | 0.3543 | 0.6693 | L-1790ZZ |
L-1790 | 689 | 9.000 | 17.000 | 4.000 | 1724 | 813 | 0.3543 | 0.6693 | L-1790 |
R-2480KK | 628ZZ | 8.000 | 24.000 | 8.000 | 3297 | 1368 | 0.3150 | 0.9449 | R-2480KK |
R-2480 | 628 | 8.000 | 24.000 | 8.000 | 3297 | 1368 | 0.3150 | 0.9449 | R-2480 |
608SS | 608SS | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | 608SS |
608DD | 608DD | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | 608DD |
608ZZ | 608ZZ | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | 608ZZ |
608 | 608 | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | 608 |
R-1980SS | 698SS | 8.000 | 19.000 | 6.000 | 2463 | 1059 | 0.3150 | 0.7480 | R-1980SS |
R-1980DD | 698DD | 8.000 | 19.000 | 6.000 | 2463 | 1059 | 0.3150 | 0.7480 | R-1980DD |
R-1980KK | 698ZZ | 8.000 | 19.000 | 6.000 | 2463 | 1059 | 0.3150 | 0.7480 | R-1980KK |
R-1980 | 698 | 8.000 | 19.000 | 6.000 | 2463 | 1059 | 0.3150 | 0.7480 | R-1980 |
L-1680DD | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | L-1680DD |
L-1680KK | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | L-1680KK |
L-1680 | 688 | 8.000 | 16.000 | 4.000 | 1606 | 712 | 0.3150 | 0.6299 | L-1680 |
L-1480DD | - | 8.000 | 14.000 | 4.000 | 819 | 386 | 0.3150 | 0.5512 | L-1480DD |
L-1480ZZ | - | 8.000 | 14.000 | 4.000 | 819 | 386 | 0.3150 | 0.5512 | L-1480ZZ |
L-1280DD | - | 8.000 | 12.000 | 3.500 | 506 | 249 | 0.3150 | 0.4724 | L-1280DD |
L-1280ZZ | - | 8.000 | 12.000 | 3.500 | 506 | 249 | 0.3150 | 0.4724 | L-1280ZZ |
627SS | 627SS | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | 627SS |
627DD | 627DD | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | 627DD |
627ZZ | 627ZZ | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | 627ZZ |
627 | 627 | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | 627 |
607SS | 607SS | 7.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2756 | 0.7480 | 607SS |
607DD | 607DD | 7.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2756 | 0.7480 | 607DD |
607ZZ | 607ZZ | 7.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2756 | 0.7480 | 607ZZ |
607 | 607 | 7.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2756 | 0.7480 | 607 |
L-1470KK | - | 7.000 | 14.000 | 5.000 | 1175 | 511 | 0.2756 | 0.5512 | L-1470KK |
L-1470 | 687 | 7.000 | 14.000 | 3.500 | 1175 | 511 | 0.2756 | 0.5512 | L-1470 |
L-1370ZZ | - | 7.000 | 13.000 | 4.000 | 880 | 414 | 0.2756 | 0.5118 | L-1370ZZ |
626SS | 626SS | 6.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2362 | 0.7480 | 626SS |
626DD | 626DD | 6.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2362 | 0.7480 | 626DD |
626ZZ | 626ZZ | 6.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2362 | 0.7480 | 626ZZ |
626 | 626 | 6.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2362 | 0.7480 | 626 |
R-1760X2DD | 606DD | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | R-1760X2DD |
R-1760X2KK | 606ZZ | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | R-1760X2KK |
R-1760X2 | 606 | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | R-1760X2 |
R-1660DD | - | 6.000 | 16.000 | 5.000 | 1735 | 671 | 0.2362 | 0.6299 | R-1660DD |
R-1660HH | - | 6.000 | 16.000 | 5.000 | 1735 | 671 | 0.2362 | 0.6299 | R-1660HH |
R-1560X13DD | 696DD | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | R-1560X13DD |
R-1560X13KK | 696ZZ | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | R-1560X13KK |
L-1360DD | - | 6.000 | 13.000 | 5.000 | 1083 | 438 | 0.2362 | 0.5118 | L-1360DD |
L-1360ZZ | - | 6.000 | 13.000 | 5.000 | 1083 | 438 | 0.2362 | 0.5118 | L-1360ZZ |
L-1360 | 686 | 6.000 | 13.000 | 3.500 | 1083 | 438 | 0.2362 | 0.5118 | L-1360 |
L-1260X2DD | - | 6.000 | 12.000 | 4.000 | 831 | 363 | 0.2362 | 0.4724 | L-1260X2DD |
L-1260ZZ | - | 6.000 | 12.000 | 4.000 | 831 | 363 | 0.2362 | 0.4724 | L-1260ZZ |
L-1260 | - | 6.000 | 12.000 | 3.000 | 831 | 363 | 0.2362 | 0.4724 | L-1260 |
L-1060SS | - | 6.000 | 10.000 | 3.000 | 457 | 194 | 0.2362 | 0.3937 | L-1060SS |
L-1060DD | - | 6.000 | 10.000 | 3.000 | 457 | 194 | 0.2362 | 0.3937 | L-1060DD |
L-1060ZZ | - | 6.000 | 10.000 | 3.000 | 457 | 194 | 0.2362 | 0.3937 | L-1060ZZ |
L-1060 | 676 | 6.000 | 10.000 | 2.500 | 457 | 194 | 0.2362 | 0.3937 | L-1060 |
635ZZ | 635ZZ | 5.000 | 19.000 | 6.000 | 2614 | 1053 | 0.1969 | 0.7480 | 635ZZ |
635 | 635 | 5.000 | 19.000 | 6.000 | 2614 | 1053 | 0.1969 | 0.7480 | 635 |
R-1650SS | 625SS | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | R-1650SS |
R-1650DD | 625DD | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | R-1650DD |
R-1650HH | 625ZZ | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | R-1650HH |
R-1650 | 625 | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | R-1650 |
R-1450ZZ | 605ZZ | 5.000 | 14.000 | 5.000 | 1329 | 508 | 0.1969 | 0.5512 | R-1450ZZ |
R-1450 | 605 | 5.000 | 14.000 | 5.000 | 1329 | 508 | 0.1969 | 0.5512 | R-1450 |
R-1350X2SS | 695SS | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | R-1350X2SS |
R-1350X2DD | 695DD | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | R-1350X2DD |
R-1350X2ZZ | 695ZZ | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | R-1350X2ZZ |
R-1350DD | 695DD | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | R-1350DD |
R-1350ZZ | 695ZZ | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | R-1350ZZ |
R-1350 | 695 | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | R-1350 |
L-1150ZZY04 | - | 5.000 | 11.000 | 4.000 | 714 | 276 | 0.1969 | 0.4331 | L-1150ZZY04 |
L-1150ZZ | - | 5.000 | 11.000 | 5.000 | 714 | 276 | 0.1969 | 0.4331 | L-1150ZZ |
L-1150 | 685 | 5.000 | 11.000 | 3.000 | 714 | 276 | 0.1969 | 0.4331 | L-1150 |
L-1050SS | - | 5.000 | 10.000 | 4.000 | 714 | 276 | 0.1969 | 0.3937 | L-1050SS |
L-1050ZZ | - | 5.000 | 10.000 | 4.000 | 714 | 276 | 0.1969 | 0.3937 | L-1050ZZ |
L-1050 | - | 5.000 | 10.000 | 3.000 | 714 | 276 | 0.1969 | 0.3937 | L-1050 |
L-950ZZ | - | 5.000 | 9.000 | 3.000 | 495 | 207 | 0.1969 | 0.3543 | L-950ZZ |
L-850ZZ | - | 5.000 | 8.000 | 2.500 | 274 | 130 | 0.1969 | 0.3150 | L-850ZZ |
L-850 | 675 | 5.000 | 8.000 | 2.000 | 274 | 130 | 0.1969 | 0.3150 | L-850 |
R-1640DD | 634DD | 4.000 | 16.000 | 5.000 | 1735 | 671 | 0.1575 | 0.6299 | R-1640DD |
R-1640HH | 634ZZ | 4.000 | 16.000 | 5.000 | 1735 | 671 | 0.1575 | 0.6299 | R-1640HH |
R-1640 | 634 | 4.000 | 16.000 | 5.000 | 1735 | 671 | 0.1575 | 0.6299 | R-1640 |
R-1340DD | 624DD | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | R-1340DD |
R-1340HH | 624ZZ | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | R-1340HH |
R-1340 | 624 | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | R-1340 |
R-1240KK1 | 604ZZ | 4.000 | 12.000 | 4.000 | 959 | 347 | 0.1575 | 0.4724 | R-1240KK1 |
R-1240 | 604 | 4.000 | 12.000 | 4.000 | 959 | 347 | 0.1575 | 0.4724 | R-1240 |
R-1140ZZ | 694ZZ | 4.000 | 11.000 | 4.000 | 714 | 276 | 0.1575 | 0.4331 | R-1140ZZ |
R-1140 | 694 | 4.000 | 11.000 | 4.000 | 714 | 276 | 0.1575 | 0.4331 | R-1140 |
L-1040X2ZZ | - | 4.000 | 10.000 | 4.000 | 708 | 266 | 0.1575 | 0.3937 | L-1040X2ZZ |
L-1040X2 | - | 4.000 | 10.000 | 3.000 | 708 | 266 | 0.1575 | 0.3937 | L-1040X2 |
L-940ZZ | - | 4.000 | 9.000 | 4.000 | 641 | 226 | 0.1575 | 0.3543 | L-940ZZ |
L-940 | 684 | 4.000 | 9.000 | 2.500 | 641 | 226 | 0.1575 | 0.3543 | L-940 |
L-840ZZ | - | 4.000 | 8.000 | 3.000 | 391 | 140 | 0.1575 | 0.3150 | L-840ZZ |
L-740ZZ | 674ZZ | 4.000 | 7.000 | 2.500 | 252 | 106 | 0.1575 | 0.2756 | L-740ZZ |
R-1030ZZ | 623ZZ | 3.000 | 10.000 | 4.000 | 641 | 226 | 0.1181 | 0.3937 | R-1030ZZ |
R-1030 | 623 | 3.000 | 10.000 | 4.000 | 641 | 226 | 0.1181 | 0.3937 | R-1030 |
R-930ZZY04 | - | 3.000 | 9.000 | 4.000 | 634 | 219 | 0.1181 | 0.3543 | R-930ZZY04 |
R-830X10ZZ | - | 3.000 | 8.000 | 4.000 | 553 | 176 | 0.1181 | 0.3150 | R-830X10ZZ |
R-830ZZ | - | 3.000 | 8.000 | 4.000 | 553 | 176 | 0.1181 | 0.3150 | R-830ZZ |
R-830 | 693 | 3.000 | 8.000 | 3.000 | 553 | 176 | 0.1181 | 0.3150 | R-830 |
L-730ZZ | - | 3.000 | 7.000 | 3.000 | 384 | 129 | 0.1181 | 0.2756 | L-730ZZ |
L-730 | 683 | 3.000 | 7.000 | 2.000 | 384 | 129 | 0.1181 | 0.2756 | L-730 |
L-630ZZ | - | 3.000 | 6.000 | 2.500 | 206 | 73 | 0.1181 | 0.2362 | L-630ZZ |
L-630 | 673 | 3.000 | 6.000 | 2.000 | 206 | 73 | 0.1181 | 0.2362 | L-630 |
R-825ZZ | - | 2.500 | 8.000 | 4.000 | 553 | 176 | 0.0984 | 0.3150 | R-825ZZ |
R-725ZZ | - | 2.500 | 7.000 | 3.500 | 380 | 126 | 0.0984 | 0.2756 | R-725ZZ |
L-625ZZ | - | 2.500 | 6.000 | 2.600 | 206 | 73 | 0.0984 | 0.2362 | L-625ZZ |
R-720ZZ | - | 2.000 | 7.000 | 3.500 | 380 | 126 | 0.0787 | 0.2756 | R-720ZZ |
R-620ZZY52 | - | 2.000 | 6.000 | 2.500 | 330 | 99 | 0.0787 | 0.2362 | R-620ZZY52 |
R-620W52 | - | 2.000 | 6.000 | 2.500 | 330 | 99 | 0.0787 | 0.2362 | R-620W52 |
R-620ZZ | - | 2.000 | 6.000 | 3.000 | 330 | 99 | 0.0787 | 0.2362 | R-620ZZ |
L-520X9ZZW52 | - | 2.000 | 5.000 | 2.500 | 186 | 58 | 0.0787 | 0.1969 | L-520X9ZZW52 |
L-520ZZW52 | - | 2.000 | 5.000 | 2.500 | 187 | 59 | 0.0787 | 0.1969 | L-520ZZW52 |
L-520W52 | - | 2.000 | 5.000 | 2.500 | 187 | 59 | 0.0787 | 0.1969 | L-520W52 |
L-520ZZ | - | 2.000 | 5.000 | 2.300 | 187 | 59 | 0.0787 | 0.1969 | L-520ZZ |
L-520 | 682 | 2.000 | 5.000 | 1.500 | 187 | 59 | 0.0787 | 0.1969 | L-520 |
L-415X5ZZ | 68/1.5ZZ | 1.500 | 4.000 | 2.000 | 113 | 34 | 0.0591 | 0.1575 | L-415X5ZZ |
L-415 | 68/1.5 | 1.500 | 4.000 | 1.200 | 125 | 38 | 0.0591 | 0.1575 | L-415 |
L-310 | 681 | 1.000 | 3.000 | 1.000 | 80 | 23 | 0.0394 | 0.1181 | L-310 |
Flanged deep groove ball bearings
スクロールできます
NMB Parts No. | ISO/JIS | Inner Diameter(d) [mm] |
Outer Diameter(D) [mm] |
Width(B) [mm] |
Dynamic Load Rating(Cr) [N] |
Static Load Rating(Cor) [N] |
Inner Diameter(d) [in] |
Outer Diameter(D) [in] |
CAD Data |
---|---|---|---|---|---|---|---|---|---|
RIF-1438DD | - | 9.525 | 22.225 | 7.142 | 3297 | 1368 | 0.3750 | 0.8750 | RIF-1438DD |
RIF-1438KK | - | 9.525 | 22.225 | 7.142 | 3297 | 1368 | 0.3750 | 0.8750 | RIF-1438KK |
DDRIF-1438ZZ | - | 9.525 | 22.225 | 7.142 | 3297 | 1368 | 0.3750 | 0.8750 | DDRIF-1438ZZ |
DDRIF-8516ZZ | - | 7.938 | 12.700 | 3.967 | 878 | 419 | 0.3125 | 0.5000 | DDRIF-8516ZZ |
DDRIF-8516 | - | 7.938 | 12.700 | 3.967 | 878 | 419 | 0.3125 | 0.5000 | DDRIF-8516 |
RF-4HH | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | RF-4HH |
DDRF-4HH | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | DDRF-4HH |
DDRIF-814ZZ | - | 6.350 | 12.700 | 4.762 | 828 | 374 | 0.2500 | 0.5000 | DDRIF-814ZZ |
DDRIF-814 | - | 6.350 | 12.700 | 3.175 | 828 | 374 | 0.2500 | 0.5000 | DDRIF-814 |
DDRIF-614ZZ | - | 6.350 | 9.525 | 3.175 | 417 | 205 | 0.2500 | 0.3750 | DDRIF-614ZZ |
DDRIF-614 | - | 6.350 | 9.525 | 3.175 | 417 | 205 | 0.2500 | 0.3750 | DDRIF-614 |
DDRF-3ZZ | - | 4.762 | 12.700 | 4.978 | 1306 | 487 | 0.1875 | 0.5000 | DDRF-3ZZ |
DDRF-3 | - | 4.762 | 12.700 | 3.967 | 1306 | 487 | 0.1875 | 0.5000 | DDRF-3 |
DDRIF-6632ZZ | - | 4.762 | 9.525 | 3.175 | 712 | 271 | 0.1875 | 0.3750 | DDRIF-6632ZZ |
DDRIF-6632 | - | 4.762 | 9.525 | 3.175 | 712 | 271 | 0.1875 | 0.3750 | DDRIF-6632 |
DDRIF-5632ZZ | - | 4.762 | 7.938 | 3.175 | 391 | 142 | 0.1875 | 0.3125 | DDRIF-5632ZZ |
DDRIF-5632 | - | 4.762 | 7.938 | 2.779 | 391 | 142 | 0.1875 | 0.3125 | DDRIF-5632 |
DDRIF-5532ZZ | - | 3.967 | 7.938 | 3.175 | 391 | 142 | 0.1562 | 0.3125 | DDRIF-5532ZZ |
DDRIF-618ZZ | - | 3.175 | 9.525 | 3.571 | 563 | 183 | 0.1250 | 0.3750 | DDRIF-618ZZ |
DDRIF-618 | - | 3.175 | 9.525 | 2.779 | 563 | 183 | 0.1250 | 0.3750 | DDRIF-618 |
DDRF-2ZZ | - | 3.175 | 9.525 | 3.967 | 641 | 226 | 0.1250 | 0.3750 | DDRF-2ZZ |
DDRF-2 | - | 3.175 | 9.525 | 3.967 | 641 | 226 | 0.1250 | 0.3750 | DDRF-2 |
DDRIF-518ZZ | - | 3.175 | 7.938 | 3.571 | 563 | 183 | 0.1250 | 0.3125 | DDRIF-518ZZ |
DDRIF-518 | - | 3.175 | 7.938 | 2.779 | 563 | 183 | 0.1250 | 0.3125 | DDRIF-518 |
DDRIF-418ZZ | - | 3.175 | 6.350 | 2.779 | 285 | 97 | 0.1250 | 0.2500 | DDRIF-418ZZ |
DDRIF-418 | - | 3.175 | 6.350 | 2.380 | 285 | 97 | 0.1250 | 0.2500 | DDRIF-418 |
DDRIF-5ZZ | - | 2.380 | 7.938 | 3.571 | 563 | 183 | 0.0937 | 0.3125 | DDRIF-5ZZ |
DDRIF-5 | - | 2.380 | 7.938 | 2.779 | 563 | 183 | 0.0937 | 0.3125 | DDRIF-5 |
DDRIF-3332ZZ | - | 2.380 | 4.762 | 2.380 | 187 | 59 | 0.0937 | 0.1875 | DDRIF-3332ZZ |
DDRIF-3332 | - | 2.380 | 4.762 | 1.588 | 187 | 59 | 0.0937 | 0.1875 | DDRIF-3332 |
DDRIF-4ZZ | - | 1.984 | 6.350 | 3.571 | 330 | 99 | 0.0781 | 0.2500 | DDRIF-4ZZ |
DDRIF-4 | - | 1.984 | 6.350 | 2.380 | 330 | 99 | 0.0781 | 0.2500 | DDRIF-4 |
DDRIF-3 | - | 1.397 | 4.762 | 1.984 | 264 | 71 | 0.0550 | 0.1875 | DDRIF-3 |
DDRIF-2X2 | - | 1.016 | 3.175 | 1.191 | 106 | 28 | 0.0400 | 0.1250 | DDRIF-2X2 |
DDRF-2210X2HH | F6900ZZ | 10.000 | 22.000 | 6.000 | 2697 | 1273 | 0.3937 | 0.8661 | DDRF-2210X2HH |
DDLF-1910ZZ | - | 10.000 | 19.000 | 7.000 | 2123 | 985 | 0.3937 | 0.7480 | DDLF-1910ZZ |
DDLF-1790ZZ | - | 9.000 | 17.000 | 5.000 | 1724 | 813 | 0.3543 | 0.6693 | DDLF-1790ZZ |
DDLF-1790 | F689 | 9.000 | 17.000 | 4.000 | 1724 | 813 | 0.3543 | 0.6693 | DDLF-1790 |
RF-2280HH | F608ZZ | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | RF-2280HH |
RF-2280 | F608 | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | RF-2280 |
DDRF-2280HH | F608ZZ | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | DDRF-2280HH |
DDRF-2280 | F608 | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | DDRF-2280 |
DDRF-1980DD | F698DD | 8.000 | 19.000 | 6.000 | 2463 | 1059 | 0.3150 | 0.7480 | DDRF-1980DD |
DDRF-1980ZZ | F698ZZ | 8.000 | 19.000 | 6.000 | 2240 | 912 | 0.3150 | 0.7480 | DDRF-1980ZZ |
DDRF-1980 | F698 | 8.000 | 19.000 | 6.000 | 2240 | 912 | 0.3150 | 0.7480 | DDRF-1980 |
LF-1680HH | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | LF-1680HH |
DDLF-1680HH | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | DDLF-1680HH |
DDLF-1680 | F688 | 8.000 | 16.000 | 4.000 | 1606 | 712 | 0.3150 | 0.6299 | DDLF-1680 |
LF-1480DD | - | 8.000 | 14.000 | 4.000 | 819 | 386 | 0.3150 | 0.5512 | LF-1480DD |
LF-1480X3ZZ | - | 8.000 | 14.000 | 4.000 | 878 | 419 | 0.3150 | 0.5512 | LF-1480X3ZZ |
DDLF-1480ZZ | - | 8.000 | 14.000 | 4.000 | 819 | 386 | 0.3150 | 0.5512 | DDLF-1480ZZ |
DDLF-1480 | - | 8.000 | 14.000 | 3.500 | 819 | 386 | 0.3150 | 0.5512 | DDLF-1480 |
DDLF-1280DD | - | 8.000 | 12.000 | 3.500 | 506 | 249 | 0.3150 | 0.4724 | DDLF-1280DD |
DDLF-1280ZZ | - | 8.000 | 12.000 | 3.500 | 506 | 249 | 0.3150 | 0.4724 | DDLF-1280ZZ |
DDLF-1280 | F678 | 8.000 | 12.000 | 2.500 | 506 | 249 | 0.3150 | 0.4724 | DDLF-1280 |
DDRF-2270HH | F627ZZ | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | DDRF-2270HH |
DDRF-2270 | F627 | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | DDRF-2270 |
DDRF-1970DD | F607DD | 7.000 | 19.000 | 6.000 | 2240 | 912 | 0.2756 | 0.7480 | DDRF-1970DD |
DDRF-1970ZZ | F607ZZ | 7.000 | 19.000 | 6.000 | 2240 | 912 | 0.2756 | 0.7480 | DDRF-1970ZZ |
DDLF-1470ZZ | - | 7.000 | 14.000 | 5.000 | 1175 | 511 | 0.2756 | 0.5512 | DDLF-1470ZZ |
DDLF-1470 | F687 | 7.000 | 14.000 | 3.500 | 1175 | 511 | 0.2756 | 0.5512 | DDLF-1470 |
DDLF-1370ZZ | - | 7.000 | 13.000 | 4.000 | 880 | 414 | 0.2756 | 0.5118 | DDLF-1370ZZ |
DDLF-1370 | - | 7.000 | 13.000 | 3.000 | 880 | 414 | 0.2756 | 0.5118 | DDLF-1370 |
DDLF-1170ZZ | - | 7.000 | 11.000 | 3.000 | 449 | 199 | 0.2756 | 0.4331 | DDLF-1170ZZ |
DDLF-1170 | F677 | 7.000 | 11.000 | 2.500 | 449 | 199 | 0.2756 | 0.4331 | DDLF-1170 |
RF-1960ZZ | F626ZZ | 6.000 | 19.000 | 6.000 | 2805 | 1060 | 0.2362 | 0.7480 | RF-1960ZZ |
DDRF-1960ZZ | F626ZZ | 6.000 | 19.000 | 6.000 | 2805 | 1060 | 0.2362 | 0.7480 | DDRF-1960ZZ |
DDRF-1960 | F626 | 6.000 | 19.000 | 6.000 | 2805 | 1060 | 0.2362 | 0.7480 | DDRF-1960 |
RF-1760X2ZZ | F606ZZ | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | RF-1760X2ZZ |
DDRF-1760X2ZZ | F606ZZ | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | DDRF-1760X2ZZ |
DDRF-1760X2 | F606 | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | DDRF-1760X2 |
DDRF-1560ZZ | F696ZZ | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | DDRF-1560ZZ |
DDRF-1560 | F696 | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | DDRF-1560 |
LF-1360ZZ | - | 6.000 | 13.000 | 5.000 | 1083 | 438 | 0.2362 | 0.5118 | LF-1360ZZ |
DDLF-1360ZZ | - | 6.000 | 13.000 | 5.000 | 1083 | 438 | 0.2362 | 0.5118 | DDLF-1360ZZ |
DDLF-1360 | F686 | 6.000 | 13.000 | 3.500 | 1083 | 438 | 0.2362 | 0.5118 | DDLF-1360 |
LF-1260ZZ | - | 6.000 | 12.000 | 4.000 | 831 | 363 | 0.2362 | 0.4724 | LF-1260ZZ |
DDLF-1260ZZ | - | 6.000 | 12.000 | 4.000 | 831 | 363 | 0.2362 | 0.4724 | DDLF-1260ZZ |
DDLF-1260 | - | 6.000 | 12.000 | 3.000 | 831 | 363 | 0.2362 | 0.4724 | DDLF-1260 |
LF-1060ZZ | - | 6.000 | 10.000 | 3.000 | 457 | 194 | 0.2362 | 0.3937 | LF-1060ZZ |
DDLF-1060ZZ | - | 6.000 | 10.000 | 3.000 | 457 | 194 | 0.2362 | 0.3937 | DDLF-1060ZZ |
DDLF-1060 | F676 | 6.000 | 10.000 | 2.500 | 457 | 194 | 0.2362 | 0.3937 | DDLF-1060 |
DDRF-1950ZZ | F635ZZ | 5.000 | 19.000 | 6.000 | 2805 | 1060 | 0.1969 | 0.7480 | DDRF-1950ZZ |
DDRF-1950 | F635 | 5.000 | 19.000 | 6.000 | 2805 | 1060 | 0.1969 | 0.7480 | DDRF-1950 |
DDRF-1650HH | F625ZZ | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | DDRF-1650HH |
DDRF-1650 | F625 | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | DDRF-1650 |
RF-1450ZZ | F605ZZ | 5.000 | 14.000 | 5.000 | 1329 | 508 | 0.1969 | 0.5512 | RF-1450ZZ |
DDRF-1450ZZ | F605ZZ | 5.000 | 14.000 | 5.000 | 1329 | 508 | 0.1969 | 0.5512 | DDRF-1450ZZ |
DDRF-1450 | F605 | 5.000 | 14.000 | 5.000 | 1329 | 508 | 0.1969 | 0.5512 | DDRF-1450 |
DDRF-1350ZZ | F695ZZ | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | DDRF-1350ZZ |
DDRF-1350 | F695 | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | DDRF-1350 |
LF-1150ZZ | - | 5.000 | 11.000 | 5.000 | 714 | 276 | 0.1969 | 0.4331 | LF-1150ZZ |
DDLF-1150ZZ | - | 5.000 | 11.000 | 5.000 | 714 | 276 | 0.1969 | 0.4331 | DDLF-1150ZZ |
DDLF-1150 | F685 | 5.000 | 11.000 | 3.000 | 714 | 276 | 0.1969 | 0.4331 | DDLF-1150 |
LF-1050ZZ | - | 5.000 | 10.000 | 4.000 | 714 | 276 | 0.1969 | 0.3937 | LF-1050ZZ |
DDLF-1050ZZ | - | 5.000 | 10.000 | 4.000 | 714 | 276 | 0.1969 | 0.3937 | DDLF-1050ZZ |
DDLF-1050 | - | 5.000 | 10.000 | 3.000 | 714 | 276 | 0.1969 | 0.3937 | DDLF-1050 |
DDLF-950ZZ | - | 5.000 | 9.000 | 3.000 | 495 | 207 | 0.1969 | 0.3543 | DDLF-950ZZ |
DDLF-950 | - | 5.000 | 9.000 | 2.500 | 495 | 207 | 0.1969 | 0.3543 | DDLF-950 |
DDLF-850ZZ | - | 5.000 | 8.000 | 2.500 | 274 | 130 | 0.1969 | 0.3150 | DDLF-850ZZ |
DDLF-850 | F675 | 5.000 | 8.000 | 2.000 | 274 | 130 | 0.1969 | 0.3150 | DDLF-850 |
DDRF-1640ZZ | F634ZZ | 4.000 | 16.000 | 5.000 | 1735 | 671 | 0.1575 | 0.6299 | DDRF-1640ZZ |
DDRF-1340ZZ | F624ZZ | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | DDRF-1340ZZ |
DDRF-1340 | F624 | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | DDRF-1340 |
DDRF-1240ZZ | F604ZZ | 4.000 | 12.000 | 4.000 | 959 | 347 | 0.1575 | 0.4724 | DDRF-1240ZZ |
DDRF-1240 | F604 | 4.000 | 12.000 | 4.000 | 959 | 347 | 0.1575 | 0.4724 | DDRF-1240 |
DDRF-1140ZZ | F694ZZ | 4.000 | 11.000 | 4.000 | 714 | 276 | 0.1575 | 0.4331 | DDRF-1140ZZ |
DDLF-1040ZZ | - | 4.000 | 10.000 | 4.000 | 708 | 266 | 0.1575 | 0.3937 | DDLF-1040ZZ |
DDLF-1040 | - | 4.000 | 10.000 | 3.000 | 708 | 266 | 0.1575 | 0.3937 | DDLF-1040 |
DDLF-940ZZ | - | 4.000 | 9.000 | 4.000 | 641 | 226 | 0.1575 | 0.3543 | DDLF-940ZZ |
DDLF-940 | F684 | 4.000 | 9.000 | 2.500 | 641 | 226 | 0.1575 | 0.3543 | DDLF-940 |
DDLF-840ZZ | - | 4.000 | 8.000 | 3.000 | 391 | 140 | 0.1575 | 0.3150 | DDLF-840ZZ |
DDLF-840 | - | 4.000 | 8.000 | 2.000 | 391 | 140 | 0.1575 | 0.3150 | DDLF-840 |
DDLF-740ZZ | - | 4.000 | 7.000 | 2.500 | 252 | 106 | 0.1575 | 0.2756 | DDLF-740ZZ |
DDLF-740 | F674 | 4.000 | 7.000 | 2.000 | 252 | 106 | 0.1575 | 0.2756 | DDLF-740 |
DDRF-1030ZZ | F623ZZ | 3.000 | 10.000 | 4.000 | 641 | 226 | 0.1181 | 0.3937 | DDRF-1030ZZ |
DDRF-930ZZ | - | 3.000 | 9.000 | 5.000 | 634 | 219 | 0.1181 | 0.3543 | DDRF-930ZZ |
DDRF-830ZZ | - | 3.000 | 8.000 | 4.000 | 553 | 176 | 0.1181 | 0.3150 | DDRF-830ZZ |
DDRF-830 | F693 | 3.000 | 8.000 | 3.000 | 553 | 176 | 0.1181 | 0.3150 | DDRF-830 |
DDLF-730ZZ | - | 3.000 | 7.000 | 3.000 | 384 | 129 | 0.1181 | 0.2756 | DDLF-730ZZ |
DDLF-730 | F683 | 3.000 | 7.000 | 2.000 | 384 | 129 | 0.1181 | 0.2756 | DDLF-730 |
DDLF-630ZZ | - | 3.000 | 6.000 | 2.500 | 206 | 73 | 0.1181 | 0.2362 | DDLF-630ZZ |
DDLF-630 | F673 | 3.000 | 6.000 | 2.000 | 206 | 73 | 0.1181 | 0.2362 | DDLF-630 |
DDRF-825ZZ | - | 2.500 | 8.000 | 4.000 | 553 | 176 | 0.0984 | 0.3150 | DDRF-825ZZ |
DDRF-725ZZ | - | 2.500 | 7.000 | 3.500 | 380 | 126 | 0.0984 | 0.2756 | DDRF-725ZZ |
DDLF-625ZZ | - | 2.500 | 6.000 | 2.600 | 206 | 73 | 0.0984 | 0.2362 | DDLF-625ZZ |
DDRF-720ZZ | - | 2.000 | 7.000 | 3.500 | 380 | 126 | 0.0787 | 0.2756 | DDRF-720ZZ |
DDRF-620ZZ | - | 2.000 | 6.000 | 3.000 | 330 | 99 | 0.0787 | 0.2362 | DDRF-620ZZ |
DDRF-620 | F692 | 2.000 | 6.000 | 2.300 | 279 | 89 | 0.0787 | 0.2362 | DDRF-620 |
DDLF-520ZZ | - | 2.000 | 5.000 | 2.300 | 187 | 59 | 0.0787 | 0.1969 | DDLF-520ZZ |
DDLF-520 | F682 | 2.000 | 5.000 | 1.500 | 187 | 59 | 0.0787 | 0.1969 | DDLF-520 |
DDRF-615ZZ | - | 1.500 | 6.000 | 3.000 | 324 | 97 | 0.0591 | 0.2362 | DDRF-615ZZ |
DDRF-515ZZ | - | 1.500 | 5.000 | 2.600 | 184 | 57 | 0.0591 | 0.1969 | DDRF-515ZZ |
DDRF-515 | F69/1.5 | 1.500 | 5.000 | 2.000 | 184 | 57 | 0.0591 | 0.1969 | DDRF-515 |
DDLF-415ZZ | - | 1.500 | 4.000 | 2.000 | 125 | 38 | 0.0591 | 0.1575 | DDLF-415ZZ |
DDLF-415 | F68/1.5 | 1.500 | 4.000 | 1.200 | 125 | 38 | 0.0591 | 0.1575 | DDLF-415 |
DDLF-310 | F681 | 1.000 | 3.000 | 1.000 | 80 | 23 | 0.0394 | 0.1181 | DDLF-310 |
Deep groove ball bearings with locating snap ring
スクロールできます
NMB Parts No. | ISO/JIS | Inner Diameter(d) [mm] |
Outer Diameter(D) [mm] |
Width(B) [mm] |
Dynamic Load Rating(Cr) [N] |
Static Load Rating(Cor) [N] |
Inner Diameter(d) [in] |
Outer Diameter(D) [in] |
CAD Data |
---|---|---|---|---|---|---|---|---|---|
RNR-2412X3KK | 6901ZZNR | 12.000 | 24.000 | 6.000 | 3082 | 1433 | 0.4724 | 0.9449 | RNR-2412X3KK |
RNR-2210X9KKSD21 | 6900ZZNR | 10.000 | 22.000 | 6.000 | 2697 | 1273 | 0.3937 | 0.8661 | RNR-2210X9KKSD21 |
608DDNRSD06 | 608DDNR | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | 608DDNRSD06 |
608ZZNRSD06 | 608ZZNR | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | 608ZZNRSD06 |
LNR-1680DD | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | LNR-1680DD |
LNR-1680KK | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | LNR-1680KK |
RNR-4KK | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | RNR-4KK |
626DDNR | 626DDNR | 6.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2362 | 0.7480 | 626DDNR |
626ZZNR | 626ZZNR | 6.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2362 | 0.7480 | 626ZZNR |
RNR-1760X2DD | 606DDNR | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | RNR-1760X2DD |
RNR-1760X2ZZ | 606ZZNR | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | RNR-1760X2ZZ |
RNR-1560DD | 696DDNR | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | RNR-1560DD |
RNR-1560ZZ | 696ZZNR | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | RNR-1560ZZ |
LNR-1360X3ZZ | 686ZZNR | 6.000 | 13.000 | 5.000 | 831 | 363 | 0.2362 | 0.5118 | LNR-1360X3ZZ |
RNR-1350DD | 695DDNR | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | RNR-1350DD |
RNR-1350ZZ | 695ZZNR | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | RNR-1350ZZ |
Rotary Components
FDB Motor
スクロールできます
Parts | Rated Voltage [V] |
Rated Speed [rpm] |
Power at rated speed [W] |
Friction Torque at rated speed [mN・m] |
Current at rated Speed (without load) [A] |
|
---|---|---|---|---|---|---|
BLDC FDB SP2B | 5 | 3600 | 0.45 | 1.19 | 0.18 |
Electromagnetic Clutches and Brakes
Fan Motors
AC fan motors
AC fan motors
スクロールできます
Parts | Size (W) [mm] |
Size (H) [mm] |
Thickness(L) [mm] |
Rating Voltage [V] |
Max. Air Flow lower limit [m3/min] |
Max. Air Flow upper limit [m3/min] |
Max. Static Pressure lower limit [Pa] |
Max. Static Pressure upper limit [Pa] |
|
---|---|---|---|---|---|---|---|---|---|
11938SB | 119 | 119 | 38 | 100, 115, 200, 220, 230, 240 | 2.60 | 3.00 | 94.0 | 100.0 | |
11938MB Special Edition | 119 | 119 | 38 | 100, 115, 200, 220, 230, 240 | 2.50 | 2.90 | 63.8 | 76.5 | |
11938MB | 119 | 119 | 38 | 100, 115, 200, 220, 230, 240 | 2.50 | 2.90 | 63.8 | 76.5 | |
11925PB | 119 | 119 | 25 | 100, 115, 200, 220, 230, 240 | 1.70 | 2.00 | 41.2 | 41.2 | |
09238SB | 92 | 92 | 38 | 100, 115, 200, 220, 230, 240 | 1.05 | 1.25 | 63.0 | 80.0 | |
09225PB | 92 | 92 | 25 | 100, 115, 200, 220, 230, 240 | 0.80 | 0.98 | 43.1 | 60.9 | |
08038PB | 80 | 80 | 38 | 100, 115, 200, 220, 230, 240 | 0.75 | 0.90 | 34.4 | 49.1 | |
08025MB | 80 | 80 | 25 | 100, 115, 200, 220, 230, 240 | 0.57 | 0.68 | 39.0 | 55.0 | |
06030PB | 60 | 60 | 30 | 100, 115 | 0.20 | 0.26 | 13.7 | 22.6 |
AC fan motors for industrial use
スクロールできます
Parts | Power lower limit [W] |
Power upper limit [W] |
rated speed lower limit [min-1] |
rated speed upper limit [min-1] |
Max. Air Flow lower limit [m3/min] |
Max. Air Flow upper limit [m3/min] |
Max. Static Pressure lower limit [Pa] |
Max. Static Pressure upper limit [Pa] |
---|---|---|---|---|---|---|---|---|
PT13839 | 73 | 114 | 1350 | 1600 | 26.20 | 34.30 | 143.0 | 196.0 |
PT9833 | 103 | 190 | 2600 | 3100 | 17.70 | 23.50 | 166.0 | 305.0 |
PT8330 | 35 | 82 | 2500 | 3050 | 12.00 | 14.30 | 108.0 | 244.0 |
PT7126 | 37 | 75 | 2660 | 3250 | 7.60 | 10.00 | 130.0 | 220.0 |
RT6925 | 49 | 95 | 2450 | 3250 | 4.00 | 5.50 | 240.0 | 365.0 |
RT6323 | 35 | 58 | 2050 | 2900 | 3.10 | 4.20 | 170.0 | 243.0 |
PT5921 | 22 | 33 | 2500 | 3200 | 3.30 | 4.50 | 90.0 | 156.0 |
RT5318 | 27 | 35 | 2450 | 2950 | 1.60 | 2.30 | 155.0 | 223.0 |
PT4720 | 25 | 30 | 2550 | 3050 | 1.70 | 2.70 | 48.0 | 70.0 |
DC fan motors
General purpose
スクロールできます
Parts | Size (W) [mm] |
Size (H) [mm] |
Thickness(L) [mm] |
Rating Voltage [V] |
Max. Air Flow lower limit [m3/min] |
Max. Air Flow upper limit [m3/min] |
Max. Static Pressure lower limit [Pa] |
Max. Static Pressure upper limit [Pa] |
Associated Data |
---|---|---|---|---|---|---|---|---|---|
11938KA | 119 | 119 | 38 | 12, 24, 48 | 3.070 | 3.680 | 68.1 | 110.0 | PDF product catalog |
11925SA | 119 | 119 | 25 | 12, 24 | 1.900 | 3.630 | 28.5 | 89.0 | PDF product catalog |
09225SA | 92 | 92 | 25 | 12, 24 | 1.130 | 1.840 | 29.0 | 73.0 | PDF product catalog |
08025SA | 80 | 80 | 25 | 12, 24 | 0.860 | 1.700 | 21.5 | 82.0 | PDF product catalog |
06025SA | 60 | 60 | 25 | 12, 24 | 0.480 | 1.070 | 35.0 | 158.5 | PDF product catalog |
Industrial
スクロールできます
Parts | Size (W) [mm] |
Size (H) [mm] |
Thickness(L) [mm] |
Rating Voltage [V] |
Max. Air Flow lower limit [m3/min] |
Max. Air Flow upper limit [m3/min] |
Max. Static Pressure lower limit [Pa] |
Max. Static Pressure upper limit [Pa] |
Associated Data |
---|---|---|---|---|---|---|---|---|---|
12038VA(E-Type) | 120 | 120 | 38 | 24 | 4.000 | 6.900 | 150.0 | 370.0 | PDF product catalog |
09225VA | 92 | 92 | 25 | 12, 24 | 1.930 | 2.730 | 80.0 | 150.0 | PDF product catalog |
08025VE Potting II | 80 | 80 | 25 | 12, 24 | 1.480 | 2.070 | 96.8 | 189.6 | PDF product catalog |
06025VC Aluminum | 60 | 60 | 25 | 12, 24 | 1.090 | 1.090 | 235.0 | 235.0 | PDF product catalog |
06025VE Potting II | 60 | 60 | 25 | 12, 24 | 0.680 | 0.900 | 107.0 | 190.3 | PDF product catalog |
06025VA | 60 | 60 | 25 | 24 | 0.680 | 1.110 | 107.0 | 244.0 | PDF product catalog |
06020VA | 60 | 60 | 20 | 24 | 0.700 | 0.700 | 100.0 | 100.0 | PDF product catalog |
06015VA | 60 | 60 | 15 | 12, 24 | 0.450 | 0.550 | 48.3 | 67.7 | PDF product catalog |
04020VA | 40 | 40 | 20 | 12, 24 | 0.250 | 0.380 | 58.8 | 165.0 | PDF product catalog |
DC blower fan motors
スクロールできます
Parts | Size (W) [mm] |
Size (H) [mm] |
Thickness(L) [mm] |
Rating Voltage [V] |
Max. Air Flow lower limit [m3/min] |
Max. Air Flow upper limit [m3/min] |
Max. Static Pressure lower limit [Pa] |
Max. Static Pressure upper limit [Pa] |
|
---|---|---|---|---|---|---|---|---|---|
12032GA | 120 | 120 | 32 | 12, 24 | 0.74 | 0.94 | 145.0 | 260.0 | |
09533GA | 95 | 95 | 33 | 12, 24 | 0.58 | 0.81 | 152.0 | 342.0 | |
07530GA | 75 | 75 | 30 | 12, 24 | 0.21 | 0.30 | 50.0 | 110.0 | |
07525GA | 75 | 75 | 25 | 12, 24 | 0.22 | 0.27 | 94.0 | 153.0 | |
06920GA | 69 | 69 | 20 | 12, 24 | 0.14 | 0.20 | 64.0 | 150.0 | |
06023GA | 60 | 60 | 23 | 12 | 0.17 | 0.24 | 110.0 | 230.0 |
Semiconductors
Power Supply IC > Linear regulator (LDO)
スクロールできます
Series name | Output current [mA] |
Absolute maximum rating [V] |
Recommended operating voltage Min. [V] |
Recommended operating voltage Max. [V] |
Output voltage Min. [V] |
Output voltage Max. [V] |
Output voltage accuracy [%] |
No-Load Input Current [μA] |
Dropout Voltage [V] |
PSRR [dB] |
Output capacitor [μF] |
---|---|---|---|---|---|---|---|---|---|---|---|
MM4066 | 200 | 7.0 | 1.70 | 6.0 | 1.20 | 5.00 | ±1.0 | 7.5 | 0.35 | 50 | |
MM4047 | 450 | 6.0 | 2.20 | 5.5 | 1.80 | 4.50 | ±2.0 | 14.0 | 0.16 | 80 | 2.20 |
MM3871 | 300 | 7.0 | 2.00 | 6.5 | 1.00 | 5.00 | ±1.0 | 25.0 | 0.62 | 70 | 0.47 |
MM3866 | 200 | 7.0 | 1.70 | 6.0 | 1.20 | 5.00 | ±1.0 | 0.9 | 0.35 | 50 | |
MM3864 | 300 | 7.0 | 2.00 | 6.5 | 1.00 | 5.00 | ±1.0 | 20.0 | 0.24 | 75 | 1.00 |
MM3847 | 250 | 6.0 | 2.20 | 5.5 | 1.20 | 4.50 | ±2.0 | 14.0 | 0.09 | 80 | 2.20 |
MM3823 | 500 | 7.0 | 1.60 | 6.5 | 1.00 | 5.00 | ±1.0 | 60.0 | 0.25 | 65 | 1.00 |
MM3816 | 200 | 6.5 | 1.70 | 5.5 | 1.00 | 5.00 | ±1.0 | 42.0 | 0.30 | 75 | 1.00 |
MM3764 | 200 | 7.0 | 1.60 | 6.5 | 0.80 | 5.00 | ±1.0 | 20.0 | 0.08 | 75 | 1.00 |
MM3763 | 200 | 7.0 | 1.80 | 6.5 | 0.80 | 5.00 | ±1.0 | 25.0 | 0.40 | 70 | 0.47 |
MM3755 | 150 | 7.0 | 1.70 | 6.0 | 1.20 | 5.00 | ±0.8 | 0.9 | 0.28 | 50 | 0.10 |
MM3703 | 1000 | 7.0 | 1.60 | 6.5 | 1.00 | 5.00 | ±1.0 | 60.0 | 0.46 | 65 | 1.00 |
MM3702 | 1000 | 7.0 | 1.60 | 6.5 | 1.00 | 5.00 | ±1.0 | 60.0 | 0.46 | 65 | 1.00 |
MM3615 | 300 | 7.0 | 1.80 | 6.5 | 0.80 | 5.00 | ±1.0 | 90.0 | 0.24 | 70 | 1.00 |
MM3608 | 300 | 7.0 | 1.80 | 6.5 | 0.80 | 5.00 | ±1.0 | 90.0 | 0.24 | 70 | 1.00 |
MM3571 | 300 | 7.0 | 2.00 | 6.5 | 1.00 | 5.00 | ±1.0 | 25.0 | 0.62 | 70 | 0.47 |
MM3566 | 200 | 7.0 | 1.70 | 6.0 | 1.20 | 5.00 | ±1.0 | 0.9 | 0.35 | 50 | |
MM3534 | 150 | 7.0 | 1.70 | 6.0 | 1.20 | 5.00 | ±0.8 | 0.9 | 0.28 | 50 | 0.10 |
MM3532T | 150 | 7.0 | 1.60 | 6.0 | 1.20 | 5.00 | ±1.0 | 50.0 | 0.13 | 70 | 1.00 |
MM3532A | 500 | 6.5 | 1.60 | 6.0 | 1.20 | 5.00 | ±1.0 | 50.0 | 0.07 | 70 | 1.00 |
MM3529 | 1000 | 6.5 | 1.60 | 6.0 | 1.20 | 5.00 | ±1.0 | 50.0 | 0.50 | 70 | 1.00 |
MM3526 | 500 | 6.5 | 1.60 | 6.0 | 1.20 | 5.00 | ±1.0 | 50.0 | 0.25 | 70 | 1.00 |
MM3479 | 1000 | 6.5 | 1.60 | 6.0 | 1.20 | 5.00 | ±1.0 | 50.0 | 0.50 | 70 | 1.00 |
MM3478 | 500 | 6.5 | 1.60 | 6.0 | 1.20 | 5.00 | ±1.0 | 50.0 | 0.25 | 70 | 1.00 |
MM3464 | 300 | 7.0 | 2.00 | 6.5 | 1.00 | 5.00 | ±1.0 | 20.0 | 0.24 | 75 | 1.00 |
MM3416 | 200 | 6.5 | 1.70 | 5.5 | 1.00 | 5.00 | ±1.0 | 42.0 | 0.30 | 75 | 0.47 |
MM3411 | 200 | 7.0 | 1.80 | 6.5 | 0.80 | 5.00 | ±1.0 | 25.0 | 0.40 | 70 | 0.47 |
MM3404 | 200 | 7.0 | 1.60 | 6.5 | 0.80 | 5.00 | ±1.0 | 20.0 | 0.08 | 75 | 1.00 |
MM3376 | 150 | 6.5 | 1.10 | 6.0 | 0.80 | 5.00 | ±2.0 | 1.7 | 0.05 | 0.10 | |
MM312x | 250 | 12.0 | 10.0 | 1.80 | 6.00 | ±2.0 | 1.0 | 0.40 | 0.10 | ||
MM1998 | 200 | -12.0 | -10.00 | -2.0 | -5.00 | -1.10 | ±1.0 | 160.0 | 0.50 | 70 | 1.00 |
MM1937 | 300 | 16.0 | 6.50 | 14.0 | 3.00 | 10.00 | ±2.0 | 300.0 | 0.30 | 70 | 2.20 |
MM1936 | 100 | 16.0 | 3.40 | 14.0 | 3.00 | 8.00 | ±2.0 | 400.0 | 0.20 | 70 | 2.20 |
MM1926 | 250 | 16.0 | 2.50 | 14.0 | 3.00 | 10.00 | ±2.0 | 200.0 | 0.20 | 70 | 2.20 |
MM1920 | 150 | 6.5 | 1.10 | 6.0 | 0.40 | 1.50 | 170.0 | 65 | 1.00 | ||
MM1899 | 300 | 15.0 | 2.00 | 14.0 | 1.50 | 5.40 | ±1.0 | 140.0 | 0.35 | 70 | 1.00 |
MM1898 | 200 | -12.0 | -10.00 | -2.0 | -5.00 | -0.90 | ±1.0 | 160.0 | 0.50 | 70 | 1.00 |
MM1890 | 300 | 16.0 | 9.00 | 14.0 | 8.00 | 10.00 | ±2.0 | 75.0 | 0.45 | 60 | 1.00 |
MM1886 | 300 | 16.0 | 1.80 | 14.0 | 1.50 | 5.00 | ±2.0 | 75.0 | 0.45 | 70 | 1.00 |
MM1877 | 1000 | 15.0 | 2.20 | 14.0 | 1.50 | 5.00 | ±2.0 | 2000.0 | 0.25 | 70 | 1.00 |
MM1870 | 1500 | 12.0 | 1.20 | 10.0 | 0.90 | 5.00 | ±2.0 | 1000.0 | 0.26 | 65 | 1.00 |
MM1868 | 1000 | 12.0 | 1.15 | 10.0 | 0.90 | 2.00 | ±2.0 | 1000.0 | 0.18 | 65 | 1.00 |
MM1866 | 1000 | 12.0 | 2.20 | 10.0 | 1.50 | 5.00 | ±2.0 | 2500.0 | 0.20 | 65 | 1.00 |
MM1856 | 200 | 15.0 | 1.80 | 14.0 | 1.50 | 5.00 | ±2.0 | 75.0 | 0.30 | 70 | 1.00 |
MM1849 | 300 | 16.0 | 9.00 | 14.0 | 8.00 | 10.00 | ±2.0 | 75.0 | 0.45 | 60 | 1.00 |
MM1839 | 200 | 16.0 | 1.80 | 14.0 | 1.50 | 5.00 | ±2.0 | 85.0 | 0.30 | 70 | 1.00 |
MM1836 | 200 | 15.0 | 1.80 | 14.0 | 1.50 | 5.00 | ±2.0 | 75.0 | 0.30 | 70 | 1.00 |
Power Supply IC > Shunt Regulator
スクロールできます
Series name | Associated Data | Absolute maximum rating | Cathode to Anode voltage Min. [V] |
Cathode to Anode voltage Max. [V] |
Cathode current Min. [mA] |
Cathode current Max. [mA] |
Reference voltage Typ. [V] |
Reference voltage accuracy Typ. [%] |
Minimum cathode current Typ. [mA] |
Off-state cathode current Typ. [μA] |
Dynamic impedance Typ. [Ω] |
Package |
---|---|---|---|---|---|---|---|---|---|---|---|---|
MM1530JN | PDF product catalog | 13 | VREF | 12 | 0.08 | 30 | 1.240 | ±0.5 | 0.05 | 0.1 | 0.2 | SOT-23A |
MM1530EN | PDF product catalog | 12 | VREF | 12 | 0.30 | 15 | 1.270 | ±0.8 | 0.15 | 0.1 | 0.4 | SOT-23A |
MM1530DN | PDF product catalog | 12 | VREF | 12 | 0.30 | 30 | 1.240 | ±0.5 | 0.15 | 0.1 | 0.2 | SOT-23A |
MM1530DU | PDF product catalog | 12 | VREF | 12 | 0.30 | 30 | 1.250 | ±0.8 | 0.15 | 0.1 | 0.4 | SC-82ABB |
MM1530CU | PDF product catalog | 12 | VREF | 12 | 0.30 | 15 | 1.270 | ±0.8 | 0.15 | 0.1 | 0.4 | SC-82ABB |
MM1431GN | PDF product catalog | 35 | VREF | 35 | 0.60 | 50 | 2.495 | ±0.8 | 0.30 | 0.1 | 0.4 | SOT-23A |
MM1431FN | PDF product catalog | 35 | VREF | 35 | 0.60 | 50 | 2.495 | ±0.5 | 0.30 | 0.1 | 0.4 | SOT-23A |
MM1431EN | PDF product catalog | 35 | VREF | 35 | 0.60 | 50 | 2.495 | ±0.8 | 0.30 | 0.1 | 0.4 | SOT-23A |
MM1431DN | PDF product catalog | 35 | VREF | 35 | 0.60 | 50 | 2.495 | ±0.4 | 0.30 | 0.1 | 0.4 | SOT-23A |
MM1431DU | PDF product catalog | 35 | VREF | 35 | 0.60 | 50 | 2.495 | ±0.4 | 0.30 | 0.1 | 0.4 | SC-82ABB |
MM1431CU | PDF product catalog | 35 | VREF | 35 | 0.60 | 50 | 2.495 | ±0.8 | 0.30 | 0.1 | 0.4 | SC-82ABB |
Power Supply IC > AC input detection IC
スクロールできます
Parts | Associated Data | Absolute maximum rating [V] |
Recommended operating voltage Min. [V] |
Recommended operating voltage Max. [V] |
Package |
---|---|---|---|---|---|
MM3313 | PDF product catalog | 33.0 | 4.0 | 30.0 | SOP-8D |
Power Supply IC > AC-DC Converters
Primary
スクロールできます
Parts | Associated Data | Toporogy/Function Type | Recommended operating voltage Min. [V] |
VIN Max. [V] |
Rating [V] |
Switching frequency Min. [KHz] |
Switching frequency Max. [KHz] |
Package | Package2 |
---|---|---|---|---|---|---|---|---|---|
MM3661 | PDF product catalog | QR control | 8.0 | 24 | 500 | 108 | SOP-8J | SOP-10A | |
MM3663 | PDF product catalog | PWM control | 10.0 | 24 | 500 | 66 | 100 | SOP-8J | |
MM3665 | PDF product catalog | PWM+QR control | 10.0 | 90 | 740 | 22 | 100 | SOP-10A |
Secondary
スクロールできます
Parts | Associated Data | Toporogy/Function Type | Recommended operating voltage Min. [V] |
VIN Max. [V] |
Rating [V] |
Switching frequency Max. [KHz] |
Package |
---|---|---|---|---|---|---|---|
MM3669 | PDF product catalog | For LLC converter | 7.5 | 15 | 17 | 500 | SOP-10A |
MM3667 | PDF product catalog | For QR/LLC converter(MM3667A only) | 6.0 | 15 | 17 | 500 | SOP-8J |
MM3878 | PDF product catalog | For PWM/QR converter | 8.0 | 34 | 200 | 500 | SOT-26E |
Power Supply IC > Reset ICs
スクロールできます
Series name | Absolute maximum rating [V] |
Recommended operating voltage Min. [V] |
Recommended operating voltage Max. [V] |
Detection voltage Min. [V] |
Detection voltage Max. [V] |
Detection voltage accuracy [%] |
Consumption current [μA] |
---|---|---|---|---|---|---|---|
PST810 | 7.0 | 1.10 | 6.00 | 1.6 | 5.0 | ±1 | 0.50 |
PST809 | 7.0 | 1.10 | 6.00 | 1.6 | 5.0 | ±1 | 0.50 |
PST804 | 7.0 | 1.10 | 6.00 | 1.6 | 5.0 | ±1 | 0.50 |
PST803 | 7.0 | 1.10 | 6.00 | 1.6 | 5.0 | ±1 | 0.50 |
PST88xR | 6.0 | 1.20 | 5.50 | 1.6 | 4.6 | ±1.5 | 1.00 |
PST87xR | 6.0 | 1.20 | 5.50 | 1.6 | 4.6 | ±1.5 | 1.00 |
PST88xA | 6.0 | 1.20 | 5.50 | 1.6 | 4.6 | ±1.5 | 1.00 |
PST87xA | 6.0 | 1.20 | 5.50 | 1.6 | 4.6 | ±1.5 | 1.00 |
IC-PST598 | 12.0 | 12.00 | 2.3 | 4.5 | ±15mV | 15.00 | |
IC-PST597 | 12.0 | 12.00 | 2.3 | 4.5 | ±15mV | 15.00 | |
IC-PST596 | 12.0 | 12.00 | 2.3 | 4.5 | ±15mV | 15.00 | |
PST11D | 40.0 | 2.70 | 20.00 | 5.0 | 10.0 | ±2 | 1.70 |
PST114 | 40.0 | 2.70 | 20.00 | 5.0 | 10.0 | ±2 | 1.70 |
PST854A | 6.5 | 0.70 | 6.00 | 0.8 | 5.2 | ±1 | 0.35 |
PST853A | 6.5 | 0.70 | 6.00 | 0.8 | 5.2 | ±1 | 0.35 |
PST894R | 6.5 | 0.70 | 6.00 | 0.8 | 5.2 | ±1 | 0.35 |
PST893R | 6.5 | 0.70 | 6.00 | 0.8 | 5.2 | ±1 | 0.35 |
PST894B | 7.0 | 0.95 | 6.50 | 1.6 | 5.2 | ±1 | 0.35 |
PST893B | 7.0 | 0.95 | 6.50 | 1.6 | 5.2 | ±1 | 0.35 |
PST89EA | 7.0 | 0.95 | 6.50 | 1.2 | 5.2 | ±1 | 0.35 |
PST89DA | 7.0 | 0.95 | 6.50 | 1.2 | 5.2 | ±1 | 0.35 |
PST894A | 7.0 | 0.95 | 6.50 | 1.2 | 5.2 | ±1 | 0.35 |
PST893A | 7.0 | 0.95 | 6.50 | 1.2 | 5.2 | ±1 | 0.35 |
IC-PST84 | 12.0 | 0.70 | 10.00 | 0.8 | 6.0 | ±0.5 | 0.35 |
IC-PST83 | 12.0 | 0.70 | 10.00 | 0.8 | 6.0 | ±0.5 | 0.35 |
PST122D | 40.0 | 2.70 | 20.00 | 5.0 | 10.0 | ±2 | 3.70 |
PST122C | 40.0 | 3.70 | 20.00 | 5.0 | 10.0 | ±2 | 3.00 |
PST122B | 40.0 | 3.00 | 20.00 | 5.0 | 10.0 | ±2 | 3.00 |
PST122A | 40.0 | 2.70 | 20.00 | 5.0 | 10.0 | ±2 | 2.70 |
PST852A | 12.0 | 0.70 | 10.00 | 0.8 | 6.0 | ±0.5 | 0.35 |
PST851A | 12.0 | 0.70 | 10.00 | 0.8 | 6.0 | ±0.5 | 0.35 |
IC-PST86 | 7.0 | 0.95 | 6.50 | 1.2 | 5.2 | ±1 | 0.25 |
IC-PST82 | 12.0 | 0.70 | 10.00 | 0.8 | 6.0 | ±0.5 | 0.25 |
IC-PST81 | 12.0 | 0.70 | 10.00 | 0.8 | 6.0 | ±0.5 | 0.25 |
Motor IC > FAN Motor Driver IC
スクロールできます
Product Name | Operating Supply Voltage lower limit [V] |
Operating supply voltage upper limit [V] |
Operating temperature lower limit [deg.C] |
Operating temperature upper limit [deg.C] |
Associated Data |
---|---|---|---|---|---|
MM1784 | 2.8 | 14 | -40 | 90 | PDF Catalog |
Analog-to-digital convertor / Analog Front End IC > Analog Front End IC
Analog Front End IC
スクロールできます
Parts | Number of input channels [ch] |
Resolution [bit] |
Package | |
---|---|---|---|---|
MM3609ARRE | Resistance 2CH | 24 | PLP-24 | PDF product catalog |
Analog-to-digital convertor / Analog Front End IC > Analog to Digital Converter IC
SAR type analog-to-digital converter IC
Analog-to-digital convertor / Analog Front End IC > Transceivers IC
Power Semiconductor > IGBT (Insulated Gate Bipolar Transistor)
MR sereis IGBT low current range
スクロールできます
Parts | Associated Data | Gate-Emitter voltage VCES [V] |
Collector current IC [A] |
Collector-Emitter saturation voltage VCE(sat) @Tj=25deg C typical limit [V] |
Collector-Emitter saturation voltage VCE(sat) @Tj=25deg C upper limit [V] |
Gate Voltage VGES [V] |
Gate-Emitter threshold voltage VGE(th) lower limit [V] |
Gate-Emitter threshold voltage VGE(th) upper limit [V] |
Die size X [mm] |
Die size Y [mm] |
Junction temperature Tj [deg.C] |
---|---|---|---|---|---|---|---|---|---|---|---|
MMJ6535C00xx | PDF product catalog | 650 | 35 | 1.85 | 2.15 | -30 to 30 | 4.50 | 6.50 | 3.77 | 3.77 | -40 to 150 |
MMJ6530C00xx | PDF product catalog | 650 | 30 | 1.80 | 2.10 | -30 to 30 | 4.50 | 6.50 | 3.60 | 3.60 | -40 to 150 |
MMJ6525B00xx | PDF product catalog | 650 | 25 | 1.60 | 1.90 | -30 to 30 | 4.00 | 6.00 | 3.38 | 3.38 | -40 to 150 |
MMJ6515B00xx | PDF product catalog | 650 | 15 | 1.65 | 1.95 | -30 to 30 | 4.00 | 6.00 | 2.90 | 2.90 | -40 to 150 |
MMJ6512B00xx | PDF product catalog | 650 | 12 | 1.65 | 1.95 | -30 to 30 | 4.00 | 6.00 | 2.70 | 2.70 | -40 to 150 |
MR sereis IGBT middle current range
スクロールできます
Parts | Associated Data | Gate-Emitter voltage VCES [V] |
Collector current IC [A] |
Collector-Emitter saturation voltage VCE(sat) @Tj=25deg C typical limit [V] |
Collector-Emitter saturation voltage VCE(sat) @Tj=25deg C upper limit [V] |
Gate Voltage VGES [V] |
Gate-Emitter threshold voltage VGE(th) lower limit [V] |
Gate-Emitter threshold voltage VGE(th) upper limit [V] |
Die size X [mm] |
Die size Y [mm] |
Junction temperature Tj [deg.C] |
---|---|---|---|---|---|---|---|---|---|---|---|
MMJC5B0A01xx | PDF product catalog | 1250 | 200 | 1.85 | 2.15 | -30 to 30 | 5.00 | 6.80 | 11.90 | 11.90 | -40 to 175 |
MMJC5A5A01xx | PDF product catalog | 1250 | 150 | 1.85 | 2.15 | -30 to 30 | 5.00 | 6.80 | 10.50 | 10.50 | -40 to 175 |
MMJC5A0A01xx | PDF product catalog | 1250 | 100 | 1.85 | 2.15 | -30 to 30 | 5.00 | 6.80 | 8.80 | 8.80 | -40 to 175 |
MMJC575A01xx | PDF product catalog | 1250 | 75 | 1.85 | 2.15 | -30 to 30 | 5.00 | 6.80 | 7.90 | 7.90 | -40 to 175 |
MMJ65B0A02xx | PDF product catalog | 650 | 200 | 1.30 | 1.60 | -30 to 30 | 5.00 | 6.80 | 10.60 | 10.60 | -40 to 175 |
MMJ65A5A02xx | PDF product catalog | 650 | 150 | 1.30 | 1.60 | -30 to 30 | 5.00 | 6.80 | 9.30 | 9.30 | -40 to 175 |
MMJ65A0A02xx | PDF product catalog | 650 | 100 | 1.30 | 1.60 | -30 to 30 | 5.00 | 6.80 | 7.80 | 7.80 | -40 to 175 |
MMJ65B0A00xx | PDF product catalog | 650 | 200 | 1.50 | 1.80 | -30 to 30 | 5.00 | 6.80 | 10.60 | 10.60 | -40 to 175 |
MMJ65A5A00xx | PDF product catalog | 650 | 150 | 1.50 | 1.80 | -30 to 30 | 5.00 | 6.80 | 9.30 | 9.30 | -40 to 175 |
MMJ65A0A00xx | PDF product catalog | 650 | 100 | 1.50 | 1.80 | -30 to 30 | 5.00 | 6.80 | 7.80 | 7.80 | -40 to 175 |
MI sereis IGBT middle current range
スクロールできます
Parts | Associated Data | Gate-Emitter voltage VCES [V] |
Collector current IC [A] |
Collector-Emitter saturation voltage VCE(sat) @Tj=25deg C typical limit [V] |
Collector-Emitter saturation voltage VCE(sat) @Tj=25deg C upper limit [V] |
Gate Voltage VGES [V] |
Gate-Emitter threshold voltage VGE(th) lower limit [V] |
Gate-Emitter threshold voltage VGE(th) upper limit [V] |
Internal gate rasistor Rgint typical limit [Ω] |
Die size X [mm] |
Die size Y [mm] |
Junction temperature Tj [deg.C] |
---|---|---|---|---|---|---|---|---|---|---|---|---|
MMJC0B0G00xx | PDF product catalog | 1200 | 200 | 1.95 | 2.30 | -30 to 30 | 5.20 | 6.60 | 3.3 | 16.00 | 12.00 | -40 to 175 |
MMJC0A5G00xx | PDF product catalog | 1200 | 150 | 1.95 | 2.30 | -30 to 30 | 5.20 | 6.60 | 5.0 | 12.36 | 11.40 | -40 to 175 |
MMJC0A0G00xx | PDF product catalog | 1200 | 100 | 1.95 | 2.30 | -30 to 30 | 5.20 | 6.60 | 7.5 | 10.26 | 9.60 | -40 to 175 |
MMJC075G00xx | PDF product catalog | 1200 | 75 | 1.95 | 2.30 | -30 to 30 | 5.20 | 6.60 | 10.0 | 9.00 | 7.80 | -40 to 175 |
MMJC050G00xx | PDF product catalog | 1200 | 50 | 1.95 | 2.30 | -30 to 30 | 5.20 | 6.60 | 4.0 | 7.18 | 6.80 | -40 to 175 |
MMJC5B0F00xx | PDF product catalog | 1250 | 200 | 1.65 | 1.95 | -30 to 30 | 5.00 | 6.80 | 3.3 | 16.00 | 12.00 | -40 to 175 |
MMJC5A5F00xx | PDF product catalog | 1250 | 150 | 1.65 | 1.95 | -30 to 30 | 5.00 | 6.80 | 5.0 | 12.36 | 11.40 | -40 to 175 |
MMJC5A0F00xx | PDF product catalog | 1250 | 100 | 1.65 | 1.95 | -30 to 30 | 5.00 | 6.80 | 7.5 | 10.26 | 9.60 | -40 to 175 |
MMJC575F00xx | PDF product catalog | 1250 | 75 | 1.65 | 1.95 | -30 to 30 | 5.00 | 6.80 | 10.0 | 9.00 | 7.80 | -40 to 175 |
MMJC550F00xx | PDF product catalog | 1250 | 50 | 1.65 | 1.95 | -30 to 30 | 5.00 | 6.80 | 4.0 | 7.18 | 6.80 | -40 to 175 |
MMJ75B8F00xx | PDF product catalog | 750 | 275 | 1.30 | 1.60 | -20 to 20 | 5.10 | 6.50 | 1.7 | 10.60 | 10.60 | -40 to 175 |
MMJ65B0G00xx | PDF product catalog | 650 | 200 | 1.90 | 2.25 | -30 to 30 | 5.20 | 6.60 | 1.7 | 10.20 | 9.70 | -40 to 175 |
MMJ65A5G00xx | PDF product catalog | 650 | 150 | 1.90 | 2.25 | -30 to 30 | 5.20 | 6.60 | 1.7 | 7.90 | 9.70 | -40 to 175 |
MMJ65A0G00xx | PDF product catalog | 650 | 100 | 1.90 | 2.25 | -30 to 30 | 5.20 | 6.60 | 1.7 | 9.00 | 6.00 | -40 to 175 |
MMJ6575G00xx | PDF product catalog | 650 | 75 | 2.00 | 2.35 | -30 to 30 | 5.20 | 6.60 | 1.7 | 6.60 | 5.90 | -40 to 175 |
MMJ65B0F00xx | PDF product catalog | 650 | 200 | 1.45 | 1.75 | -30 to 30 | 5.20 | 6.60 | 1.7 | 10.20 | 9.70 | -40 to 175 |
MMJ65A5F00xx | PDF product catalog | 650 | 150 | 1.45 | 1.75 | -30 to 30 | 5.20 | 6.60 | 1.7 | 7.90 | 9.70 | -40 to 175 |
MMJ65A0F00xx | PDF product catalog | 650 | 100 | 1.45 | 1.75 | -30 to 30 | 5.20 | 6.60 | 1.7 | 6.00 | 9.00 | -40 to 175 |
MMJ6575F00xx | PDF product catalog | 650 | 75 | 1.55 | 1.85 | -30 to 30 | 5.20 | 6.60 | 1.7 | 6.60 | 5.90 | -40 to 175 |
MMJ6545G00xx | PDF product catalog | 650 | 45 | 2.00 | 2.35 | -30 to 30 | 5.20 | 6.60 | 4.98 | 4.98 | -40 to 175 | |
MMJ6545F00xx | PDF product catalog | 650 | 45 | 1.55 | 1.85 | -30 to 30 | 5.20 | 6.60 | 4.98 | 4.98 | -40 to 175 |
Power Semiconductor > FRD (Fast Recovery Diode)
MR Series FRD
スクロールできます
Parts | Associated Data | Reverse voltage VRR [V] |
Forward current IF [A] |
Forward voltage VF typical limit [V] |
Forward voltage VF upper limit [V] |
Die size X [mm] |
Die size Y [mm] |
Junction temperature Tj [deg.C] |
---|---|---|---|---|---|---|---|---|
MMKC5B0A00xx | PDF product catalog | 1250 | 200 | 2.10 | 2.60 | 9.30 | 9.30 | -40 to 175 |
MMKC5A5A00xx | PDF product catalog | 1250 | 150 | 2.10 | 2.60 | 8.20 | 8.20 | -40 to 175 |
MMKC5A0A00xx | PDF product catalog | 1250 | 100 | 2.10 | 2.60 | 6.80 | 6.80 | -40 to 175 |
MMKC575A00xx | PDF product catalog | 1250 | 75 | 2.10 | 2.60 | 5.80 | 5.80 | -40 to 175 |
MMK65B0A00xx | PDF product catalog | 650 | 200 | 1.70 | 2.20 | 7.00 | 7.00 | -40 to 175 |
MMK65A5A00xx | PDF product catalog | 650 | 150 | 1.70 | 2.20 | 6.00 | 6.00 | -40 to 175 |
MMK65A0A00xx | PDF product catalog | 650 | 100 | 1.70 | 2.20 | 5.00 | 5.00 | -40 to 175 |
MI Series FRD
スクロールできます
Parts | Associated Data | Reverse voltage VRR [V] |
Forward current IF [A] |
Forward voltage VF typical limit [V] |
Forward voltage VF upper limit [V] |
Die size X [mm] |
Die size Y [mm] |
Junction temperature Tj [deg.C] |
---|---|---|---|---|---|---|---|---|
MMKC5B0FA0xx | PDF product catalog | 1250 | 200 | 1.70 | 2.10 | 12.10 | 8.70 | -40 to 175 |
MMKC5B0F00xx | PDF product catalog | 1250 | 200 | 1.70 | 2.10 | 14.20 | 6.70 | -40 to 175 |
MMKC5A5F00xx | PDF product catalog | 1250 | 150 | 1.70 | 2.10 | 10.80 | 6.80 | -40 to 175 |
MMKC5A0F00xx | PDF product catalog | 1250 | 100 | 1.70 | 2.10 | 8.40 | 6.10 | -40 to 175 |
MMKC575F00xx | PDF product catalog | 1250 | 75 | 1.70 | 2.10 | 7.30 | 5.40 | -40 to 175 |
MMKC550F00xx | PDF product catalog | 1250 | 50 | 1.70 | 2.10 | 6.30 | 4.50 | -40 to 175 |
MMK75B8F00xx | PDF product catalog | 750 | 275 | 1.70 | 2.10 | 9.20 | 5.40 | -40 to 175 |
MMK65B0F00xx | PDF product catalog | 650 | 200 | 1.45 | 1.85 | 9.70 | 5.20 | -40 to 175 |
MMK65A5F00xx | PDF product catalog | 650 | 150 | 1.45 | 1.85 | 7.80 | 4.90 | -40 to 175 |
MMK65A0F00xx | PDF product catalog | 650 | 100 | 1.45 | 1.85 | 7.00 | 3.80 | -40 to 175 |
MMK6575F00xx | PDF product catalog | 650 | 75 | 1.45 | 1.85 | 5.40 | 3.80 | -40 to 175 |
Semiconductor Sensor
6-axis force torque sensor
スクロールできます
Product name | Associated Data | Power Supply [V] |
Operating Temperature Range [deg.C] |
Load rating (Force) [N] |
Load rating (Moment) [N・m] |
Accuracy [%F.S.] |
Interface | Package Size [mm] | Weight [g] |
---|---|---|---|---|---|---|---|---|---|
MMS101 | PDF product catalog | VDD:3.8 to 14.0V/ VDDIO:1.14 to 3.6V |
5 to 45 | ±40 | ±0.4 | ±5 | SPI | Φ9.6 × 9.0 | 3g |
Temperature Switch IC
スクロールできます
Parts | Outline | Operating Supply Voltage lower limit [V] |
Operating Supply Voltage upper limit [V] |
Operating Ambient Temperature lower limit [deg.C] |
Operating Ambient Temperature upper limit [deg.C] |
Detecting Temperature Accuracy lower limit [deg.C] |
Detecting Temperature Accuracy upper limit [deg.C] |
Supply current Typ. [μA] |
---|---|---|---|---|---|---|---|---|
MM3688 | The MM3688 series has a detection temperature of + 60 ° C ≤ TDET ≤ + 90 ° C, and is being developed in steps of 1.0 ° C. This product achieves an ultra-low current consumption of 0.12 μA typ., Which is ideal for mobile products that are concerned about power consumption. |
1.6 | 5.0 | -40 | 125 | -2 | 2 | 0.12 |
MM3588 | The MM3588 series has a detection temperature of + 60 ° C ≤ TDET ≤ + 90 ° C, and is being developed in steps of 1.0 ° C. This product has a control terminal (CE terminal) for turning the output on and off. |
1.6 | 5.0 | -30 | 125 | -2 | 2 | 1.50 |
MM3488 | The MM3488 series has a detection temperature in the range of high temperature detection type: + 25 ° C ≤ TDET ≤ + 90 ° C, low temperature detection type: -20 ≤ TDET ≤ + 24 ° C. We are developing products in steps of 1.0 ° C. |
1.6 | 5.0 | -30 | 105 | -2 | 2 | 1.50 |
Analog Temperature sensor IC
スクロールできます
Parts | Operating Supply Voltage lower limit [V] |
Operating Supply Voltage upper limit [V] |
Operating Ambient Temperature lower limit [deg.C] |
Operating Ambient Temperature upper limit [deg.C] |
Detecting Temperature Accuracy lower limit [deg.C] |
Detecting Temperature Accuracy upper limit [deg.C] |
Temperature sensitivity [mV/°C] |
Load Regulation(0~200μA) [mV] |
Package | Package2 |
---|---|---|---|---|---|---|---|---|---|---|
MM3154 | 2.4 | 6.5 | -40 | 100 | -2.5 | 2.5 | -8.2 | 0 to 1.0 | SC-82ABB | SSON-4B |
Digital Temperature sensor IC
スクロールできます
Parts | Resolution(1) [deg.C] |
Resolution(2) [bit] |
Data Update time [ms] |
Operating Voltage lower limit [V] |
Operating Voltage upper limit [V] |
Ambient operating temperature lower limit [deg.C] |
Ambient operating temperature upper limit [deg.C] |
Package | Package2 |
---|---|---|---|---|---|---|---|---|---|
MM3286 | 0.5 | 9 | 2 | 3 | 5.5 | -40 | 125 | SOP-8D | |
MM3285 | 0.5 | 9 | 2 | 3 | 5.5 | -40 | 125 | SOT-26A | SOT-25A |
Current sensor IC
Operational amplifier with a built-in spiral inductor
スクロールできます
Parts | Dimensional Drawing | Outline | Operating Ambient Temperature lower limit [deg.C] |
Operating Ambient Temperature upper limit [deg.C] |
VCC operating voltage lower limit [V] |
VCC operating voltage upper limit [V] |
BIAS operating voltage1 lower limit [V] |
BIAS operating voltage1 upper limit [V] |
Package | Associated Data |
---|---|---|---|---|---|---|---|---|---|---|
MM1969 | ![]() |
MM1969 contains a low noise operational amplifier with a spiral inductor. This inductor detects a magnetic field generated when AC current flows through the power line. MM1969 amplifies the detected electromotive force with the built-in low noise operational amplifier (the gain can be set by changing external resistance), and transmits analog signals to an external ADC and microcontroller. This makes it possible to detect AC current in a non-contact manner. |
-40 | 85 | 3 | 5.5 | 0.42 | 1 | SOP-8G | PDF product catalog |
Sensing Devices
Load cell > Compression type for industrial weighing systems
スクロールできます
Parts | External view | Features | Rated capacity |
---|---|---|---|
Double convex type load cell DC002 series with digital output | ![]() |
The built-in amplifier with excellent noise-proof enables high precision measurement. Approved OIML R60 Class C6. |
10t~40t |
Double convex type load cell CC002-※ series | ![]() |
Load cell for truck scale with stainless steel construction. Approved OIML R60 Class C6. |
10t~30t |
Beam type load cell CBC1-※ series | ![]() |
Suitable for the weighing systems of which mounting space is limited. | 49.03 N {5 kgf}~19.61 kN {2 tf} |
Low profile shear-web type CWV1-※ series | ![]() |
Shear-web type structure and strong in lateral load. | 19.61 kN {2 tf}~980.7 kN {100 tf} |
High overload capacity compression type CCR1(B)-※ series | ![]() |
Canister type load cell with safe overload capacity. | 4.903 kN {500 kgf}~196.1 kN {20 tf} |
Explosion-proof canister type load cell CCP1-※-Z series | ![]() |
Suitable for high explosion risk envitonment such as with flammable liquid or gas. | 1.961 kN {200 kgf}~196.1 kN {20 tf} |
Accurate canister type load cell CCP1(A)-※ series | ![]() |
Ideal for the weighing system of hopper & tank scales, etc. | 490.3 N {50 kgf}~196.1 kN{20 tf} |
Accurate compression type load cell CMP1-※ series | ![]() |
Precise low profile load cell with all stainless steel structure. | 2.452 kN {250 kgf}~196.1 kN {20 tf} |
Compact size compression type load cell CMM1J-※ series | ![]() |
Compact size, light weight load cell with all stainless steel construction. | 490.3 N {50 kgf}~19.61 kN {2 tf} |
Compact size compression type load cell CMM1R-※ series | ![]() |
Compact size, light weight load cell with all stainless steel construction. | 490.3 N {50 kgf}~19.61 kN {2 tf} |
Beam type load cell CBE1- ※ series (General Spec.) | ![]() |
Beam type load cell with all stainless structure. | 49.03 N {5 kgf}~1.961 kN {200 kgf} |
Beam type accurate load cell CBE1-C3- ※ series (OIML spec.) | ![]() |
Beam type load cell with all stainless structure. Rated capacity : CBE1-C3 (OIML standard) 5 kg ~ 200 kg |
10kg~200kg |
Square beam type load cell C2B1B-※ series (General Spec.) | ![]() |
Ideal for weighing system of floor / tank / hopper scale. | 200 kg (1.961 kN) ~ 2 ton (19.61 kN) |
Square beam type load cell C2B1B-*-C3 series (OIML spec.) | ![]() |
Ideal for weighing system of floor / tank / hopper scale. Available for OIML R60 Class C3 certified model. C2B1B (General Spec.) 200 kg {1.961 kN} ~ 2 t {19.61 kN} |
200kg~2t |
Square beam type load cell C3B1-*-NS series (General spec.) | ![]() |
Ideal for the measuring system of floor scale, tank scale and hopper. | 1.961 kN {200 kgf}~49.03 kN {5 tf} |
Square beam type accurate load C3B1-* series (OIML spec.) | ![]() |
Ideal for the measuring system of floor scale, tank scale and hopper. Available for OIML R60 Class C4 certified model. |
200kg~5t |
Double convex type compression service load cell CC010 series (General spec.) | ![]() |
Double convex mechanism. All stainless steel hermetic sealed structure. | 4.903 kN {500 kgf}~490.3 kN{50 tf} |
Double convex type compression service load cell CC010-C3 series (OIML spec.) | ![]() |
Double convex mechanism. All stainless steel hermetic sealed structure. Available for OIML R60 Class C3 certified model. |
2t~50t |
Load cell > Tension type for industrial weighing systems
スクロールできます

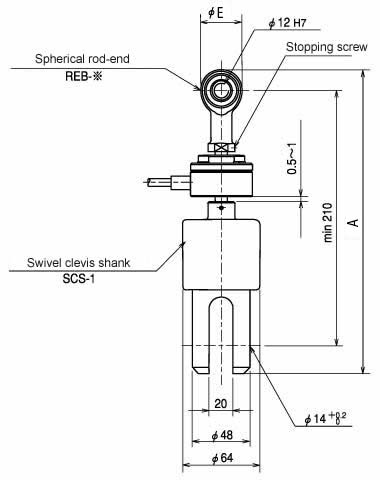

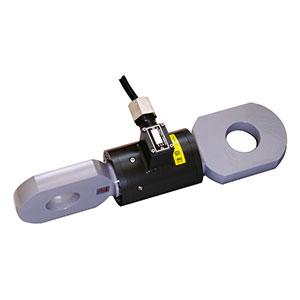

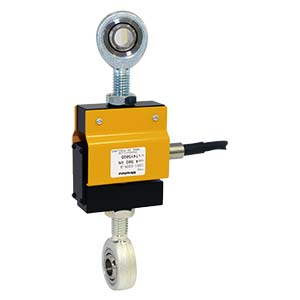

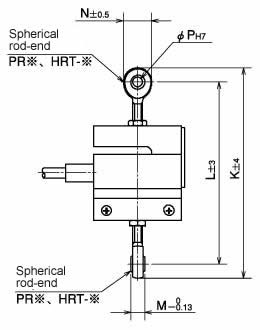

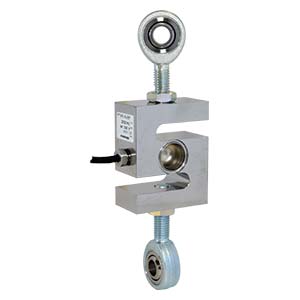

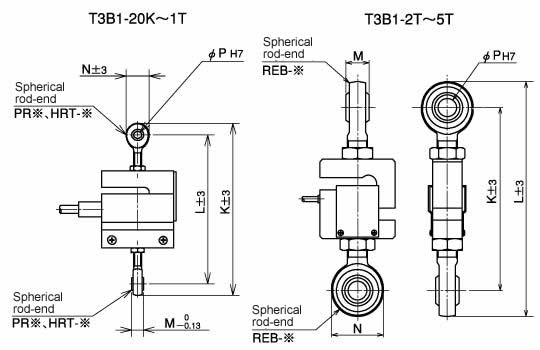

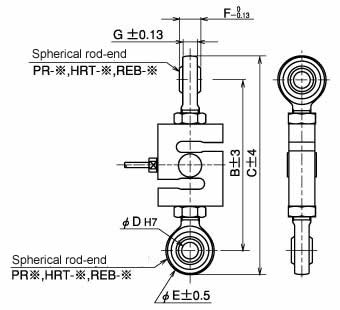

Parts | External view | Features | Rated capacity |
---|---|---|---|
Crane use | ![]() |
Suitable for tension force measurement such as crane wire rope. | 49.03 kN {5 tf}~490.3 kN{50 tf} |
Compact type(U3) | ![]() |
High accuracy, tension / compression service load cell | 196.1 N{20 kgf}~9.807 kN{1 tf} |
Compact light weight type | ![]() |
All stainless structure. UMM1R : Robot cable is attached. | 490.3 N{50 kgf}~19.61 kN{2 tf} |
Compact type | ![]() |
Suitable for high-accurate measurement. | 196.1 N {20 kgf}~49.03 kN {5 tf} |
S-beam type General spec. | ![]() |
Suitable for the weighing systems, such as hopper, tank, etc. | 1.961 N{200 kgf}~19.61 kN{2 tf} |
S-beam type OIML standard | ![]() |
Suitable for the weighing systems, such as hopper, tank, etc. | 1.961 N{200 kgf}~19.61 kN{2 tf} |
TCP1 series | ![]() |
Suitable for the weighing systems, such as hopper, tank, etc. | 490.3 N {50 kgf}~196.1 kN {20 tf} |
Load cell > For commercial scale
スクロールできます
Parts | External view | Outline | Rated capacity |
---|---|---|---|
Middle capacity scale for commercial scale | ![]() |
Applied for multi-point method platform scale. | 2.942 kN{300 kgf}~68.65 kN{7 tf} |
For commercial scale C2D1-* General standard | ![]() |
Available to multi-point application. Approved OIML R60 Class C4. | 100kg~800kg |
For commercial scale U2D1-* General standard | ![]() |
Middle capacity for electrical scale. | 29.42 N{3 kgf}~980.7 N{100 kgf} |
For commercial scale U2D1-*-C3 OIML standard | ![]() |
Middle capacity for electrical scale. OIML R60 certification | 6kg~25kg |
For commercial scale CB14-*-21 General standard | ![]() |
Suitable for health meter. | 980.7 N{100 kgf}~4.903 kN{500 kgf} |
For commercial scale CB14-*-C6 OIML standard | ![]() |
Suitable for health meter. OIML R60 certification. | 100kg~500kg |
Middle capacity for commercial scale (General spec) CB004S-* General standard | ![]() |
Middle capacity stainless steel construction, | 98.07 N{10 kgf}~980.7 N{100 kgf} |
For commercial scale CB004S-*-C3 OIML standard | ![]() |
Middle capacity stainless steel construction, OIML R60 certification. | 10kg~100kg |
Middle capacity for commercial scale CB004-* General standard | ![]() |
Middle capacity for electrical scale. | 98.07 N{10 kgf}~980.7 N{100 kgf} |
Middle capacity for commercial scale CB004-*-C4/-C6 OIML standard | ![]() |
Middle capacity for electrical scale. OIML R60 certification. | 10kg~100kg |
Middle capacity for commercial scale C2G1-*-A-C6 OIML standard | ![]() |
Middle capacity for electrical scale. OIML R60 certification. | 6kg~50kg |
Load cell > For special application
スクロールできます
Parts | External view | Outline | Rated capacity |
---|---|---|---|
Load beam bending type U3C1-B | ![]() |
Suitable for the weighing systems of which mounting space is limited. | 49.03 N {5 kgf}~980.7 N {100 kgf} |
Small capacity bending beam type UTA | ![]() |
The rated capacity is little higher than the UL series'. | 980.7 mN {100 gf}~19.61 N {2 kgf} |
Small capacity bending beam type UL/ULA | ![]() |
Excellent in small force measurement such as tension of yarn. | 19.61 mN {2 gf}~980.7 mN {100 gf} |
Centre hole type C1W1M | ![]() |
Developed for injection molding machines. | 58.84 kN {6 tf}~490.3 kN {50 tf} |
Miniature type LSMS | ![]() |
Miniture type load cell with 5 mm at height and 7 mmat diameter. | 196.1 N {20 kgf}~490.3 N {50 kgf} |
Miniature type LSM - B | ![]() |
12mm~21mm of diameter and suitable for use where space is limited. | 4.903 N {500 gf}~19.61 kN {2 tf} |
Miniature type CM085 | ![]() |
High accurate, compact and thin type compression service load cell with stopper. | 2 N ~ 2 kN |
Low profile shear-web type UWV1 | ![]() |
Shear-web type structure and strong in lateral load. | 19.61 kN {2 tf}~980.7 kN {100 tf} |
Load cell > Hygienic Weighing Module
スクロールできます

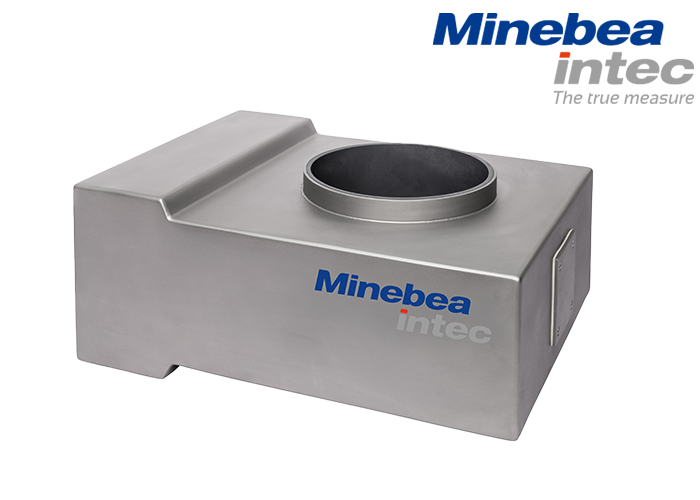

Parts | Product outline image | Features |
---|---|---|
Contego PR6041 Series | ![]() |
■Hygienic integrated mount(EHEDG compliant) with built-in high-accuracy load cell(PR6241 type) ■Hygienic design(EHEDG compliant) ■highly corrosion-resistant top/bottom plates(AlSl316L ■FDA complianr silicone rubber sides ■Completely waterproof IP68/IP69K ■Cable outlet available in 2 direcyions(Horizontal:A、vertical:B) ■Base plate optionally available |
Load cell > Compression Type Ulyra-High Accuracy Hygienic Stainless Steel Load cell
スクロールできます
Parts | Product outline image | Features |
---|---|---|
PR6202 Series | ![]() |
■Highly corrosion-resistant housing material AlSl316L ■Average surface roughness less than 1μm ■Completely waterproof IP68/69K ■Completely water-draining structure(EHEDG compliant) ■Automatic alignment function ■Wide operating temperature range:-40 to +95℃ ■Completely water-draining mounting FlexLock PR6002 type available ■Registered design EU 000 210 349-0001/-0002 Japan 2005-478 US 22/222,249 |
Load cell > Compression Type Stainless Steel Load Cell
スクロールできます
Parts | Product outline image | Features |
---|---|---|
PR6212 Series Compression Type Compact Stainless Steel Load Cell | ![]() |
■Gage is applied using sputtering technology to dramatically improve strength and accuracy. High temperature(LT:rated 500kg~5t)version is available for up tp 180℃ ■Stainless steel housing:SUS630 equivalent ■Completely waterproof IP68 ■Lateral load relief mechanism |
PR6211 Series Compression Type Compact Stainless Steel Load Cell | ![]() |
■Gage is applied using sputtering technology to dramatically improve strength and accuracy.PR6211(rated 30~300kg)maximum allowable load>500kg.High temperature(LT:rated 500kg~5t)version is available for up tp 180℃ ■Stainless steel housing:SUS630 equivalent ■Completely waterproof IP68 ■Lateral load relief mechanism |
PR6241 Series Compression Type Ultra-High Accuracy 1/12500 Stainless Steel Load Cell | ![]() |
■Compact,high-performance load cell.Individual accuracy:Achieves 1/12500! Ideal for production of high-accuracy tank scales and platform scales ■Stainless steel housing:SUS630 equivalent ■Completely waterproof IP68 ■Ultra-high accuracy,C6:1/12500 |
PR6201 DB Series Double Output Compression Type Stainless Steel Load Cell | ![]() |
■2 strain gages are applied within the load cell for double output. ■For use at steel plants, etc., enabling 1 cable to continue output even if the other cable is damagrd. |
PR6201 Series Compression Type High Accuracy Standard Stainless Steel Load Cell | ![]() |
■Stainless steel load cells for high capacity ■Stainless steel housing:SUS304 equivalent ■Completely waterproof IP68 |
PR6203 Series Compression Type High Precision Standard Stainless Steel Load Cell | ![]() |
■Load cell with automatic alignment function ■Stainless steel housing:SUS304 equivalent ■Completely waterproof IP68 ■Wide range of accuracy supported:D1(E)~C6(E) |
Load cell > Tension Type Ultra-High Accuracy Stainless Steel Load cell
スクロールできます
Parts | Product outline image | Features |
---|---|---|
PR6246Series | ![]() |
■Stainless steel housing:SUS630 equivalent ■Completely waterpriif IP68 ■Ultra-high accuracy,C6:1/12500 |
Load cell > Beam Type Stainless Steel Load Cell
スクロールできます
Parts | Product outline image | Features |
---|---|---|
PR6207 Series | ![]() |
■Stainless steel housing:1.4122 ■Completely waterpriif IP67 |
Load cell > Process Digital Load Cell
スクロールできます
Parts | Product outline image | Features |
---|---|---|
PR6204 Series | ![]() |
■Stainless steel housing with completely sealed structure(IP68/IP69K) ■Accuracy class:C3 0.015%/C6 0.008%(25t,50t) ■Rated output:200,000 digits(25t:400,000) ■2-wire RS485 communication allows connection of up to 8 units ■Connectable devices:PR5200/5230 Transmitter、PR5410 Process Indicator、PR5900 Maxxis5 Process Controller |
Load cell > Force Sensor
スクロールできます
Parts | Product image | Features |
---|---|---|
CF059 series | ![]() |
Stainless steel, and full bridge type Rated capacity : 1.961 N {0.2 kgf} ~ 39.22 N {4 kgf} |
CF054 series | ![]() |
Aluminum roberval method sensor, full bridge type Rated capacity : 0.294 kN {30 kgf} ~ 1.961 kN {200 kgf} |
FSV series | ![]() |
Aluminum element, Roverval method sensor, full bridge type Rated capacity : 0.981 N{100 gf} ~ 2.942 N {300 gf} |
FSU series | ![]() |
Aluminum alloy. Roverbal type and full bridge type Rated capacity : 4.903 N {0.5 kgf}~147.1 N {15 kgf} |
FSI series | ![]() |
Aluminum alloy. Full bridge type. Rated capacity : 19.61 N {2 kgf}~196.1 N {20 kgf} |
FSA series | ![]() |
Stainless steel. 2 type of half bridge type and full bridge type. Rated capacity : 22.24 N{5 lb} ~ 177.9 N {40 lb} |

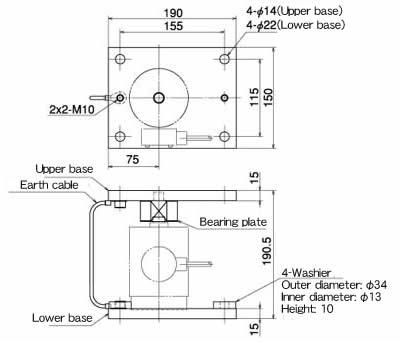

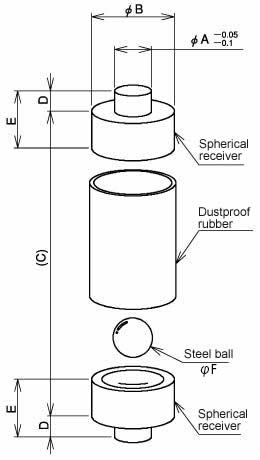

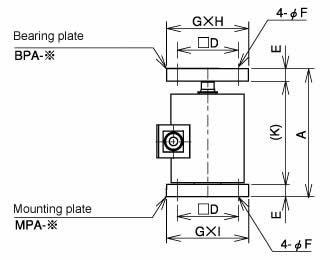

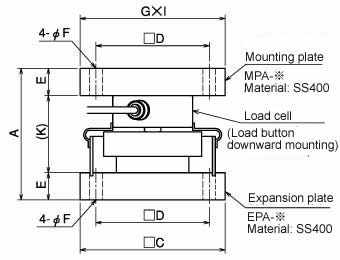

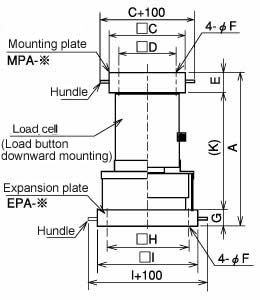

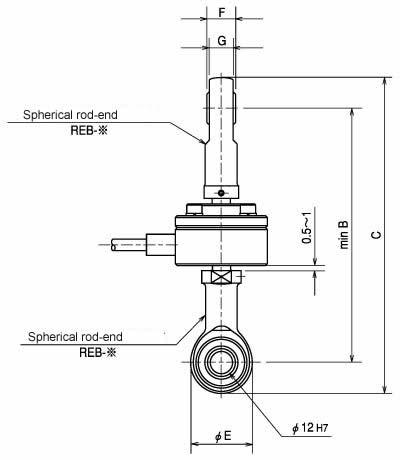

Load cell > Mounting attachment
スクロールできます
Parts | Product image | Outline | Allowable horizontal moving length (No directionarity) [mm] |
Allowable horizontal moving length (with directionarity) [mm] |

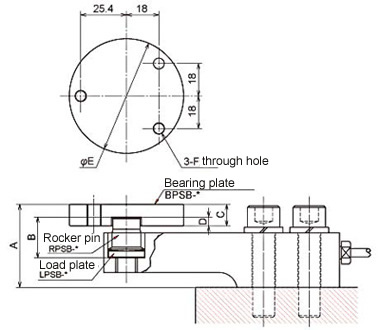

---|---|---|---|---|
Rocker pin method mounting attachment RCA-C2B1B-*-S series | ![]() |
Space-saving, low cost type with stainless steel structure. Expansion capability in all directions. Applicable transducer : C2B1B-200K~2T |
±2 | |
Rocker pin method mounting attachment RCA-C3B1 series | ![]() |
Space-saving, low cost type. Expansion capability in all directions. Applicable transducer : C3B1-200K~5T-NS |
±2 | |
Check rod method mounting attachment CCA-CC002-* | ![]() |
Equipped lift-off protection fitting as a standard. Applicable transducer : CC002-10T~30T-NS |
±7 | |
Flexibel lock method mounting attachment FCA-CCP1-* series | ![]() |
Most suitable where the vibration is generated. Available for explosion-proof load cell. Applicable transducer : CCP1(A)-200K~20T(-U, -Z) |
±10 | |
Check rod method mounting attachment CCA-CMP1-*-S | ![]() |
Equipped lift-off protection fitting as a standard. All stainless steel structure. Applicable transducer : CMP1-250K~20T |
±5 | |
Steel ball method mounting attachment SCA-CMM1/CMP1 series | ![]() |
Most suitable where the vibration is generated. Applicable transducer : CMM1-50K~2T, CMP1-250K~20T |
±10 | |
Flexible stop method mounting attachment FCA-CMM1/CMP1 series | ![]() |
Most suitable for the tank with stir machine where the vibration is generated. Applicable transducer : CMM1-50K~2T, CMP1-250K~20T |
±10 | |
Flexible stop method mounting attachment FCACC010-*B (S) series | ![]() |
Equipped lift-off protection fitting. Most suitable where the vibration is generated. Applicable transducer : CC010-500K~50T |
±8 | |
Check rod method mounting attachment CCACC010-*B (S) | ![]() |
Equipped lift-off protection fitting. Expansion capability in all directions Applicable transducer : CC010-500K~50T |
±3 |
Load cell > Accessory for load cell
Load button
スクロールできます
Parts | Applicable load cell | Mounting picture |
---|---|---|
LBU series LBU2 | U3S1-NS / U2S1 series load button | ![]() |
LBU series LBU1 | U3B1-B series load button | ![]() |
Bearing plate / Mounting plate
スクロールできます
Parts | Applicable load cell | Mounting picture |
---|---|---|
BP/MP series BPMP5 | CCS1 series bearing plate + mounting plate | ![]() |
BP/MP series BPMP4 | CCR1(B) series bearing plate + mounting plate | ![]() |
BP/MP series BPMP3 | CMM1/CMP1 series bearing plate / mounting plate | ![]() |
BP/MP series BPMP2 | CCW1/UWV1 series bearing plate + mounting plate | ![]() |
BP/MP series BPMP1 | CCP1(A) series bearing plate + mounting plate | ![]() |
Expanson plate
スクロールできます
Parts | Applicable load cell | Mounting picture |
---|---|---|
EP series EP4 | CCS1 series expansion plate + mounting plate | ![]() |
EP series EP3 | CCR1(B) series expansion plate + mounting plate | ![]() |
EP series EP2 | CMM1/CMP1 series expansion plate + mounting plate | ![]() |
EP series EP1 | CCP1(A)/CCP1-Z series expansion plate + mounting plate | ![]() |
Spherical rod end
スクロールできます
Parts | Applicable load cell | Mounting picture |
---|---|---|
REB/PR/HRT series REB6 | UMM1 series spherical rod-end | ![]() |
REB/PR/HRT series REB5 | U3S1/U2S1 series spherical rod-end | ![]() |
REB/PR/HRT series REB4 | U3B1 series spherical rod-end | ![]() |
REB/PR/HRT series REB3 | T3B1 series spherical rod-end | ![]() |
REB/PR/HRT series REB2 | UWV1 series spherical rod-end | ![]() |
REB/PR/HRT series REB1 | TCP1(A) series spherical rod-end | ![]() |
Swivel clevis shank
スクロールできます
Parts | Applicable load cell | Mounting picture |
---|---|---|
SCS series SCS2 | UMM1 series swivel clevis shunk + spherical rod end | ![]() |
SCS series SCS1 | TCP1(A) series swivel clevis shunk + spherical rod end | ![]() |
Bearing plate + Rocker pin
スクロールできます
Parts | Applicable load cell | Mounting picture |
---|---|---|
BP(SB)/RP(SB) series BPRP2 | C2B1B(-C3) series bearing plate + roccker pin | ![]() |
BP(SB)/RP(SB) series BPRP1 | C3B1(-NS) series bearing plate + roccker pin | ![]() |
Load foot
スクロールできます
Parts | Applicable load cell | Mounting picture |
---|---|---|
LF series | C2B1B(-C3) series load foot | ![]() |
Mounting attachment
スクロールできます
Parts | Applicable load cell | Mounting picture |
---|---|---|
AIC series AIC2 | CC002/DC002 series metal fitting | ![]() |
AIC series AIC1 | CC010(-C3) series metal fitting | ![]() |
Spherical ball metal fitting
スクロールできます
Parts | Applicable load cell | Mounting picture |
---|---|---|
TB series | C2T1-A/S series metal fitting | ![]() |
Load cell > Load cell Applications
Sensing Device Product Accessories
スクロールできます
Parts | Product image | Outline |
---|---|---|
Explosion proof storage case for digital indicator B-309Z | ![]() |
Storage case for digital indicator with explosion proof structure. |
Explosion proof summing box B - 304Z | ![]() |
Used when flameproof construction Load Cell is added parallel in the hazardous area where the explosion-proof construction is needed |
Summing type junctin box SB - 321 | ![]() |
Possible to sum the signals from upto 4 load cells. Strainless steel structure. Class of protection : IP69K |
Summing type junctin box SB-320 | ![]() |
Possible to sum the signals from upto 4 load cells. Strainless steel structure. |
Summing type junctin box SB-310 | ![]() |
Possible to sum the signals from upto 4 load cells. |
Small size summing type junction box for digital load cell DB- 307 | ![]() |
Connections for upto 4 digital load cells. Equipped with an output adjustment trimmer for each load cell. |
Small size summing type junction box B-307 | ![]() |
Connections for upto 4 load cells. Equipped with an output adjustment trimmer for each load cell. |
Extension junction box B-304B | ![]() |
Junction box for extending the signal cable of load cells |
Zener barrier Z961-TC20162/Z964-TC20163 (after 2012) | ![]() |
Safety barrier for intrinsic safety explosion-proof weighing systems to be used with load cells. The type of Z951/Z964 to be applied is different in the model passed before 2011 and the model passed after 2012. |
Zener barrier Z961/Z964 (before 2011) | ![]() |
Safety barrier for intrinsic safety explosion-proof weighing systems to be used with load cells. The type of Z951/Z964 to be applied is different in the model passed before 2011 and the model passed after 2012. |
Minebea Intec Products Applications
スクロールできます
Parts | Product image | Outline |
---|---|---|
PR6130 | ![]() |
●Up to 4 load cell units can be connected ●No problems even if jet spray adheres to the board surface ●Flame arrestor equipped as standard |
PR5110 | ![]() |
●Serial communication means there is no display error relative to the indicator ●Selectable between board mounting types and wall/tabletop mounting types ●Up to 8 indicator units can be connected |
PR5220 | ![]() |
●TCP/IP connection,calibration and setting can be configured via PC ●High internal resolution:4,800,000 ●External display 10,000e(OIMLR76 compliant) ●High accuracy analog output,0/4-20mA ●RS485/422 outputs available ●24 VDC power supply ●Waterproof IP20,DIN rail mountable |
PR5230 | ![]() |
●Stainless steel housing:IP66 ●Ethernet/Modbus TCP service interface equipped as standard(calibration/setting enabled via the service interface) ●RoHS compliant ●Input/Output 3 contacts equipped as standard |
PR1626 | ![]() |
●Intrinsically safe explosion-proof interface developed especially for load cells ●Load cell output changes due to temperature effects are minimal,enabling high accuracy measurement ●Dedicated interface for load cells installed in hazardous locations ●The PR1626/60 can connect up to four 650Ω load cells ●The PR1626/61 can be connected to load cell type explosion-proof scales and connect up to eight 650Ω load cells ●W&M Approval OIML R76 class Ⅲ |
Pressure Sensor
SOS type pressure transmitter
スクロールできます
Parts | External view | Overview | Rated capacity |
---|---|---|---|
Compact size & High-accuracy type pressure transmitter NS320 series New Model | ![]() |
Temperature compensation range is wide as -30 ~ 125 degree-C, and this can use to the various applications. (High accurate model: Improve the performance for temperature compensation range between 0 and 50 degree-C).Performance of signal response: 2 kHz | 200 kPa ~ 30 MPa |
High-accuracy with long term stability pressure transmitter NS115 series | ![]() |
Accuracy 0.1%R.O., Excellent in a long term stability, solidity and a surge pressure measurement. Zero point adjustment is available. Rated capacity : 500 kPa~10 MPa(NS115P / High-accuracy type), 5 MPa~50 MPa (NS115 / Standard type) |
5 MPa~50 MPa |
High-accuracy with long term stability pressure transmitter NS115P series | ![]() |
Accuracy 0.1%R.O., Excellent in a long term stability, solidity and a surge pressure measurement. Zero point adjustment is available. | 500 kPa~10 Mpa |
High-accuracy, negative/absolute pressure use pressure transmitter NS100A series | ![]() |
Accuracy 0.2 %R.O., Possible to measure the compound pressure and absolute pressure accurately. Comformed to CE standard (only for voltage output) | 200 kPa ~ 50 Mpa |
Strain Gage type pressure transmitter
スクロールできます
Parts | External view | Overview | Rated capacity |
---|---|---|---|
High endurance type pressure transducer PRN01 / PRN02 series | ![]() |
Total aAccuracy : ±1.0 %F.S., ASIC amplifier is mounted, High performance type with excellent feature in temperature effect and a noise. | 5 Mpa ~ 100 Mpa |
High endurance type pressure transmitter PRN01 / PRN02 series | ![]() |
Total aAccuracy : ±1.0 %F.S., ASIC amplifier is mounted, High performance type with excellent feature in temperature effect and a noise. | 5 MPa~100 Mpa |
SOS type pressure transducer
スクロールできます
Parts | External view | Overview | Rated capacity |
---|---|---|---|
High temperature type pressure transducer NS30T series for compound pressure measurement | ![]() |
Small size and light weight pressure transmitter with accuracy 0.2 %R.O., Possible to measure the compound pressure with high-accuracy and high response. Natural frequency : 72 kHz~566 kHz | 200 kPa~10 MPa |
High temperature type pressure transducer NS10T series for compound pressure measurement | ![]() |
Accuracy 0.2 %R.O., Possible to measure the compound pressure with high-accuracy and high responce. Natural frequency : 72 kHz~1 278 kHz | 200 kPa~50 MPa |
Strain Gage type pressure transducer
スクロールできます
Parts | External view | Overview | Rated capacity |
---|---|---|---|
Flash diaphragm type pressure transducer PRO series | ![]() |
Compact and light weight type. Screw M10 x P1.0 High response, No need to bleed air in the pressure inlet | 2 MPa ~ 20 Mpa |
High pressure type pressure transducer STD series | ![]() |
For high pressure range, The pressure receiving diaphragm is an integration structure with screw | 200 MPa ~ 500 Mpa |
Small type pressure transducer PRJ series for high / low temperature measurement | ![]() |
For high temperature (150 ℃) to low temperature (-40℃), small size and light weight, easy to attach and remove. | 1 MPa~10 MPa |
Small and high responce type pressure transducer PRC series | ![]() |
Flash diaphragm method high response type. small size, light weight, easy to attach and remove. | 1 MPa~100 Mpa |
High reliability standard type pressure transducer PRB series | ![]() |
Small size and light weight. Easy to attach and remove. Plentiful product line with wide pressure range. | 1 MPa~100 Mpa |
Torque Transducer > Shaft type torque transducer
Flange type optical transmission method/Shaft type optical transmission method torque transducer
スクロールできます

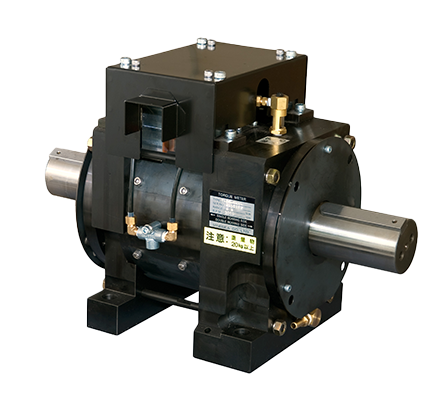

Parts | Appearance | Outline | Rated capacity |
---|---|---|---|
Optical transmission method torque meter TMOS series | ![]() |
Bearing type torque transducer adopting the optical transmission method Rated capacity : ±3 kN・m, ±5 kN・m |
±500 N・m ~ ±5 kN・m |
Shaft type transformer method torque transducer
スクロールできます
Parts | Appearance | Outline | Rated capacity |
---|---|---|---|
Conpact type torque transducer TMR010 series | ![]() |
Strain gage based non-contact type torque transducer with voltage output. Rated capacity : ±2 N・m, ±10 N・m |
±2 N・m ~ ±10 N・m |
Rotary transformer method torque transducer TMNR-ME series | ![]() |
Rotary transformer method torque transducer, high accurate and high stiffness type Rated capacity : ±500 N・m ~ ±5 kN・m |
±500 N・m ~ ±5 kN・m |

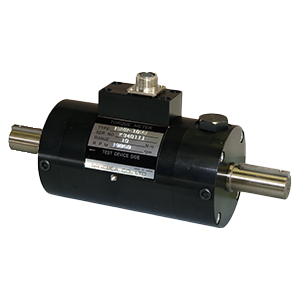

Rotary transformer method torque transducer TMNR series | ![]() |
Rotary transformer method torque transducer Rated capacity : ±10 N・m ~ ±10 kN・m |
±10 N・m ~ ±10 kN・m |
Shaft type slip ring method torque transducer
スクロールできます
Parts | Appearance | Outline | Rated capacity |
---|---|---|---|
Low capacity torque transducer TMBN series | ![]() |
Small size and light weight, For detection of minute torque Rated capacity : ±20 N ・ cm ~ ±300 N ・ cm |
±20 N・cm ~ ±300 kN・cm |
Torque Transducer > Flange type torque transducer
スクロールできます

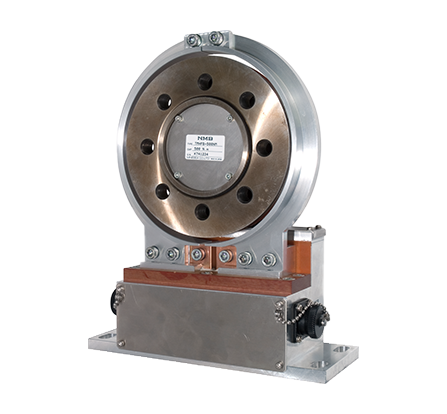

Parts | Appearance | Outline | Rated capacity |
---|---|---|---|
Optical transmission method flange type torque meter TMOFB series | ![]() |
Optical transmission method thin flange type torque transducer Rated capacity : ±500 N・m ~ ±5 kN・m |
±100 N・m ~ ±10 kN・m |
Optical transmission method flange type torque meter TMHFB series | ![]() |
Optical transmission method thin flange type torque transducer Rated capacity : ±100 N・m ~ ±10 kN・m |
±100 N・m ~ ±10 kN・m |

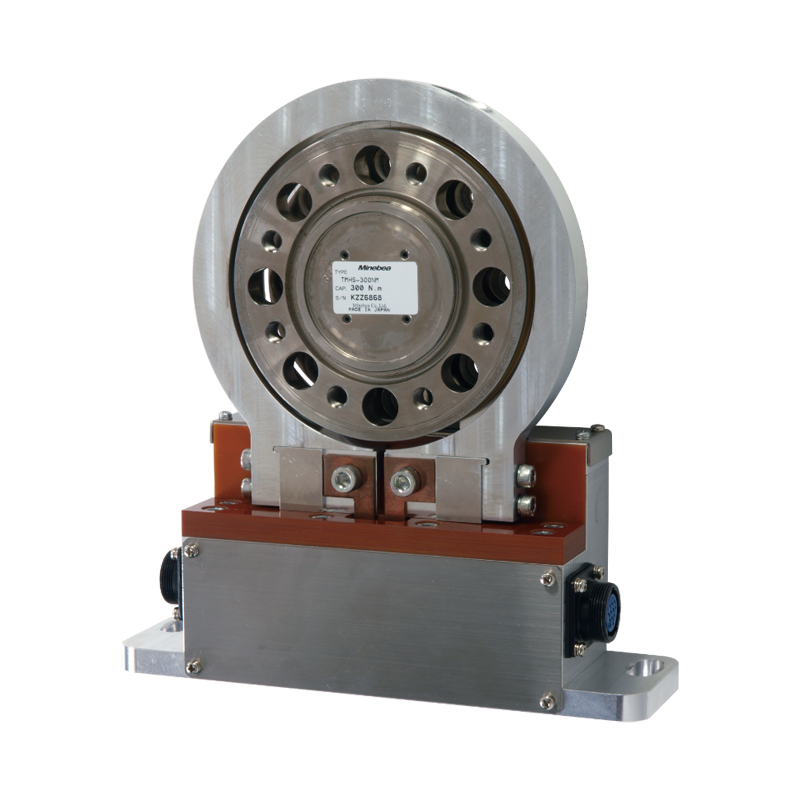

Optical transmission method flange type torque meter TMHS series | ![]() |
High speed and Accurate type optical transmission method flange type torque meter Rated capacity : ±100 N・m ~ ±3 kN・m |
±100 N・m ~ ±3 kN・m |

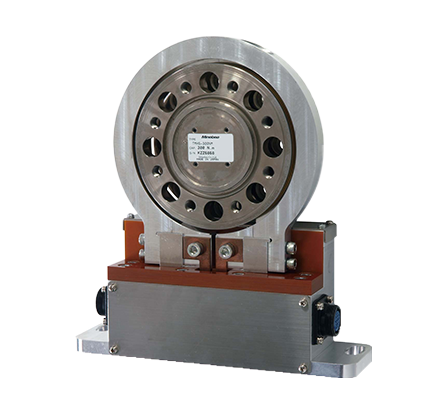

Optical transmission method flange type torque meter TMHSB series | ![]() |
High accuracy, high response and high speed type optical transmission method flange type torque meter, Stator outputs ±10 V without a transmittor. CE mark applicable. Rated capacity : ±100 N・m ~ ±10 kN・m |
±100 N・m ~ ±10 kN・m |
Optical transmission method flange type torque meter TMHSA series | ![]() |
High speed and Accurate type optical transmission method flange type torque meter Stator outputs ±10 V without connecting the transmittor. Rated capacity : ±100 N・m ~ ±3 kN・m |
±100 N・m ~ ±10 kN・m |
Vector sensor (3 axis force sensor)
スクロールできます
Parts | Product image | Overview |
---|---|---|
PC Board type Transmitter CSA-524 | ![]() |
Printed board type, Analog output : DC±5 V |
Digital transmitter CSD-594 | ![]() |
Compact size, High speed digital output (Baurd rate : 921.6 kbps) The parallel connection is possible by 16 or less. |
Vector sensor MX020 series | ![]() |
Possible to detect three rectilinear force and directions at the same time. Compact size and suitable for detecting the holding force Rated capacity : Fz ±20 N, Fx/Fy ±10 N |
Digital Indicator/Transmitters > Digital Indicator
スクロールできます
Parts | Product image | Outline | Non-linearity [%F.S.] |
Sampling speed [times/s] |
I/O icon |
---|---|---|---|---|---|
PR5410 Process Indicator | ![]() |
●PR5410 is a weighing module that achieves 10000e Class Ⅲ level accuracy ●High speed conversion enables response times from 10 ms ●A 10/100 Mbits/s LAN adapter is built in ●Load cell,control input/output optocoupler,LAN adapter connector and RS232C interfaces are mounted on the back panel ●Enables actual load adjustment using weights,calibration of numerical input in mV/V,and load cell date input(smart calibration) ●Large display(height 18mm),cleary visible backlight LCD display ●OIML R76 10,000e ●Internal resolution:1/4,000,000 |
|||
Digital Moment limitter DML-802C | ![]() |
The hanging load and the operating radius are displayed and the alarm has been output. Japan Crane Association accepted product. | 2 | ||
Digital indicator model TMD-100 for tension meter system | ![]() |
Space saving instrument combines multiple system functions in system control panel to conserve wiring, and miniaturize the control panel. | 0.01 | 100 | ![]() |
Digital indicator for digital load cell CSD-401 | ![]() |
Digital indicator for digital load cell. Compact size. Equipped with RS-232C as a standard. | 15 | ![]() |
|
PCB type digital indicator CSD-581-15/74 | ![]() |
DC24 V power supply voltage. Broad range of calibration function. CSD-581-15 : BCD digital output, CSD-581-74 : RS-232C interface. |
0.01 | 100 | ![]() |
Digital Peak Holder CSD-819C | ![]() |
Compact size and light weight. High sampling rate (2 000 times/s). Range of peak mode settings. CE mark applied. | 2000 | ![]() |
|
Digital Peak Holder CSD-709 | ![]() |
Compact size and light weight. High sampling rate (4 000 times/s). Waveform display and condition setting by PC. Simplified calibration, Various interface. | 0.02 | 4000 | ![]() |
Digital indicator CSD-701B | ![]() |
Compact size (48 mm x 96 mm) with peak hold function. BCD output as an option. |
20 | ![]() |
|
Digital Indicator CSD-815B | ![]() |
Conpact size (96 mm x 96 mm) digital indicator for strain gage applied transducer with peak hold function, CC-Link interface and CE mark applied. | 100 | ![]() |
|
Weight conversion module CSD-892B series | ![]() |
High performance and palmtop size. Smart and fit model in FA system. Best for high speed and high resolution application. Equipped with CC-Link interface, RS-232C interface, RS-422/485 interface, current / voltage output and USB 2.0/1.1 interface. Built-in control panel type. CE mark applied.JIS B 7611-2:2015 Annex C (Environmental Test Level H/Level L). |
0.01 | 500 | ![]() |
Built-in control panel type digital indicator CSD-891B | ![]() |
Broad range of computer and sequencer interfaces are included. Correspond to CC-Link. |
0.01 | 200 | ![]() |
Digital indicator CSD-814B | ![]() |
Clear, large fluorescent tube display with 22 mm charactrer height, Ratio of load vs. rated capacity is clearly indicated with 11 dots bar indicator. | 0.01 | 100 | ![]() |
Digital indicator CSD-904-EX | ![]() |
Best for high accuracy (6 000 div.) scale application (More than 5 micro-volts per division minimum input.) Built-in linearizer (up to 3 points) | 0.01 | 15 | ![]() |
Digital Indicator CSD-903-EX | ![]() |
Active standard that succeeds to measurement knowhow cultivated by CSD-912 without regrettably. Controlable in variegated sequence mode. Compact size and light weight. (depth: 136.5 mm), CE mark applied. | 0.01 | 200 | ![]() |
Graphic Digital Indicator CSD-912B-EX | ![]() |
6.2 inches liquid crystal touch panel display with excellent visibility TFT color and wide viewing angle. Waveform display of weighing status. 100 kinds of recipe measurement can be memorized in brand memory. 1000 times/s of high speed A/D conversion. RS-485 / serial interface as a standard function. CE mark applied. | 0.01 | 1000 | ![]() |
Digital Indicator/Transmitters > Transmitters
スクロールできます
Parts | Product image | Outline |
---|---|---|
Transmitter for optical transmission method torque meter OPT-563B | ![]() |
The calibration data for four torque meters can be recorded and changed. Digital compensation of asymmetry, linearize and twist direction reversing can be executed. |
Transmitter for optical transmission method torque transducer CSA-562B | ![]() |
4-1/2 digit digital monitor. Exclusive use for optical transmission method non-contact flange type torque transducer |
Transmitter for transformer method torque transducer CSA-561C | ![]() |
Special transmitter for transformer method torque transducer TMNR(-ME) series. Input and output isolation, Digital switch for strain setting, |
High response type transmitter CSA-522B | ![]() |
Achieved space saving when a multi channel is applied. Optional case is available to mount and it provide an easy exchange for maintenance. |
Transmitter CSA-528 | ![]() |
Most suitable direct-current amplifier for measurements of the load, pressure, the torque, and displacement, etc. Automatic zero function equipped as an option. CE mark applied product. |
PCB type Transmitter CSA-521 | ![]() |
Compact size and light weight, Simple design, Lower price |
Transmitter CSA-507C | ![]() |
Compact size and light weight, Simple design, Lower price, Trimmer to adjust the current output is equipped. |
PCB type Transmitter CSA-504S-1B | ![]() |
Printed circuit board type,1CH and 2CH |
PCB type Transmitter CSA-504SB | ![]() |
Printed circuit board type,1CH and 2CH |
Transmitter CSA-503C | ![]() |
Internal remote sensing circuit, Automatic zero function (Option), Equipped CALIB function (0.3 mV/V) and CHECK function |
Strain Amplifier
スクロールできます
