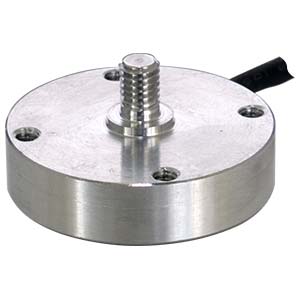

Features
･ Possible to detect three rectilinear force and directions at the same time.
・ Compact size and suitable for detecting the holding force
Specification
| Specification name | Specification contents |
|---|---|
| Output axis | Fx, Fy, Fz |
| Rectilinear force Fz | ±20 N |
| Rectilinear force Fx / Fy | ±10 N (In the case that the distance from fulcrum to input force point of the lever is 60 mm.) |
| Force distance | 30 mm ~ 60 mm (The distance from the fulcrum to the input force point on the Fz axis is named as force distance) |
| Safe overload | 150 %R.O. |
| Ultimate overload | 200 %R.O. |
| Non-linearity | 2 %R.O. |
| Hysteresis | 1 %R.O. |
| Excitation, recommended | 5 VDC |
| Insulation resistance | 2 000 Ω or more (50 VDC) |
| Temp. range, safe | －10 ℃ ~ 80 ℃ |
| Cable | φ2.5, 10-cores shielded cable 1.2 m directly attached and cable end is separated with soldering. |
| Materiral of the element | Stainless steel |
| Outline dimension | φ20 x H10 mm |
| Weight | Approx. 15 g |
Download
Specification sheet
Options
- Digital transmitter CSD-594
- PC Board type Transmitter CSA-524
