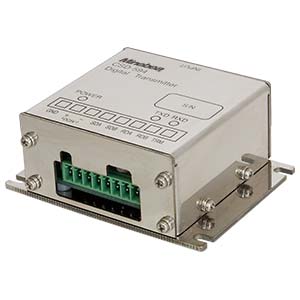

Digital transmitter CSD-594

Discontinued Products

The vector sensor is a sensor that detects the translation power in three directions.
The sensor can miniaturize because of a simple structure and is the best for the usage of the gripping force detection, etc.
The direction of power can be detected by using the vector sensor.
The output to the control machine can be easily connected by using a special transmitter.

Features

・Compact size, High speed digital output (Baurd rate : 921.6 kbps)
・The parallel connection is possible by 16 or less.

scroll

Specification name	Specification contents
Bridge power supply	5 VDC±0.25 VDC, within 45 mA
Measuring target	Vector sensor
Input range	Fx / Fy : ±300 x10⁻⁶strain to ±5 000 x10⁻⁶strain Fz : ±300 x10⁻⁶strain to ±1 000 x10⁻⁶strain
Adjustment range of zero point	±100 % of the rated output of the vector sensor
Digital output	Serial data (Differencial output)
Non-linearity	±0.05 %F.S.
Temp. characteristics	Zero point ±2 μV/℃, Sensitivity ±0.05 %/℃
Frequency response	Approx. 100 Hz
Specification of the interface	RS-485 conforming (RS-422 conforming is selectable by the order.) Baud rate : 921.6 kbps Data bit length : 8 bit Parity bit : No Start bit : 1 bit Stop bit : 1 bit Transmittion method : Half duplex Address : 0 to F (Numbers of connection for sleeve : 16 at max.) Internal termination (Presence has been selected by the terminal block connection.) Response : Approx. 0.5 ms (Master -> Sleeve -> Master)
Command	Measuring mode : Start of data output, Stop of data output, A/Z, A/Z OFF Function mode : Filter setting, Polarity change of output Parameter mode : Load range, Address registration Calibration mode : Calibration of each rectilinear force for Fx, Fy and Fz at zero and span.
Operating temp. / humidity range	-10 ℃ to 50 ℃, 85 %RH r less (Non condensing
Power supply	5 VDC (4.8 VDC to 5.5 VDC), Approx. 2.5 Ｗ or less (at 5 VDC)
Outline dimensions (WxHxD)	60 x 80 x 30 mm
Weight	Approx. 220 g
