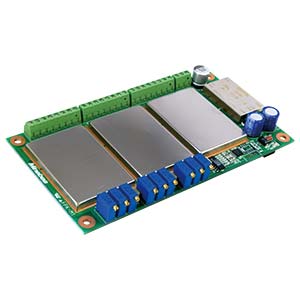

PC Board type Transmitter CSA-524

Discontinued Products

The vector sensor is a sensor that detects the translation power in three directions.
The sensor can miniaturize because of a simple structure and is the best for the usage of the gripping force detection, etc.
The direction of power can be detected by using the vector sensor.
The output to the control machine can be easily connected by using a special transmitter.

Features

・PC board type
・Analog output(DC±5 V)

scroll

Specification name	Specification contents
Bridge power supply	5 VDC±0.15 VDC
Applied sensor	1 unit of Vector sensor Fx / Fy / Fz output (120Ω half bridge)
Input range	±300 x10⁻⁶strain to ±5 000 x10⁻⁶strain
Output	±5 VDC
Output load resistance	2 kΩ or more
Sensitivity adjustable range	Sensitivity adjustable range Fx / Fy : 650 times adjusted by 1/1 to 1/2 Fz : 6 900 times adjusted by 1/1 to 1/2
Zero adjustable range	Coarse adjustment : ±3 000 ×10⁻⁶strain Fine adjustment : ±300 x10⁻⁶strain
Non-linearity	0.05 %F.S.
Temp. effect	Zero point : ±0.1 μV/℃ (Input conversion), Sensitivity : ±0.01 %F.S./℃
CALIB	Fx / Fy : 3 000 μst±15 x10⁻⁶strain,Fz : 300 μst±1.5 x10⁻⁶strain
Frequency response range	Approx. 100 Hz (-3 dB±1 dB)
Operating temp. /humidity range	-10 ℃ to 50 ℃, 85 %RH or less (No condensing)
Power supply	24 VDC (18 VDC to 36 VDC), 120 mA
Outline dimensions (WxHxD)	140 x 75 x 15 (mm)
Weight	Approx. 100 g
