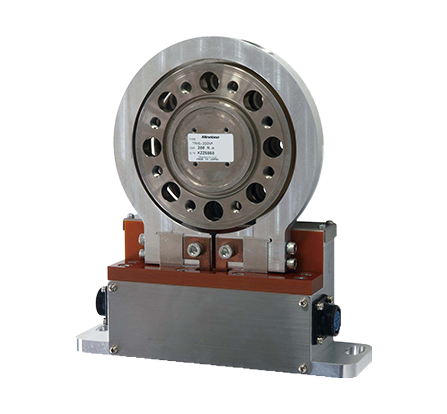

Optical transmission method flange type torque meter TMHS series

Discontinued Products

Custom

We offer a range of flange-type torque transducers with optical transmission, including the TMHSA, TMHSB models, which transmit signals optically. These transducers feature low noise, a space-saving design, and support for high-speed rotation, along with high rigidity and excellent fatigue resistance for stable use. Additionally, when combined with dedicated strain gauges and amplifiers, they provide long-term stability and high precision.

Features

・Optical transformer method thin flange type torque transducer
・Compact size and light weight. Available for high speed measurement by bearingless structure. (Corresponds to rotational speed of 25 000 rpm, and 22 000 rpm for 500 NM or more capacity)
・0.05 %R.O. in analog output and 0.02 %R.O. in digital output for the accuracy of detected value is achieved.
・Easy to mounting and detaching by adopting with devided structure of stator (part of antenna).
・Special transmitter OPT-563B is provided.
・The detector for rotation speed and rotaional direction is prepared as an option.
・High accuracy and low noise are achieved by the digital singnal transmission by the optical transmission method of the patent.
(USA PAT No. US6.472.656.B2, Japanese PAT No.3448738, PAT No.3453654)

Alternative

Optical transmission method flange type torque meter TMHSA series Optical transmission method flange type torque meter TMHSB series

scroll

Specification name	Specification contents
Rated capacity	±100 N･m ~ ±3 kN･m
Safe overload	150 %R.C.
Ultimate overload	300 %R.C.
Rated output	±10 V
Measurement accuracy	Frequency output: ±0.02 %R.O., Voltage output: ±0.05 %R.O. (including linearity, hysteresis and repeatablity.)
Temp. range, safe	-10 ℃ ~ 70 ℃
Temp. range, compensated	0 ℃ ~ 60 ℃ (non-condensing)
Temp. effect on zero balance	0.02 %R.O./10 ℃
Temp. effect on output	0.03 %LOAD/10℃
Zero shift by rotation	0.5 %R.O.p-p (WB=1 kHz)
Class of protection	IP54 or equivalent
Material (Rotor part)	Alloy steel
Material (Stator part)	Alluminium alloy

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [N･m]	Rated capacity [kN･m]	Maximum rotation speed [rpm]	Zero shift by rotation [%R.O.p-p]	Mechanical characteristics Inertia moment [kg･cm²]	Mechanical characteristics Torsional rigidity [kN･m/rad]	Mechanical characteristics Torsional peculiar pitch [KHz]	Mechanical characteristics Bending peculiar pitchTorsional rigidity [KHz]	Mechanical characteristics Bending peculiar pitchThrust direction [KHz]	Mechanical characteristics Twist angle at rated capacity [°]	Mechanical characteristics Twist angle at rated capacity [N]	Mechanical characteristics Accuracy safe thrust load [N]	CAD files[DXF]	CAD files [DXF] with detector for rotation speed and rotational direction RPM	3D CAD files [STEP]	Weight(Approx.) [kg]	Weight (Approx.) [kg]
TMHS-100NM	±100		25000	0.5	13.51	371.7	5.357	3.375	3.966	0.015	75	65	tmhs_100nm.dxf	rpm100.dxf	TMHS-100NM.STEP	1.1	2
TMHS-200NM	±200		25000	0.5	13.52	430.1	5.778	3.497	4.065	0.027	150	130	tmhs_100nm.dxf	rpm100.dxf	TMHS-200NM.STEP	1.1	2
TMHS-300NM	±300		25000	0.5	13.54	553.5	6.577	3.763	4.284	0.031	225	195	tmhs_100nm.dxf	rpm100.dxf	TMHS-300NM.STEP	1.1	2
TMHS-500NM	±500		22000	0.5	19.05	764.5	6.413	3.919	4.404	0.037	375	325	tmhs_500nm.dxf	rpm500.dxf	TMHS-500NM.STEP	1.4	2
TMHS-1KNM		±1	22000	0.5	28.27	1171	6.274	4.016	4.998	0.049	750	650	tmhs_1knm.dxf	rpm1K.dxf	TMHS-1KNM.STEP	1.8	2
TMHS-2KNM		±2	16000	0.5	111.6	1706	4.04	2.151	2.672	0.067	800	3750	tmhs_2knm.dxf	tmhs_rpm2K.dxf	TMHS-2KNM.STEP	3.7	2
TMHS-3KNM		±3	16000	0.5	111.7	2106	4.508	2.368	2.844	0.082	1000	12000	tmhs_3knm.dxf	tmhs_rpm2K.dxf	TMHS-3KNM.STEP	3.7	2

* Accuracy safe bending load and accuracy safe thrust load are the load (actual measurement value) which generate output error of 0.05%R.O.
* Accuracy safe bending load is the result of applying the load at the position of 200 mm from the flange edge.
* All are the gurantee over static load.

Specification sheet
Rotation detector for rotation speed and rotational direction : RPM
- Rotation detector RPM No.KT53515-2
Specification sheet
Cable
- Connecting cable CAC-176B No.KT53506-1
Instruction Manual
- ENKT60558-1
Specification
- No.KT53353-2
- φ11/ 10-cores shielded cable with connector at the both end.(Selectable from CAC-169A-10 m / -20 m or CAC-169B-30 m)
- Specialized transmitter OPT-563B
- Detector for rotation speed and rotational direction : RPM
