Shaft type torque transducer Flange type optical transmission method/Shaft type optical transmission method torque transducer

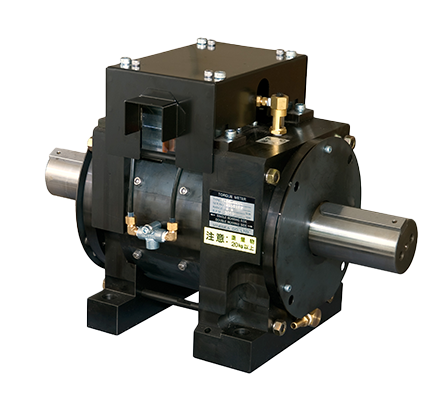

Optical transmission method torque meter TMOS series

Features

・ Optical transformer method non-contact type torque transducer
・ Making to low noise by digital signal transmission (ground brushless)
・ Improve the stiffness and durability by the latest structural analysis technology.
・ Easy to improving the performance and increase the capacity of the existed unit because of the same size.
・ Improve the long term stability by applying the special gage.
・ As equiping with the bearing mechanism, the installation of intermediate shaft receiving is unneccessary.

Specification

Specification name Specification contents
Rated capacity ±3 kN・m, ±5 kN・m
Safe overload 150 %R.C.
Ultimate overload 200 %R.C.
Rated output 0 V ~ ±10 V
Measurement accuracy ±0.1 %R.O. (including non-linearity, hysteresis and rRepeatability)
(For the combination with MINEBEA'stransmitter CSA-562B)
Maximum rotation 8 000 rpm
Temp. range, safe -10 ℃~80 ℃
Temp. effect on zero balance 0.1 %R.O./10 ℃
Temp. effect on output 0.1 %LOAD/10 ℃
Zero shift by rotation 0.5 %R.O.p-p (WB=1 kHz)
Difference of bearing temp. by rotation Double bearing part : 60 ℃ or less/at maximum speed
Single bearing part : 40 ℃ or less/at maximum speed
Difference of bearing temp. by rotation (Single bearing part)
Response frequency 1 kHz or more at shaft end opened.
Inertia moment of rotor TMOS-3KNM: 238.1 kg・cm2, TMOS-5KNM: 241.9 kg・cm2
Torsion riidity of shaft TMOS-3KNM: 396.6 kN・m/rad, TMOS-5KNM: 440.8 kN・m/rad
Permissible load at shaft end TMOS-3KNM: 215.7 N], TMOS-5KNM: 441.3 N
Permissible static load at shaft end
Class of protection IP40 or equivalent
Material (Rotor part) Alloy steel
Material (Stator part) Alloy steel + Alluminium alloy

Table of P/N

Parts No. Rated capacity
[kN・m]
Maximum rotation speed
[rpm]
Zero shift by rotation
[%R.O.p-p]
Mechanical characteristics
Inertia moment
[kg・cm²]
Mechanical characteristics
Torsional rigidity
[kN・m/rad]
Mechanical characteristics

[N]
CAD files[DXF] 3D CAD files [STEP] Weight(Approx. )
[kg]
Weight(Approx.)
[kg]

Options

  • Transmitter for torque transducer with optical transmission method (CSA-562B)
