Linear type

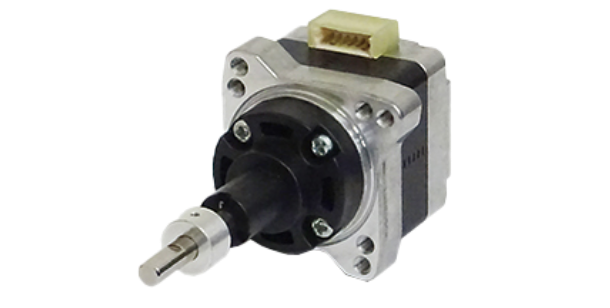

Product image of Linear type | Hybrid stepping motors

Our linear stepping motor's high performance and compact design are accomplished through a lead screw that converts rotary to linear motion.
Our linear stepping motors are maintenance free and with highly-reliable mechanism that comes from motors for automotive applications.

Download

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

Outer Diameter
[mm]

Step Angle
upper limit
[°]

Stroke
[mm]

Recommended load
[N]

Recommended load
[kgf]

Resolution
[μ/1step]

PDF

CAD Data Download
C10PMK202BSTDCN 25.0 1.80 12 9.8 1.0 4.0 PDF 3D/2D CAD
