Small brushless motors

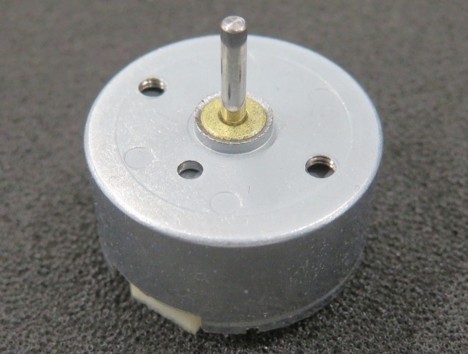

BCL3

Overview

3 Phase outer rotor type DC Brushless Motor
Driver circuit built-in
Bearing : Oil retaining bearing
Connection : Connector
(JST : BM05B-SRSS-TB or
JCTC : 11002W00-5P-S)
Interface (5 terminals) Power Supply : 4.5 - 26.4V
GND : (Short to Frame)
FG : 6 pulses per rotation, 5V, square-wave
The switchable 1FG or 1/2FG or 1/3FG
VSP or PWM : Rotational speed adjustment terminal
VSP : 0V - 5V (1V> : stop, 4.4V< : Full acceleration)

PWM : 0 − 5V, 15 - 100kHz (ON-level : 2V - 5V)
(Duty3%> : stop, Duty100% : Full acceleration)

CW / CCW switch
0.8V> : CCW, 1.3V - 2.0V : Brake-mode, 2.5V< : CW

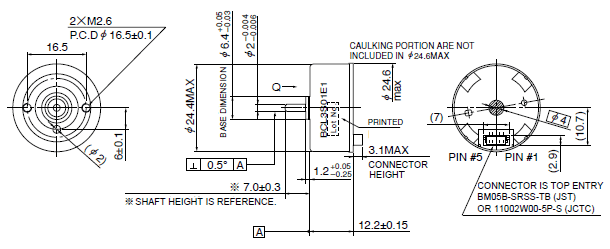

Overall View

Specification

Outer Diameter
[mm]
No load speed
[r/min]
Starting torque
[mN・m]
Maximum output power
[W]
Starting torquey
[%]
Speed at maximal efficiency
[r/min]
Speed at max output power
[r/min]
Life at 20 deg.C
[hour]
24.4 5500 14.0 2.0(at 7mN·m) 50(at 3mN·m) 4300 2700 5000

* Major characteristic parameters at 12V.
Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)

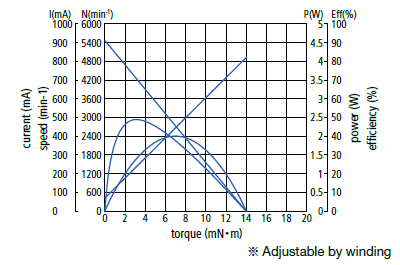

Property diagram
