DIX24 Geared Motor

These motors are used in driving and electrical components for digital AV equipment and PC peripheral devices. High-precision low vibration technology and bearing technology help to create faster equipment.

Overview

3 Phase outer rotor type DC Brushless Motor
Interface Power Supply
GND
FG
VSP or PWM
CW / CCW switch

Connection : Connector
(JST : BM05B-SRSS-TB or JCTC : 11002W00-5P-S)

scroll

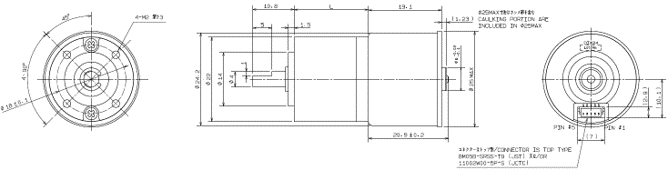

Gear Ratio	Rated Load Torque [mN・m]	Max Torque [mN・m]	Dimension L [mm]	Efficiency [%]
1/4	49	73.5	13.1	85
1/16	73.5	110.3	16.2	72
1/24	73.5	110.3	16.2	72
1/64	98	147	19.3	61
1/96	98	147	19.3	61

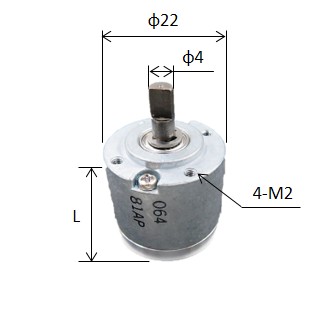

Gear Appearance
- DIX24
