Brushless inner rotor motors
DIX24
Overview
Motor Type : 3 Phase12 poles inner rotor type DC Brushless Motor
Driver circuit built-in
Bearing : Can be select to Oil retaining bearing or Ball bearing
Connection : Connector 5pin
JST BM05B-SRSS-TB or JCTC 11002W00-5P-S
Driver IC : 1 chip IC is mounted.

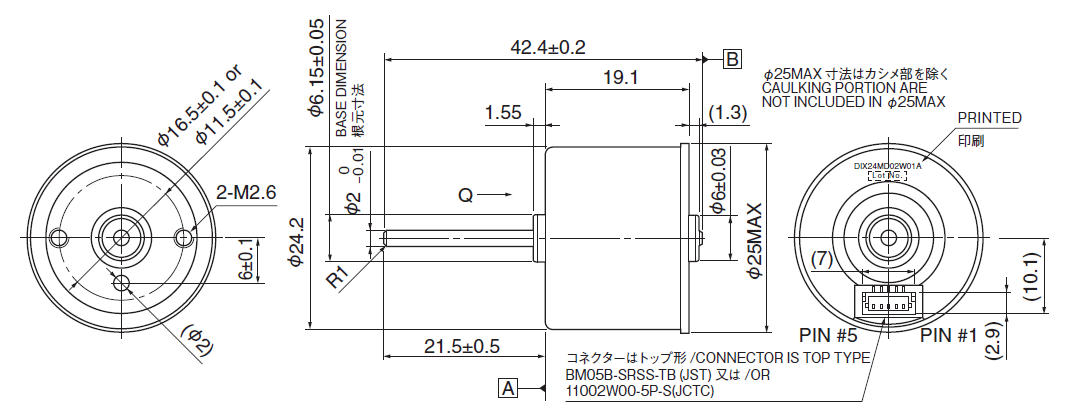

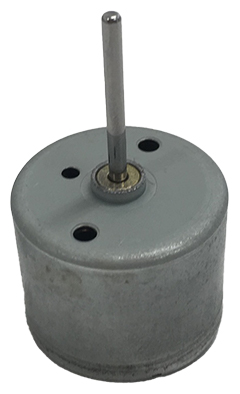

Overall View
Major Characteristic Parameters
| No load speed [min-1] |
8250 |
|---|---|
| Starting torque [mN・m] |
11 |
| Starting current [mA] |
500 |
| Maximal efficiency [%] |
48.0 |
| Speed at maximal efficiency [min-1] |
4800 |
| Life at 20 deg.C [hour] |
5000 |
*at 24V
Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)

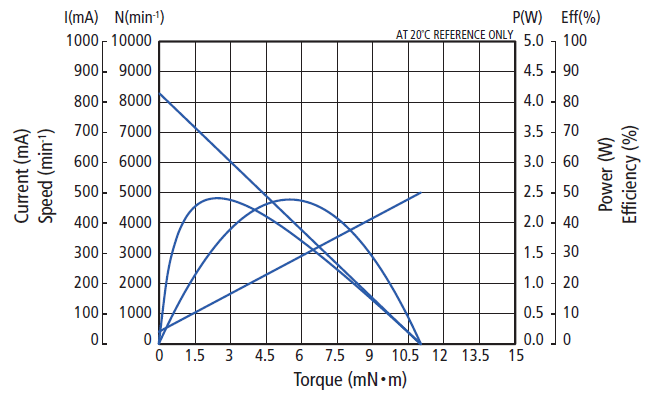

Property
Gear Spec. (Option)
| Gear Ratio | Type | Material | Step | Length L1 [mm] |
Total Length L1+motor [mm] |
Rated Voltage [V] |
No Load Speed [min-1] |
No Load Current [mA] |
Rated Load Torque [mN・m] |
Rated Load Speed [min-1] |
Rated Load Current [mA] |
Max Rated Load torque [mN・m] |
Max Instant Torque [mN・m] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 | Planetary | Metal | 1 | 13.1 | 32.2 | 24 | 2063 | 50 | 11 | 1500 | 172 | 49 | 73.5 |
| 1/16 | Planetary | Metal | 2 | 16.2 | 35.3 | 24 | 516 | 50 | 39 | 375 | 172 | 73.5 | 110.3 |
| 1/24 | Planetary | Metal | 2 | 16.2 | 35.3 | 24 | 344 | 50 | 58 | 250 | 172 | 73.5 | 110.3 |
| 1/64 | Planetary | Metal | 3 | 19.3 | 38.4 | 24 | 129 | 50 | 70 | 111 | 110 | 98 | 147 |
| 1/96 | Planetary | Metal | 3 | 19.3 | 38.4 | 24 | 86 | 50 | 98 | 75 | 110 | 98 | 147 |
This is a typical example. Other gear ratios are also available.
The notation is the value of the standard type.The torque exceeding the notation can be coped by changing gear material or gear thickness.
