Resolvers

15VRX

Appearance

Overall View

Specifications

Number of multiple 2X-5X
Input voltage
[AC Vrms]
7
Input frequency
[KHz]
10
Transformation ratio 0.286
Maximum rotation speed
[r/min]
30000
Temperature range
lower limit
[deg.C]
-40
Temperature range
upper limit
[deg.C]
125
Stator outer diameter
[mm]
37
Rotor inner diameter
[mm]
12
Stack thickness
[mm]
7

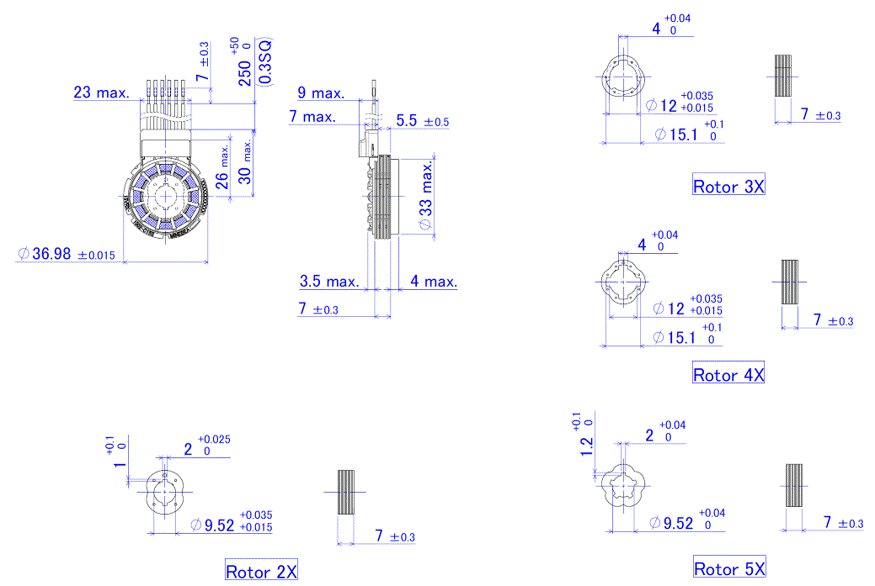

There is a difference in size at the rotor inner diameter. For more details, please find the outline dimensions.
