Appearance

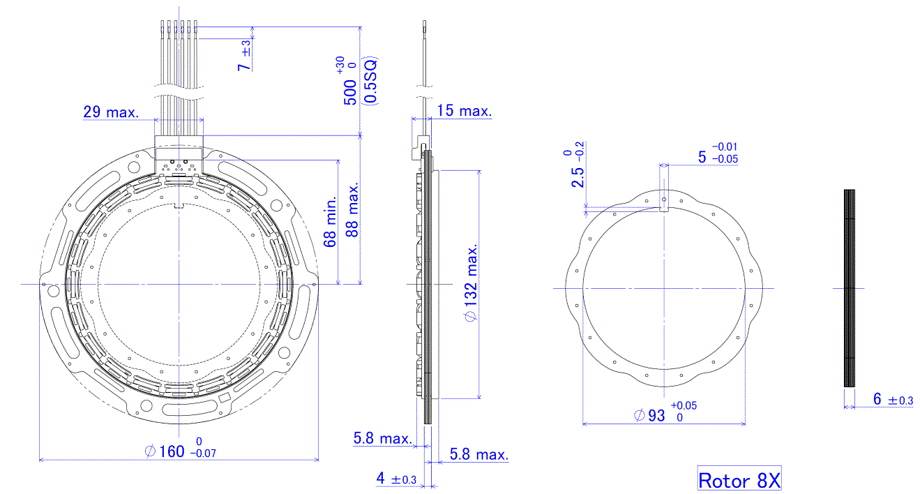

Overall View
Specifications
| Number of multiple | 2X-8X |
|---|---|
| Input voltage [AC Vrms] |
7 |
| Input frequency [KHz] |
10 |
| Transformation ratio | 0.286 |
| Maximum rotation speed [r/min] |
12000 |
| Temperature range lower limit [deg.C] |
-40 |
| Temperature range upper limit [deg.C] |
125 |
| Stator outer diameter [mm] |
160 |
| Rotor inner diameter [mm] |
93 |
| Stack thickness [mm] |
4 |
The transformation ratio may be lower than 0.286.
Resolvers under development are included. Please inquire for details.
