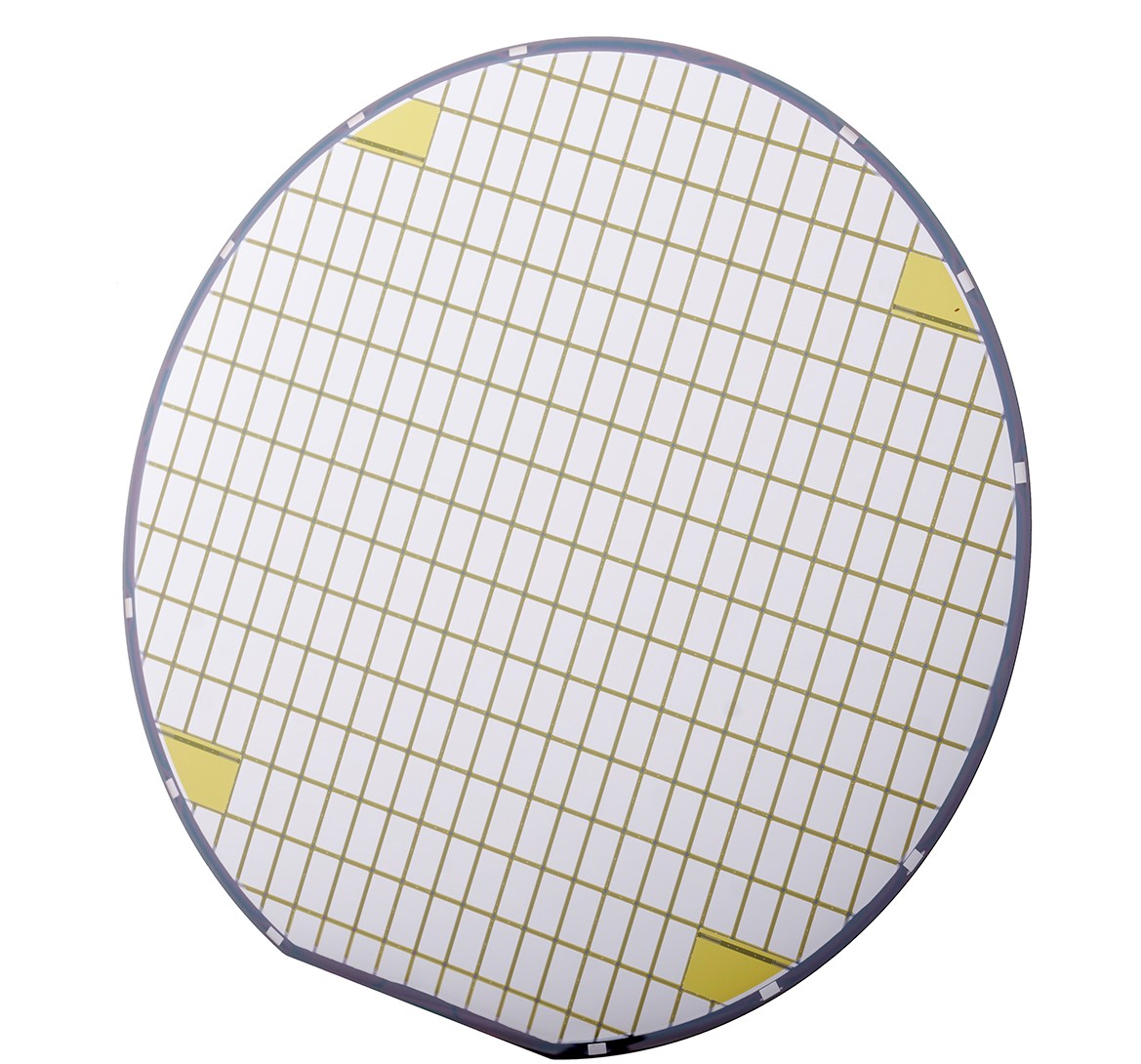

MI sereis IGBT middle current range

Field Stop Trench gate IGBT：Second Technology（Our Company）

Download

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

Associated Data

Gate-Emitter voltage
VCES
[V]

Collector current
IC
[A]

Collector-Emitter saturation voltage
VCE(sat) @Tj=25deg C
typical limit
[V]

Collector-Emitter saturation voltage
VCE(sat) @Tj=25deg C
upper limit
[V]

Gate Voltage
VGES　
[V]

Gate-Emitter threshold voltage
VGE(th)
lower limit
[V]

Gate-Emitter threshold voltage
VGE(th)
upper limit
[V]

Internal gate rasistor
Rgint
typical limit
[Ω]

Die size
X
[mm]

Die size
Y
[mm]

Junction temperature
Tj
[deg.C]
MMJ6545F00xx PDF product catalog 650 45 1.55 1.85 -30 to 30 5.20 6.60 4.98 4.98 -40 to 175
MMJ6545G00xx PDF product catalog 650 45 2.00 2.35 -30 to 30 5.20 6.60 4.98 4.98 -40 to 175
MMJ6575F00xx PDF product catalog 650 75 1.55 1.85 -30 to 30 5.20 6.60 1.7 6.60 5.90 -40 to 175
MMJ65A0F00xx PDF product catalog 650 100 1.45 1.75 -30 to 30 5.20 6.60 1.7 6.00 9.00 -40 to 175
MMJ65A5F00xx PDF product catalog 650 150 1.45 1.75 -30 to 30 5.20 6.60 1.7 7.90 9.70 -40 to 175
MMJ65B0F00xx PDF product catalog 650 200 1.45 1.75 -30 to 30 5.20 6.60 1.7 10.20 9.70 -40 to 175
MMJ6575G00xx PDF product catalog 650 75 2.00 2.35 -30 to 30 5.20 6.60 1.7 6.60 5.90 -40 to 175
MMJ65A0G00xx PDF product catalog 650 100 1.90 2.25 -30 to 30 5.20 6.60 1.7 9.00 6.00 -40 to 175
MMJ65A5G00xx PDF product catalog 650 150 1.90 2.25 -30 to 30 5.20 6.60 1.7 7.90 9.70 -40 to 175
MMJ65B0G00xx PDF product catalog 650 200 1.90 2.25 -30 to 30 5.20 6.60 1.7 10.20 9.70 -40 to 175
MMJ75B8F00xx PDF product catalog 750 275 1.30 1.60 -20 to 20 5.10 6.50 1.7 10.60 10.60 -40 to 175
MMJC550F00xx PDF product catalog 1250 50 1.65 1.95 -30 to 30 5.00 6.80 4.0 7.18 6.80 -40 to 175
MMJC575F00xx PDF product catalog 1250 75 1.65 1.95 -30 to 30 5.00 6.80 10.0 9.00 7.80 -40 to 175
MMJC5A0F00xx PDF product catalog 1250 100 1.65 1.95 -30 to 30 5.00 6.80 7.5 10.26 9.60 -40 to 175
MMJC5A5F00xx PDF product catalog 1250 150 1.65 1.95 -30 to 30 5.00 6.80 5.0 12.36 11.40 -40 to 175
MMJC5B0F00xx PDF product catalog 1250 200 1.65 1.95 -30 to 30 5.00 6.80 3.3 16.00 12.00 -40 to 175
MMJC050G00xx PDF product catalog 1200 50 1.95 2.30 -30 to 30 5.20 6.60 4.0 7.18 6.80 -40 to 175
MMJC075G00xx PDF product catalog 1200 75 1.95 2.30 -30 to 30 5.20 6.60 10.0 9.00 7.80 -40 to 175
MMJC0A0G00xx PDF product catalog 1200 100 1.95 2.30 -30 to 30 5.20 6.60 7.5 10.26 9.60 -40 to 175
MMJC0A5G00xx PDF product catalog 1200 150 1.95 2.30 -30 to 30 5.20 6.60 5.0 12.36 11.40 -40 to 175
MMJC0B0G00xx PDF product catalog 1200 200 1.95 2.30 -30 to 30 5.20 6.60 3.3 16.00 12.00 -40 to 175
MMJC050J00xx PDF product catalog 1200 50 1.70 2.05 -30 to 30 5.20 6.60 4.0 6.80 7.18 -40 to 175
MMJC075J00xx PDF product catalog 1200 75 1.70 2.05 -30 to 30 5.20 6.60 10.0 9.00 7.80 -40 to 175
MMJC0A0J00xx PDF product catalog 1200 100 1.70 2.05 -30 to 30 5.20 6.60 7.5 10.26 9.60 -40 to 175
MMJC0A5J00xx PDF product catalog 1200 150 1.70 2.05 -30 to 30 5.20 6.60 5.0 12.36 11.40 -40 to 175
MMJC0B0J00xx PDF product catalog 1200 200 1.70 2.05 -30 to 30 5.20 6.60 3.3 16.00 12.00 -40 to 175
