PSF13

Overview

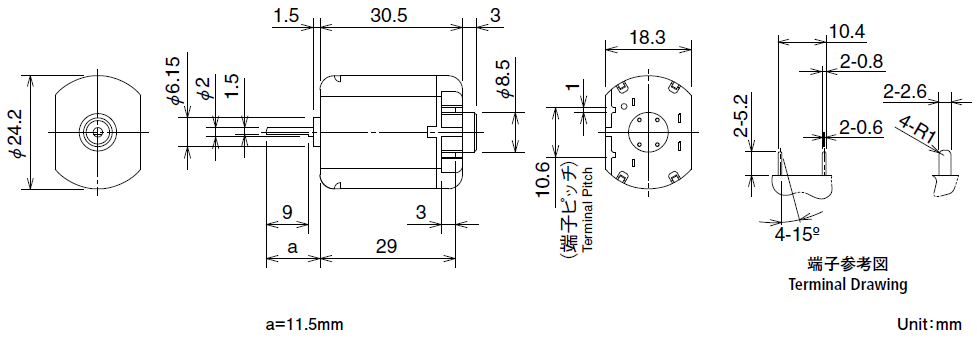

Shape : Flat
Shaft Length : a = 11.5mm

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Operating Voltage
    lower limit
    [V]

    Operating Voltage
    upper limit
    [V]

    Rated Voltage
    [V]

    No load speed
    [min-1]

    No Load Current
    [mA]

    Rated Load
    [gf･cm]

    Rated Load
    [mN・m]

    Rated Load Speed
    [min-1]

    Rated Load Current
    [mA]

    Starting Torque
    [gf･cm]

    Starting Torque
    [mN・m]

    Starting current
    [mA]

    Shaft Length
    [mm]

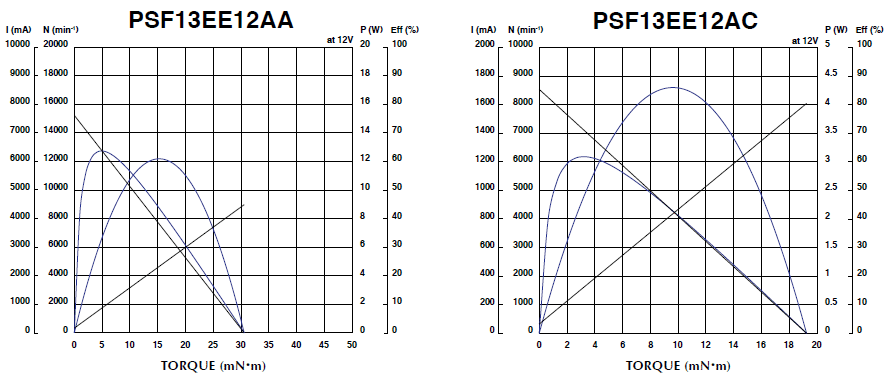

    PSF13EE12AA 9.0 14.5 12.0 15240 166.0 50.00 4.90 12797 859 312.00 30.60 4490 11.5
    PSF13EE12AC 9.0 16.0 12.0 8545 65.0 61.20 6.00 5880 546 196.00 19.20 1610 11.5
