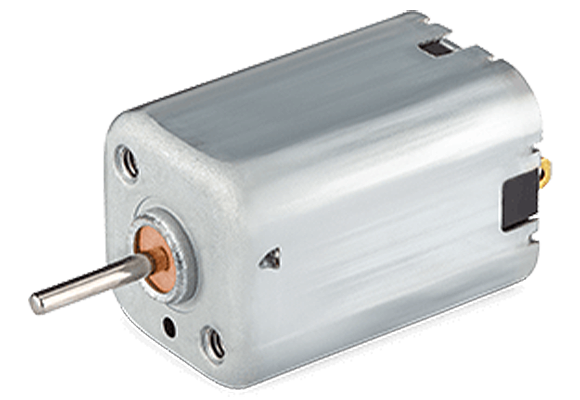

Standard type

Download

Product Catalog

Parts List
Engineering Information
Industry

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Shape	Outer Diameter [mm]	Height [mm]	Length [mm]	Shaft Diameter [mm]	Rated Voltage lower limit [V]	Rated Voltage upper limit [V]	No Load Speed lower limit [r/min]	No Load Speed upper limit [r/min]	PDF
PNN7	Flat	8.0	6.0	14.5	1.000	1.5	3.4	14183	22840	PDF
PNN13	Flat	8.0	6.0	20.0	1.000	3.0	3.0	12213	16426
PKN7	Flat	10.0	8.0	15.0	1.000	3.0	3.0	7787	15844	PDF
PKN12	Flat	10.0	8.0	20.0	1.000	3.0	4.5	10023	17560	PDF
M1N6	Flat	12.0	10.0	15.0	1.000	5.0	5.0	14100	15700	PDF
M1N10	Flat	12.0	10.0	20.0	1.000	5.0	5.0	8324	16040
PPN7	Flat	15.6	12.0	18.6	1.500	2.5	6.0	3050	14000	PDF
PPN13	Flat	16.1	12.0	26.5	1.500	5.0	7.4	7000	9100	PDF
PWN10A	Flat	20.4	15.4	25.0	2.000	6.0	6.0	13350	13350
PAN14(Female Terminal)	Flat	24.2	18.3	30.5	2.000	12.0	12.0	14974	14974
PAN14(Male Terminal)	Flat	24.2	18.3	30.5	2.000	24.0	24.0	12341	12341
PSF13	Flat	24.2	18.3	30.5	2.000	12.0	12.0	8545	15240	PDF
SE8F	Square	8.0		12.5	1.000	4.0	4.0	16035	16035	PDF
SE8G	Square	8.0		15.0	1.000	4.5	4.5	12500	12500	PDF
SE10G	Square	10.0		15.0	1.000	6.0	6.0	7703	11100
SE10J	Square	10.0		20.0	1.000	5.0	5.0	5506	9171
SR10M	Square	10.0		31.0	1.500	8.0	8.0	11650	11650
SE15H	Square	15.0		18.0	2.000	12.0	12.0	5315	10200	PDF
SE15K	Square	15.0		25.0	2.000	12.0	12.0	3935	6780
SE15M	Square	15.0		30.0	2.000	12.0	12.0	4320	8100	PDF
SE18J	Square	18.2		20.0	2.000	12.0	12.0	2985	5930
SE18K	Square	18.2		25.0	2.000	12.0	12.0	2550	4080
SE18M	Square	18.2		30.0	2.000	12.0	12.0	3025	4680
SR18M	Square	18.2		30.0	2.000	12.0	12.0	5000	7472
SE24M	Square	24.0		30.0	2.500	12.0	12.0	6433	6433	PDF
SE24P	Square	24.0		40.0	2.500	24.0	24.0	3274	7772	PDF
SV24A	Square	24.0		50.0	2.500	12.0	12.0	6438	6438
SV30R	Square	30.0		60.0	5.000	12.0	24.0	5231	6335	PDF
M22E-13	Round	22.0		18.0	2.000	3.5	3.5	6100	6100	PDF
M22E-14	Flat	22.0	18.5	26.0	2.000	3.6	3.6	9300	9300	PDF
M25N-1	Round	24.4		30.8	2.000	12.0	28.0	5500	16000	PDF
M25N-2	Round	25.6		30.8	2.000	31.0	31.0	11000	11000	PDF
M28N-3	Round	30.0		37.8	2.300	42.0	42.0	8400	11000	PDF
M36N-3E	Round	38.2		57.0	3.175	24.0	24.0	3300	3300	PDF
M36N-4E	Round	38.0		50.0	3.175	22.6	24.0	3900	10300	PDF
M36N-5E	Round	38.6		65.0	3.175	22.4	24.0	3100	3400	PDF
