SG18J, K, M

These models feature an integrated gearbox to deliver high torque at low speeds. For applications where a standalone DC motor provides insufficient torque, optimal specifications tailored to specific needs are available. Integrating the gearbox directly with the motor eliminates retrofitting labor and contributes to space-saving designs. The lineup features metal brush models for excellent startup responsiveness, alongside carbon brush models designed for an extended service life under high-voltage and high-current conditions.

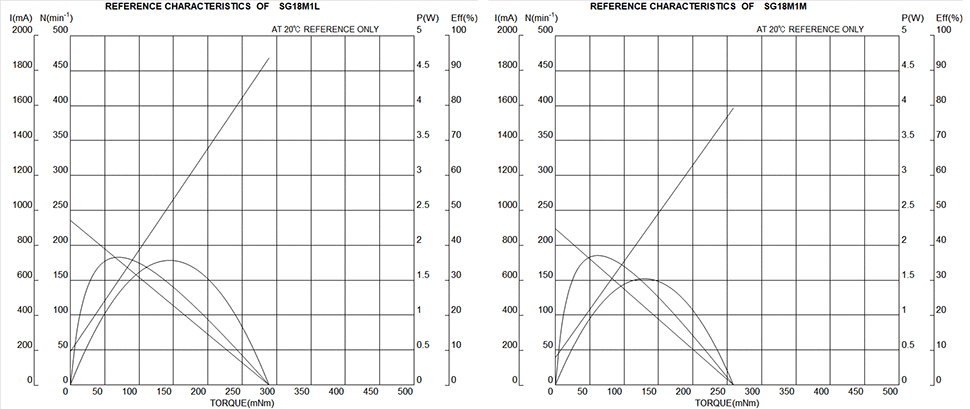

Applications, overall views, specifications, and performance curves for each model are detailed in the “Product Catalog".

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

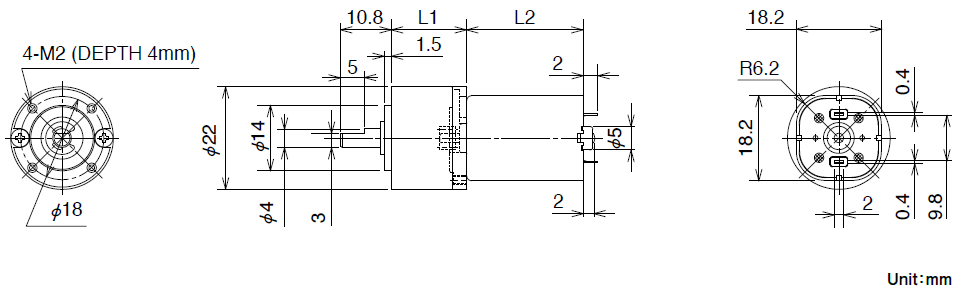

Model	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Max Rated Load Torque [gf･cm]	Max Rated Load Torque [mN・m]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Gear Ratio	Gear Step	Gear Box L1 [mm]	Motor L2 [mm]
SG18J1G	6.0	60	120.0	1020.40	100.00	50	300	60912.000	290.0	5969.39	585.00	2:04	3	19.3	20
SG18K1E	12.0	175	50.0	1020.40	100.00	130	305	44252.000	210.0	4336.73	425.00	1:24	2	16.2	25
SG18M1L	12.0	315	135.0	1020.40	100.00	250	525	48938.000	235.0	4795.92	470.00	1:16	2	16.2	30

The final appearance shape and characteristics need to be discussed.
Associated Data
- PDF product catalog
