This is a list of optional components compatible with our drivers. We offer a wide range of components, including cables connecting the motor and driver, as well as maintenance connectors.

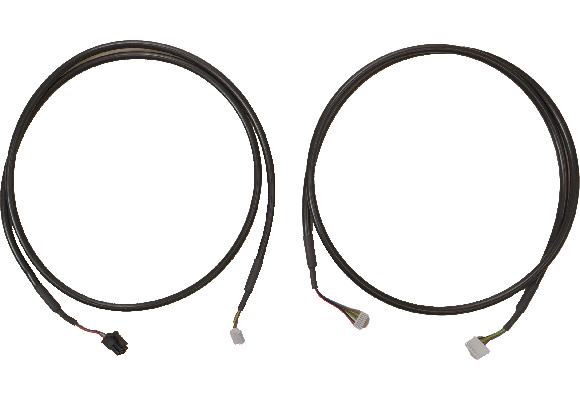

S series motor cables
Note: Cable is not included. Please purchase separately.
|
Product group |
Model |
Cable specifications |
Length |
Remarks |
|---|---|---|---|---|
| □28 (Model: M11~) |
2417-1703-10F01 | Movable cable (with shield) |
1m | High flex life specification |
| 2417-1703-10F03 | 3m | High flex life specification | ||
| 2417-1703-10F05 | 5m | High flex life specification | ||
| □42 (Model: M17~) |
2417-1703-17F01 | Movable cable (with shield) |
1m | High flex life specification |
| 2417-1703-17F03 | 3m | High flex life specification | ||
| 2417-1703-17F05 | 5m | High flex life specification | ||
| □56 (Model: M23~) |
2417-1703-23F01 | Movable cable (with shield) |
1m | High flex life specification |
| 2417-1703-23F03 | 3m | High flex life specification | ||
| 2417-1703-23F05 | 5m | High flex life specification |
S series encoder cables
Note: Cable is not included. Please purchase separately.
|
Product group |
Model |
Cable specifications |
Length |
Remarks |
|---|---|---|---|---|
| □28/42/56 common (Model: M11~, M17~, M23~ common) |
2417-1704-17F01 | Movable cable (with shield) |
1m | High flex life specification |
| 2417-1704-17F03 | 3m | High flex life specification | ||
| 2417-1704-17F05 | 5m | High flex life specification |
