Features
Communication is via a Modbus RTU driver.
Additionally, it supports I/O and pulse train operations.
See the specifications for details.

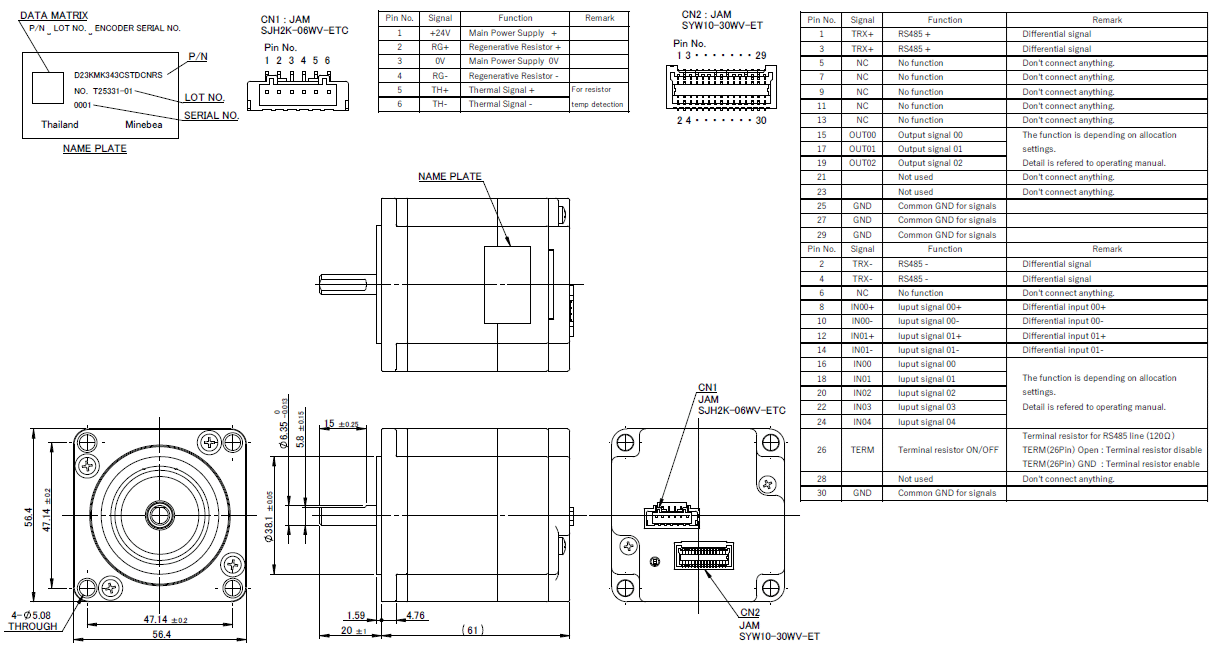

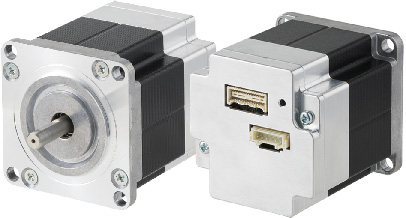

Specifications and Overall View
| Outer Diameter [mm] |
56.4 |
|---|---|
| Length [mm] |
61 |
| Input voltage | DC24V |
| Rated Current [A] |
3A average |
| Holding Torque [mN・m] |
387 |
| Rotor Inertia [g・cm2] |
180 |
| Detent Torque [mN・m] |
29.0 |
| Adaptive Load Inertia | Within about 1700gcm |
| Encoder Resolution [CPR] |
16384 |
| Communication | RS485 |
| Maximum number of drivers that can be connected | 15 |
| Pulse operation | ✔ |
| I/O operation | ✔ |
| Mass [g] |
660 |
□56

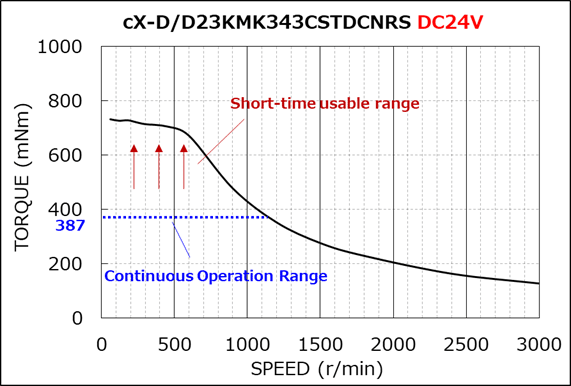

Torque/Speed Characteristics

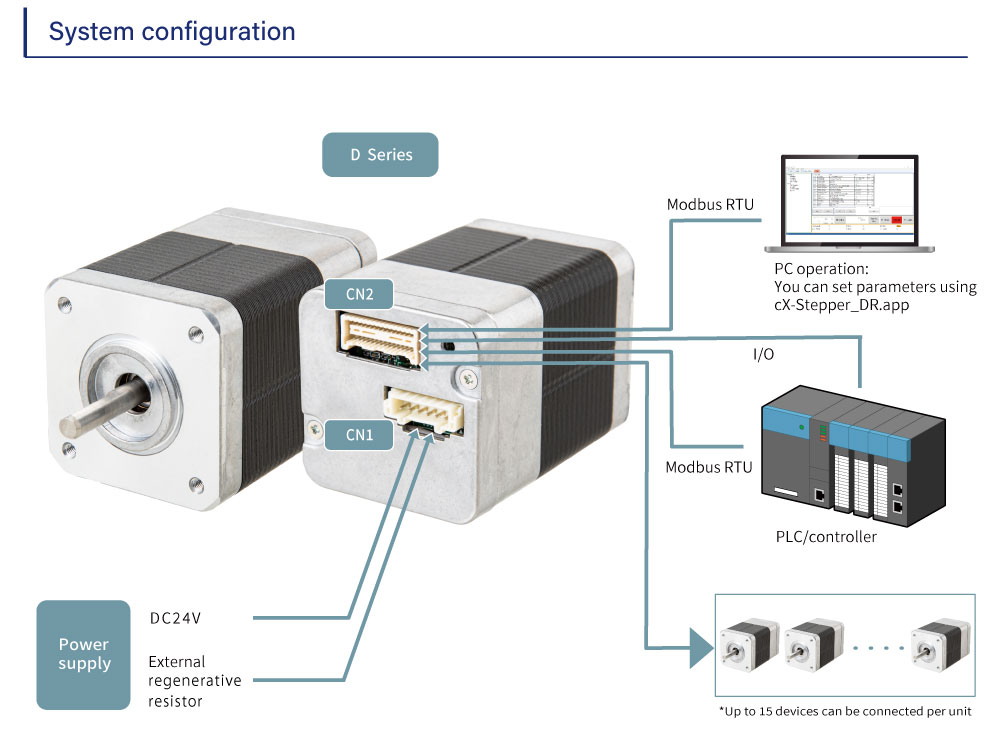

Connection Diagram
Download
