M1N10

Overview

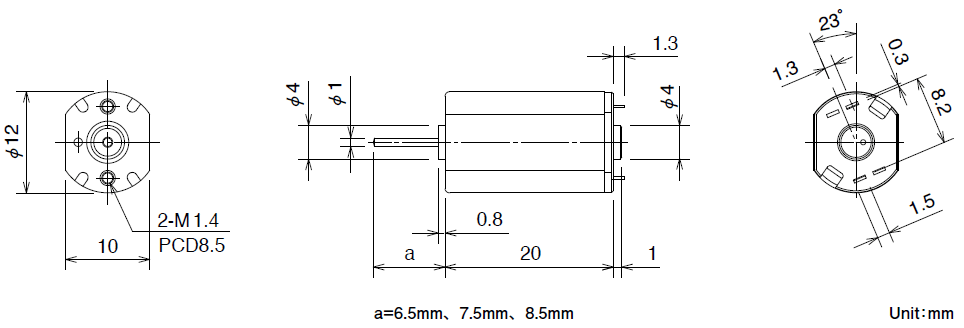

Shape : Flat
Shaft Length : a = 6.5mm, 8.5mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Starting current [mA]	Shaft Length [mm]
M1N10FB08G	1.0	6.0	5.0	8324	16.0	3.06	0.30	6114	78	11.60	1.14	249	8.5
M1N10FB09F	1.0	6.0	5.0	10822	23.0	3.06	0.30	8714	96	15.70	1.54	399	6.5
M1N10FB95G	1.0	6.0	5.0	10377	24.0	3.06	0.30	8547	93	17.40	1.70	420	8.5

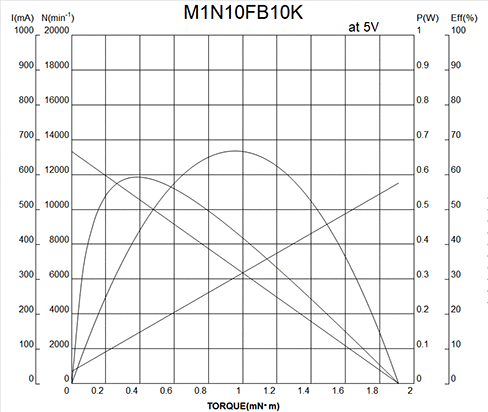

M1N10FB10K	1.0	6.0	5.0	13316	36.0	3.06	0.30	11200	120	19.50	1.91	575	7.5
M1N10FB11G	1.0	6.0	5.0	16040	36.0	3.06	0.30	13740	144	21.30	2.09	788	8.5
