M36N-5E

These standard brushed DC motors offer high versatility for general use. A wide variety of sizes and outputs are available, from small and thin profiles to high-torque applications, enabling optimal performance tuning for your specific use case. DC motors are selected based on size, application, standard load, and rotational speed. Additionally, a “Product Catalog” is available to aid in selection, featuring brushed DC motor structural diagrams, methods for reading performance curves, and factors causing performance changes.

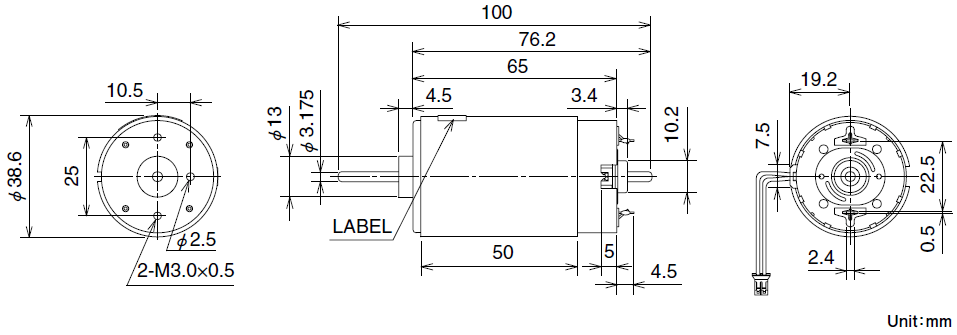

[Outer dimensions]
Round: 24 mm – 35.7 mm
Flat　 : 8 mm – 24.2 mm
Square (S series): 8 mm – 30 mm

scroll

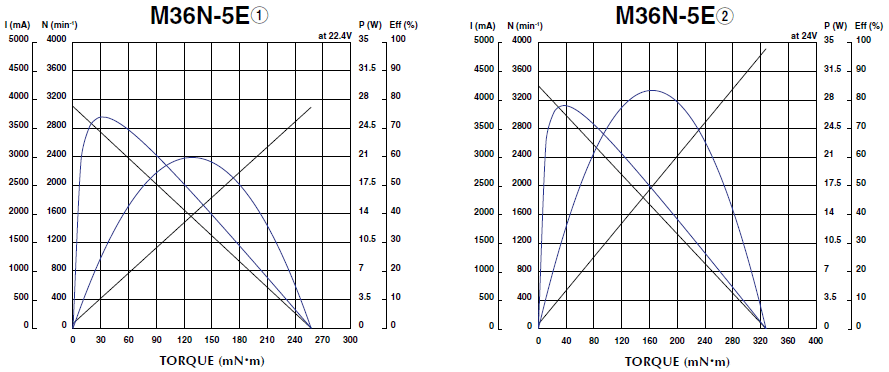

Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Starting current [mA]	Shaft Length [mm]
22.4	38.5	22.4	3100	60.0	561.20	55.00	2400	869	2637.80	258.50	3862	16.0

Associated Data
- PDF product catalog
