PKN12

Overview

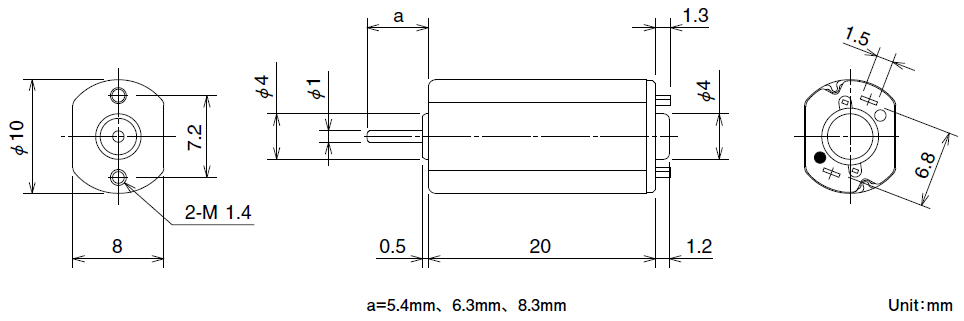

Shape : Flat
Shaft Length : a = 6.3mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

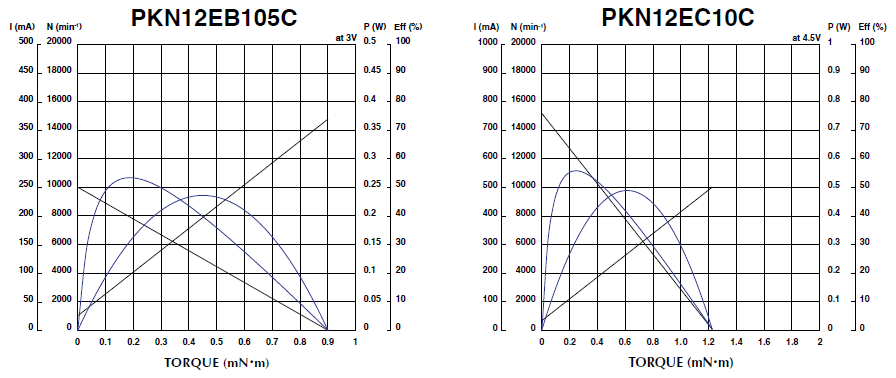

Model	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Starting current [mA]	Shaft Length [mm]
PKN12EB105C	1.0	4.0	3.0	10023	25.0	2.00	0.20	7796	102	9.20	0.90	370	5.4
PKN12EC10C	1.0	5.0	4.5	15140	31.0	2.00	0.20	12700	105	12.50	1.23	500	6.3
PKN12EB110E	1.0	5.0	4.5	17560	37.0	2.00	0.20	15300	130	15.50	1.52	711	8.3

Associated Data
- PDF product catalog
