PKN7

Overview

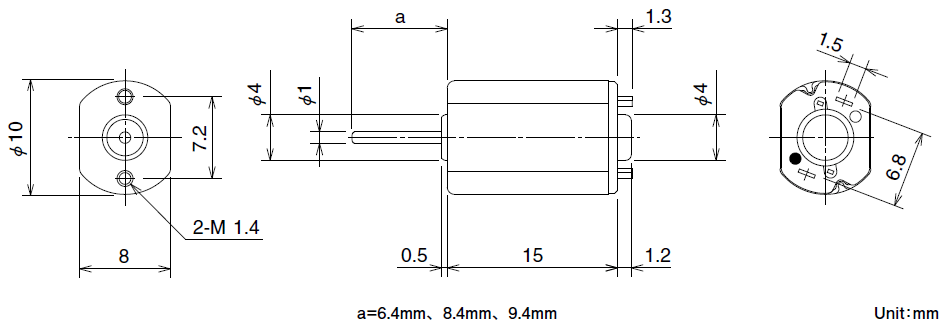

Shape : Flat
Shaft Length : a = 6.4mm, 8.4mm, 9.4mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

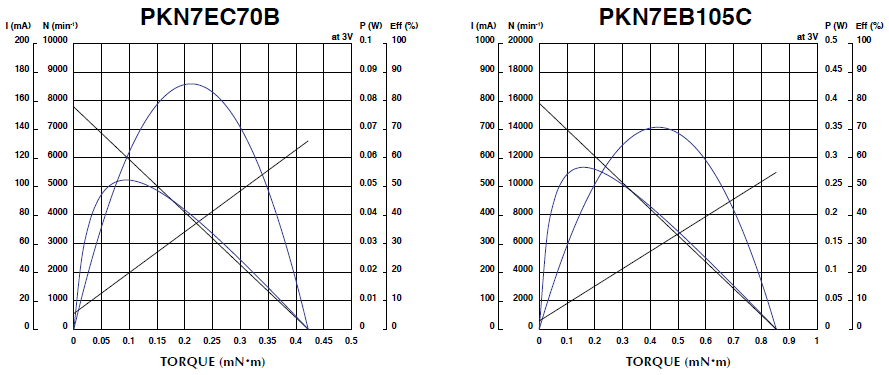

Model	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Starting current [mA]	Shaft Length [mm]
PKN7EC70B	1.0	4.0	3.0	7787	11.0	1.00	0.10	5920	40	4.30	0.42	132	6.4
PKN7EC85D	1.0	4.0	3.0	11231	18.0	1.00	0.10	9444	60	6.40	0.63	278	9.4
PKN7EC10C	1.0	4.0	3.0	15344	28.0	2.00	0.20	11430	143	8.00	0.78	479	8.4
PKN7EB105C	1.0	4.0	3.0	15844	29.0	2.00	0.20	12130	151	8.70	0.85	550	8.4
