PNN13

Overview

Shape : Flat

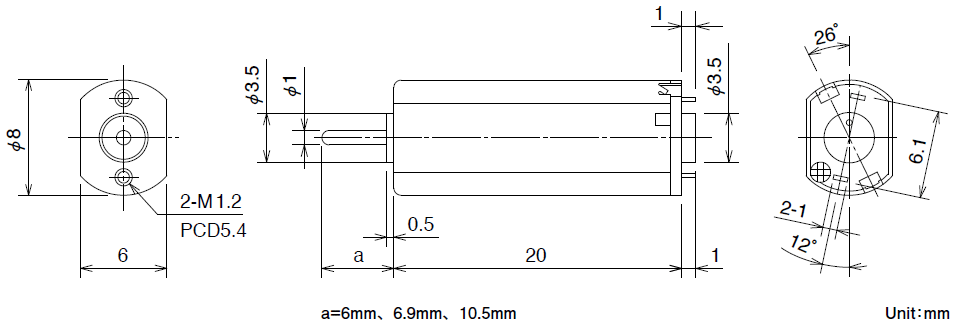

Shaft Length : a = 6.0mm, 6.9mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

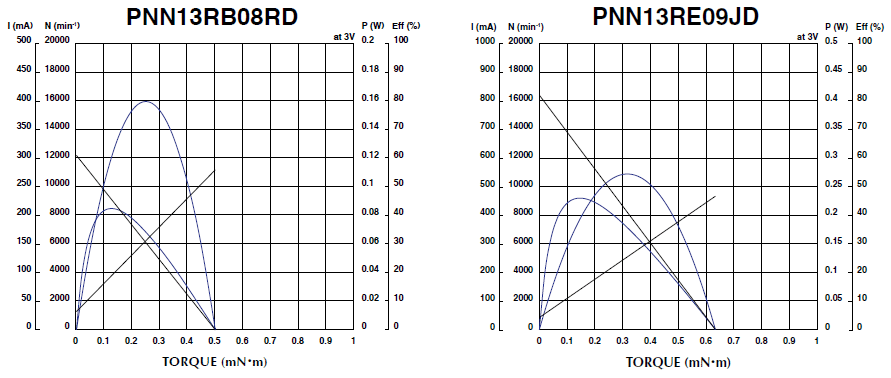

Model	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Starting current [mA]	Shaft Length [mm]
PNN13RB08RD	1.0	3.5	3.0	12213	32.0	1.50	0.15	8540	106	5.10	0.50	280	6.9
PNN13RE85HD	1.0	3.5	3.0	13950	34.0	1.50	0.15	10200	125	5.90	0.58	361	6.0
PNN13RE09JD	1.0	3.5	3.0	16426	42.0	1.50	0.15	12500	145	6.50	0.64	467	10.5
