PNN7

Overview

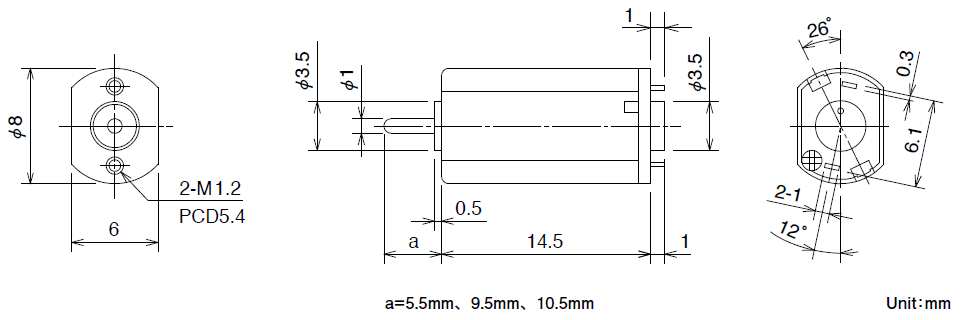

Shape : Flat
Shaft Length : a = 5.5mm, 10.5mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

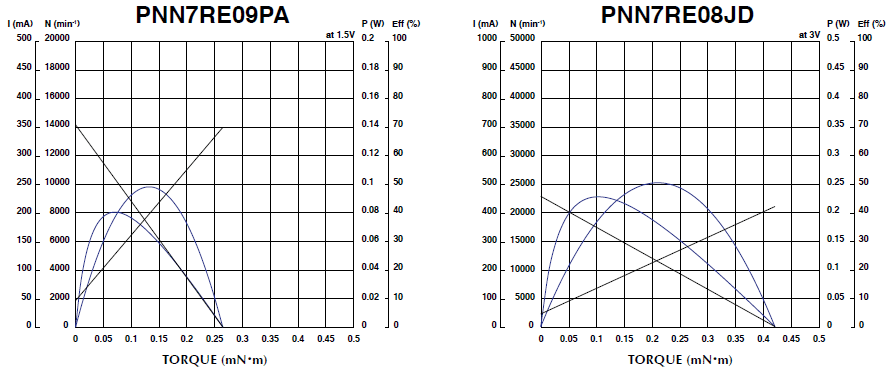

Model	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Starting current [mA]	Shaft Length [mm]
PNN7RE09PA	1.0	3.0	1.5	14183	48.0	0.70	0.07	10500	125	2.76	0.27	350	5.5
PNN7RE08JD	1.0	3.5	3.0	22840	44.0	1.02	0.10	17402	134	4.30	0.42	421	10.5
PNN7RB07C	1.0	4.5	3.4	19400	38.0	1.00	0.10	14700	104	4.20	0.41	315	9.5

Associated Data
- PDF product catalog
