PPN7

Overview

Shape : Flat

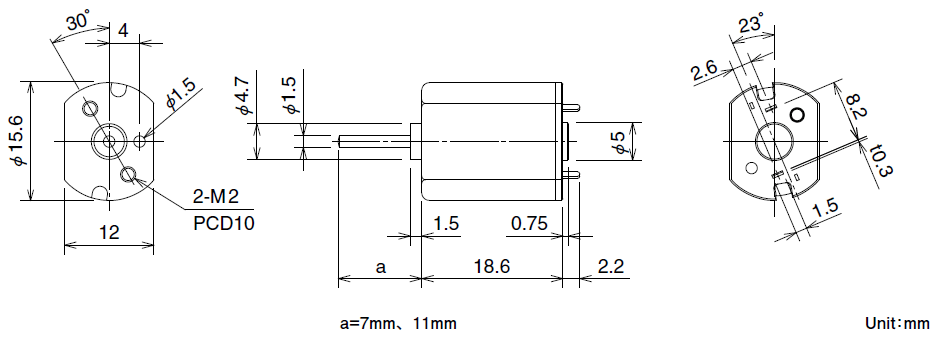

Shaft Length : a = 7mm, 11mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Starting current [mA]	Shaft Length [mm]
PPN7PA08B	2.0	7.0	2.5	3050	21.0	1.00	0.10	2600	35	6.90	0.68	118	7.0

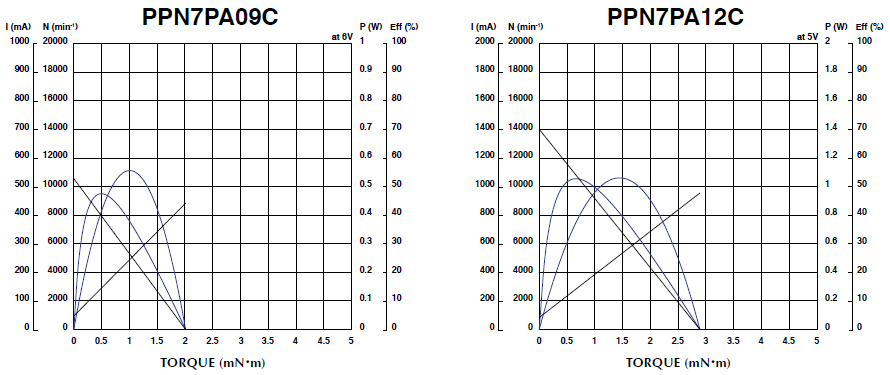

PPN7PA09C	2.0	7.0	6.0	10520	47.0	5.00	0.49	8000	144	20.50	2.01	443	11.0
PPN7PA10C	2.0	7.0	6.0	12000	47.0	5.00	0.49	9500	157	23.60	2.31	567	11.0
PPN7PA11B	2.0	7.0	5.0	12000	57.0	5.00	0.49	9400	191	22.70	2.22	673	7.0
PPN7PA12C	2.0	7.0	5.0	14000	84.0	5.00	0.49	11600	235	29.50	2.89	957	11.0

Associated Data
- PDF product catalog
