PWN10A

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Operating Voltage
    lower limit
    [V]

    Operating Voltage
    upper limit
    [V]

    Rated Voltage
    [V]

    No load speed
    [min-1]

    No Load Current
    [mA]

    Rated Load
    [gf･cm]

    Rated Load
    [mN・m]

    Rated Load Speed
    [min-1]

    Rated Load Current
    [mA]

    Starting Torque
    [gf･cm]

    Starting Torque
    [mN・m]

    Starting current
    [mA]

    Shaft Length
    [mm]

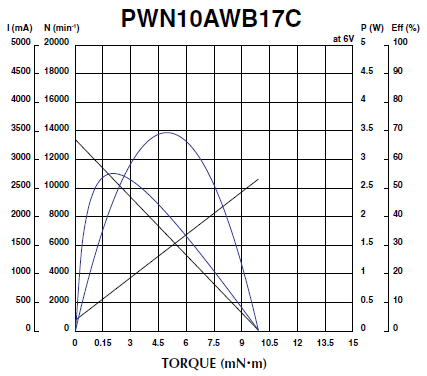

    PWN10AWB17C 2.0 6.5 6.0 13350 180.0 10.00 0.98 12000 430 99.00 9.70 2650 11.0
