SE18K

Overview

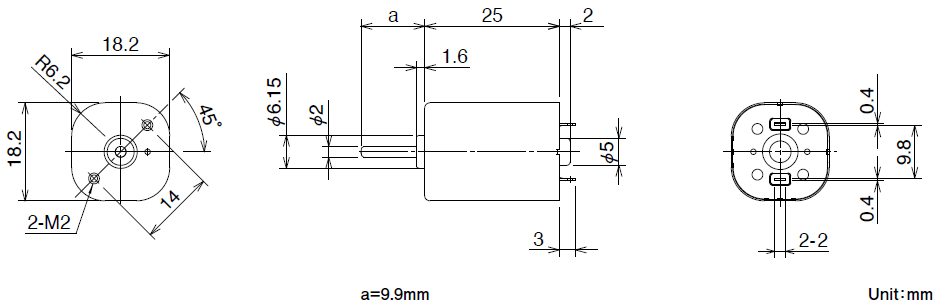

Shape : Square
Shaft Length : a = 9.9mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Starting current [mA]	Shaft Length [mm]
SE18K0WTY	8.0	13.0	12.0	2680	31.0	30.60	3.00	2190	125	166.00	16.30	412	9.9
SE18K1ETY	8.0	13.0	12.0	4300	55.0	51.00	5.00	3500	255	275.00	27.00	1135	9.9
