SG15H, K, M

These models feature an integrated gearbox to deliver high torque at low speeds. For applications where a standalone DC motor provides insufficient torque, optimal specifications tailored to specific needs are available. Integrating the gearbox directly with the motor eliminates retrofitting labor and contributes to space-saving designs. The lineup features metal brush models for excellent startup responsiveness, alongside carbon brush models designed for an extended service life under high-voltage and high-current conditions.

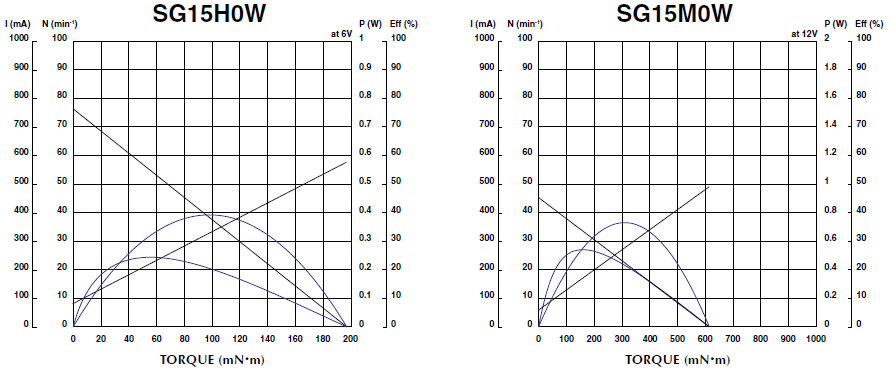

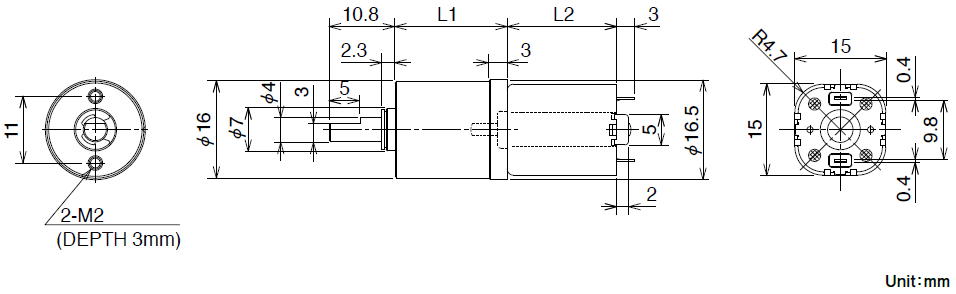

Applications, overall views, specifications, and performance curves for each model are detailed in the “Product Catalog".

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Model	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Max Rated Load Torque [gf･cm]	Max Rated Load Torque [mN・m]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Gear Ratio	Gear Step	Gear Box L1 [mm]	Motor L2 [mm]
SG15H0R	12.0	222	45.0	306.00	30.00	160	130	1020.000	100.0	1092.00	107.00	1:24	2	18.5	18
SG15M0V	12.0	158	40.0	510.00	50.00	110	150	1020.000	100.0	1622.00	159.00	1:24	2	18.5	30

The final appearance shape and characteristics need to be discussed.
Associated Data
- PDF product catalog
