M28N-3

These standard brushed DC motors offer high versatility for general use. A wide variety of sizes and outputs are available, from small and thin profiles to high-torque applications, enabling optimal performance tuning for your specific use case. DC motors are selected based on size, application, standard load, and rotational speed. Additionally, a “Product Catalog” is available to aid in selection, featuring brushed DC motor structural diagrams, methods for reading performance curves, and factors causing performance changes.

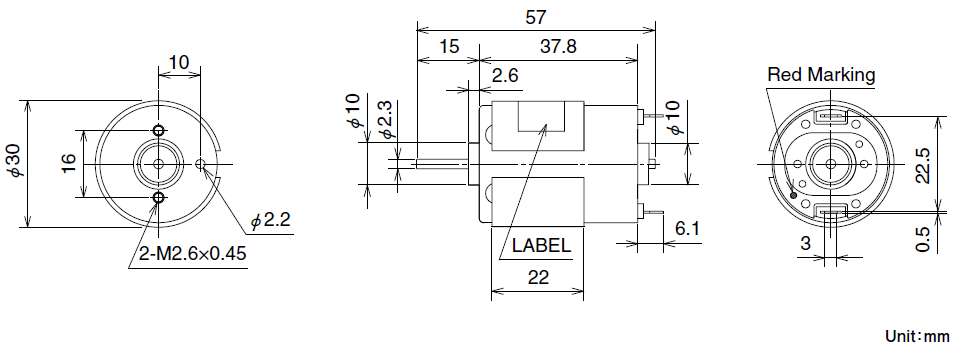

[Outer dimensions]
Round: 24 mm – 35.7 mm
Flat　 : 8 mm – 24.2 mm
Square (S series): 8 mm – 30 mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

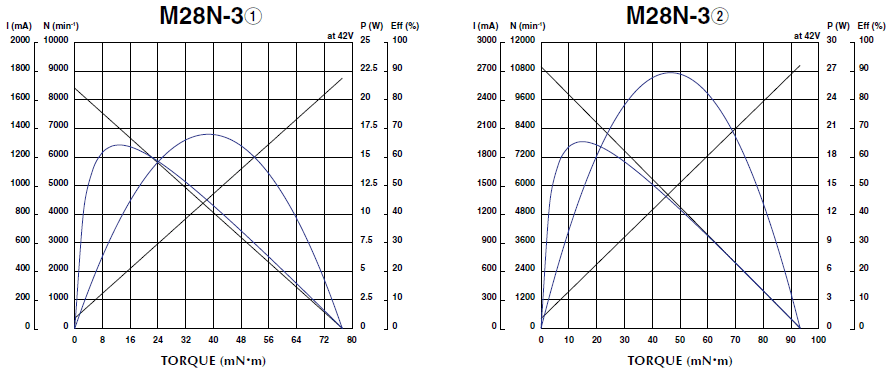

Model	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Starting current [mA]	Shaft Length [mm]
M28N-3①	12.0	42.0	42.0	8400	70.0	270.40	26.50	5513	647	786.73	77.10	1750	9.6
M28N-3②	21.6	26.4	24.0	5500	70.0	50.00	4.90	5000	200	561.22	55.00	1430	15.0

*Characteristics and the shaft length can be customized.
