M36N-4E

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Model

    Operating Voltage
    lower limit
    [V]

    Operating Voltage
    upper limit
    [V]

    Rated Voltage
    [V]

    No load speed
    [min-1]

    No Load Current
    [mA]

    Rated Load
    [gf･cm]

    Rated Load
    [mN・m]

    Rated Load Speed
    [min-1]

    Rated Load Current
    [mA]

    Starting Torque
    [gf･cm]

    Starting Torque
    [mN・m]

    Starting current
    [mA]

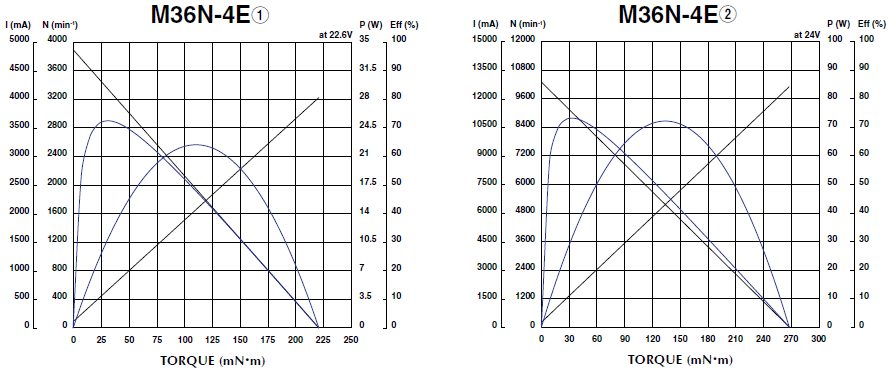

    M36N-4E① 12.0 26.4 22.6 3900 110.0 555.00 54.40 2935 1082 2243.00 220.00 4036
    M36N-4E② 12.0 28.0 24.0 10300 250.0 343.00 33.60 9100 1806 2729.00 267.00 12631

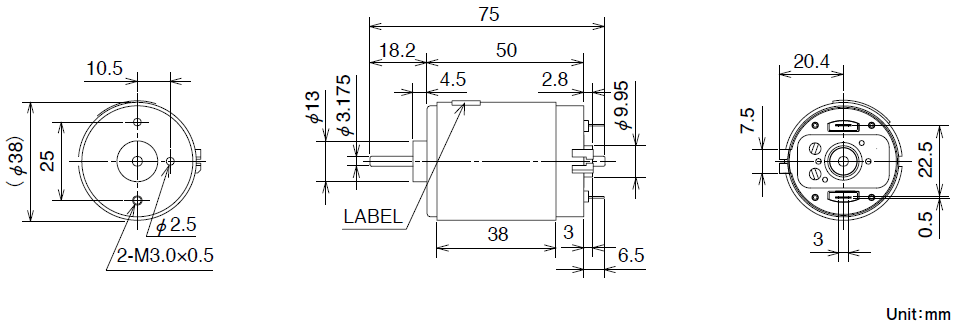

    *Characteristics and the shaft length can be customized.
