PPN13

These standard brushed DC motors offer high versatility for general use. A wide variety of sizes and outputs are available, from small and thin profiles to high-torque applications, enabling optimal performance tuning for your specific use case. DC motors are selected based on size, application, standard load, and rotational speed. Additionally, a “Product Catalog” is available to aid in selection, featuring brushed DC motor structural diagrams, methods for reading performance curves, and factors causing performance changes.

[Outer dimensions]
Round: 24 mm – 35.7 mm
Flat　 : 8 mm – 24.2 mm
Square (S series): 8 mm – 30 mm

Overview

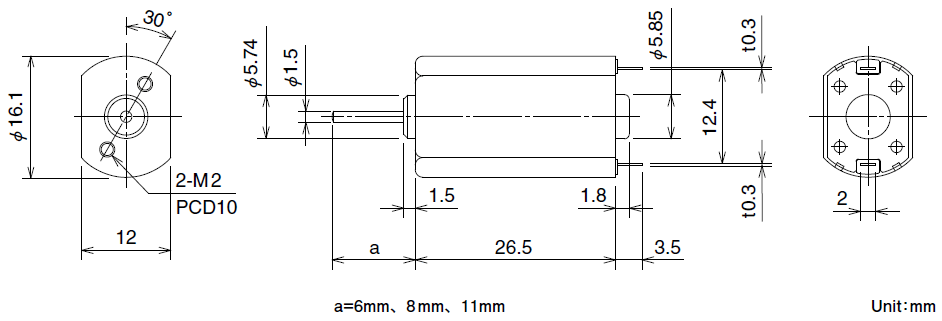

Shape : Flat
Shaft Length : a = 11mm

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

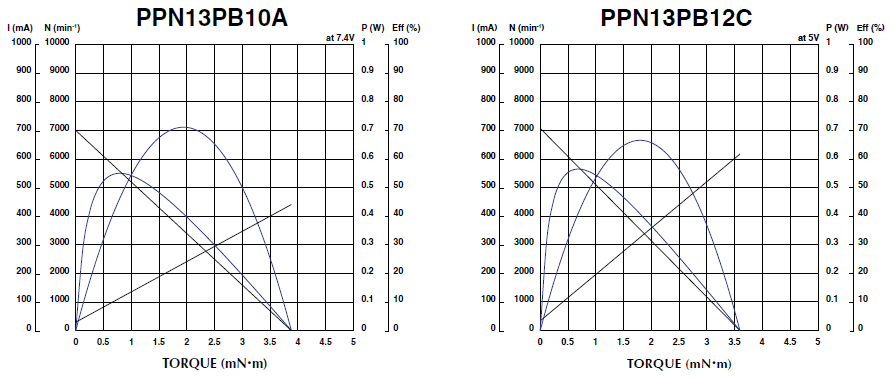

Model	Operating Voltage lower limit [V]	Operating Voltage upper limit [V]	Rated Voltage [V]	No load speed [min-1]	No Load Current [mA]	Rated Load [gf･cm]	Rated Load [mN・m]	Rated Load Speed [min-1]	Rated Load Current [mA]	Starting Torque [gf･cm]	Starting Torque [mN・m]	Starting current [mA]	Shaft Length [mm]
PPN13PB10A	2.0	9.0	7.4	7000	29.0	7.50	0.74	5650	108	39.60	3.88	442	6.0
PPN13PB11B	2.0	9.0	7.4	9100	34.0	7.50	0.74	7450	137	41.70	4.09	601	8.0
PPN13PB12C	2.0	9.0	5.0	7100	34.0	5.00	0.49	6100	114	36.60	3.59	618	11.0

Associated Data
- PDF product catalog
