Miniature & small ball bearings Deep groove ball bearings

6001X3

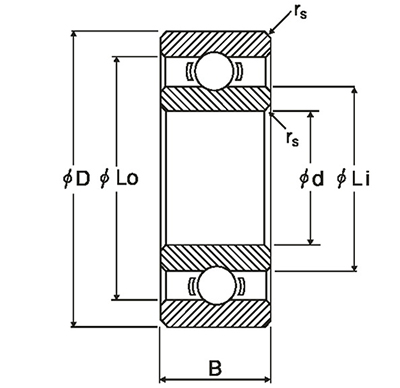

Outline

NMB Parts No. 6001X3
Metric or Inch Metric
ISO/JIS 6001
Material of Rings Chromium Steel
Ring Type [Radial] Standard
Inner Diameter
(d)
[mm]
12.000
Outer Diameter
(D)
[mm]
28.000
Width
(B)
[mm]
8.000
Chamfer
(rs min)
[mm]
0.300
Reference Diameter Outer
(Lo)
[mm]
25.050
Reference Diameter Inner
(Li)
[mm]
15.690
Ball Size
(DW)
[mm]
4.7625
Ball Complement
(Z)
8
Dynamic Load Rating
(Cr)
[N]
5098
Static Load Rating
(Cor)
[N]
2366
Inner Diameter
(d)
[in]
0.4724
Outer Diameter
(D)
[in]
1.1024
