Outline
NMB Parts No. | 6002X |
---|---|
Metric or Inch | Metric |
ISO/JIS | 6002 |
Material of Rings | Chromium Steel |
Ring Type | [Radial] Standard |

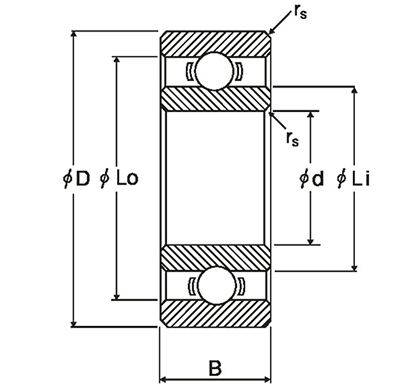

Inner Diameter (d) [mm] |
15.000 |
Outer Diameter (D) [mm] |
32.000 |
Width (B) [mm] |
9.000 |
Chamfer (rs min) [mm] |
0.300 |
Reference Diameter Outer (Lo) [mm] |
28.550 |
Reference Diameter Inner (Li) [mm] |
19.200 |
Ball Size (DW) [mm] |
4.7625 |
Ball Complement (Z) |
9 |
Dynamic Load Rating (Cr) [N] |
5591 |
Static Load Rating (Cor) [N] |
2842 |
Inner Diameter (d) [in] |
0.5906 |
Outer Diameter (D) [in] |
1.2598 |
